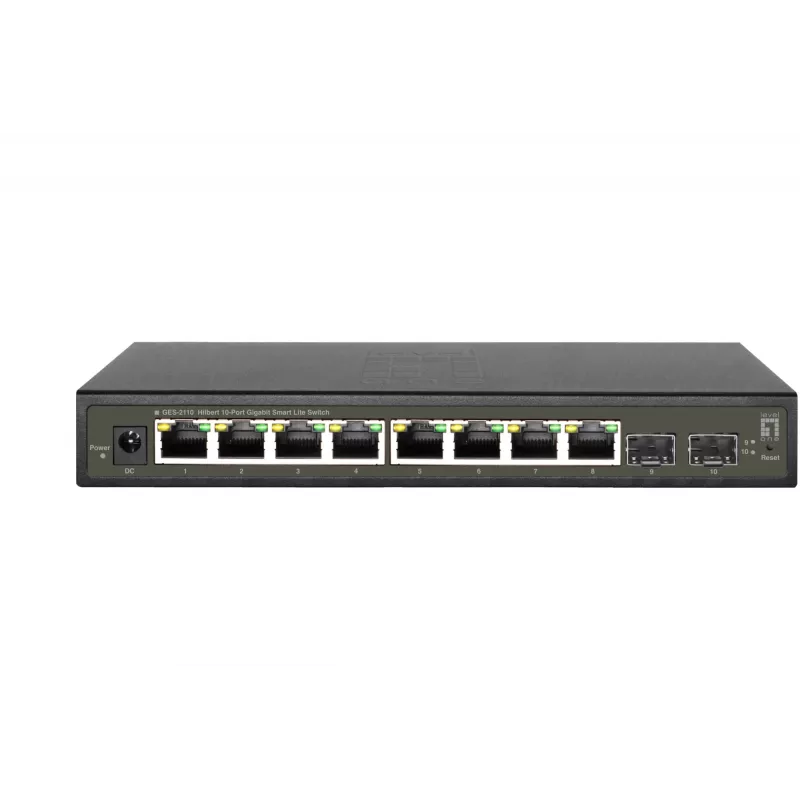

Managed Switch LevelOne Hilbert 10-Port Gigabit Smart Lite Switch

The LevelOne GES-2110 Hilbert 10-Port Gigabit Smart Lite Switch is a managed Layer 2 Ethernet switch with 8 Gigabit RJ45 ports and 2 Gigabit SFP ports. It offers a 20 Gbit/s switching capacity, an 8000-entry MAC address table and support for common IEEE standards, providing a compact and cost-effective solution for small and medium business networks that require fiber or copper connectivity.

Advantages

The GES-2110 combines managed switching features with simple discovery and administration via LevelOne IP Locator software, compatible with Windows and macOS. It supports full-duplex communication and energy-efficient Ethernet standards, delivers flexible interface options (RJ45 and SFP) and is designed to reduce total cost of ownership while maintaining reliable throughput and hardware performance.

Suitable for

• Small and medium business LANs
• Office networks requiring a mix of copper (RJ45) and fiber (SFP) connections
• Edge or access layer deployments in enterprise networks
• Environments needing managed L2 features with simple discovery and administration

Key specifications

• Ports: 8 x 10/100/1000 RJ45, 2 x Gigabit SFP
• Switching capacity: 20 Gbit/s
• MAC address table: 8000 entries
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1p, 802.1Q, 802.3az
• Switch type: Managed Layer 2
• Power input: 12 V DC
• Colour: Black
• Weight: 0.7 kg

How to use

Install the switch in a well-ventilated location and connect power using the supplied 12 V DC adapter. Connect RJ45 copper cables to the Gigabit Ethernet ports or insert compatible SFP modules into the SFP slots for fiber links. Use LevelOne IP Locator to discover the device on the network, obtain its IP address and access the management interface for VLANs, QoS and other Layer 2 settings. Follow standard network cabling and grounding practices when integrating the switch into your topology.

Recommendations

For reliable operation, use proper SFP transceivers rated for the intended fiber type and distance, keep firmware up to date, and place the switch in an environment within the manufacturer's recommended temperature and humidity ranges. Consider configuring VLANs and QoS to segment traffic and prioritise critical services.
