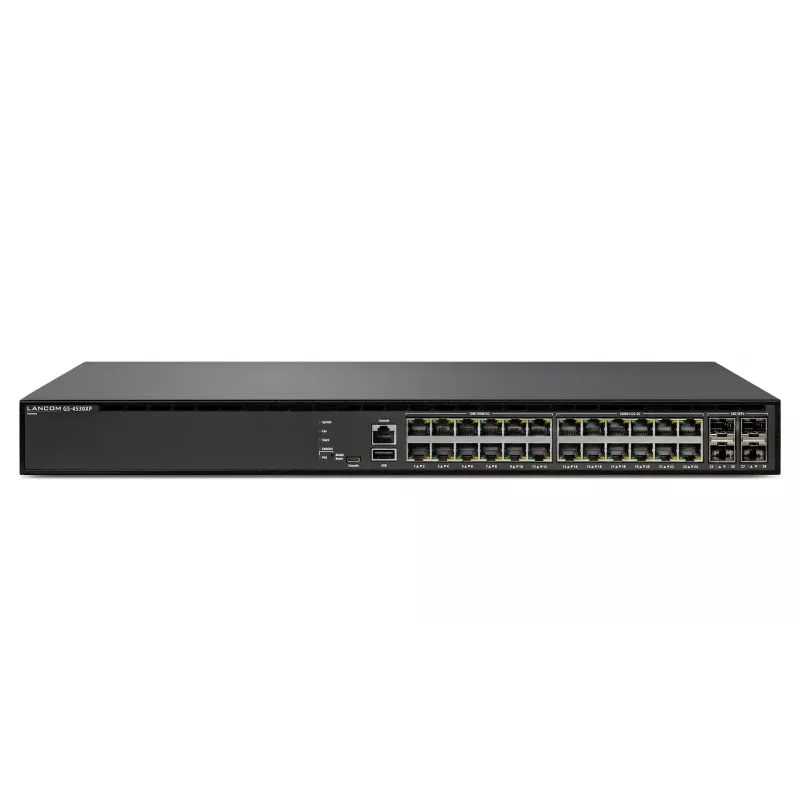

Managed switch Lancom Systems GS-4530XP L3 2.5G Ethernet 30 θύρες PoE

The LANCOM GS-4530XP is a managed Layer 3 switch designed for high-performance network infrastructures. It provides 30 Ethernet ports including 12 multi‑Gigabit 2.5G PoE+ ports and 12 Gigabit PoE+ ports, plus 4 SFP+ and 2 QSFP+ FleX ports for 10 Gbps and 40 Gbps uplinks. With a backplane throughput of 324 Gbps and a MAC table capacity of 32,000 entries, the GS-4530XP delivers wirespeed switching and routing for demanding enterprise deployments.

Advantages

The switch integrates PoE and multi‑Gigabit access in a single device, enabling direct connection and power supply of up to 24 PoE devices with a total PoE budget of 720 W. It supports full Layer 3 with policy‑based dynamic routing (OSPF), hardware redundancy via hot‑swappable power supplies and N+1 fans, and front‑to‑back cooling for rack environments. Additional features include LANCOM fail‑safe stacking for up to eight units, cloud management via LANCOM Management Cloud, and support for secure remote management protocols (SSH, SSL, SNMPv3, TACACS+).

Suitable for

• Enterprise campus and branch LANs requiring high port density and PoE
• Deployments with Wi‑Fi 6 access points that need 2.5G uplinks
• Multi‑site or meshed networks using OSPF and stacked switches
• Environments needing centralized PoE power without extra electrical installation

Key specifications

• Ports: 12 x 2.5G PoE+ RJ‑45, 12 x 1G PoE+ RJ‑45, 4 x SFP+, 2 x QSFP+ FleX
• Backplane throughput: 324 Gbps
• PoE standards: IEEE 802.3af, IEEE 802.3at (up to 30 W per port); total PoE budget 720 W
• Layer: Full Layer 3 with OSPF routing
• MAC table: 32,000 entries
• Stacking: LANCOM fail‑safe stacking up to 8 switches (front SFP+ and rear QSFP+ FleX)
• Redundancy: Hot‑swappable PSU, optional second PSU, redundant (N+1) fan concept
• Management: LANCOM Management Cloud, SSH, SSL, SNMPv3, TACACS+
• Weight: 5.5 kg
• Color: Black

How to use

Install the GS-4530XP in a 19" rack using the front‑to‑back airflow orientation. Connect access devices to the 2.5G and Gigabit PoE ports; PoE devices will receive power automatically according to IEEE 802.3af/at. Use the SFP+ and QSFP+ FleX ports for uplinks or stacking to aggregation switches. For cloud management, register the device in the LANCOM Management Cloud to apply configurations, VLANs and firmware updates centrally. For local configuration and troubleshooting, use the web interface or secure remote protocols (SSH, SNMPv3).

Recommendations

For Wi‑Fi 6 deployments, connect each access point to a 2.5G PoE+ port to avoid uplink bottlenecks. When high availability is required, install a second hot‑swappable PSU and enable stacking across sites to allow hitless failover and centralized management.
