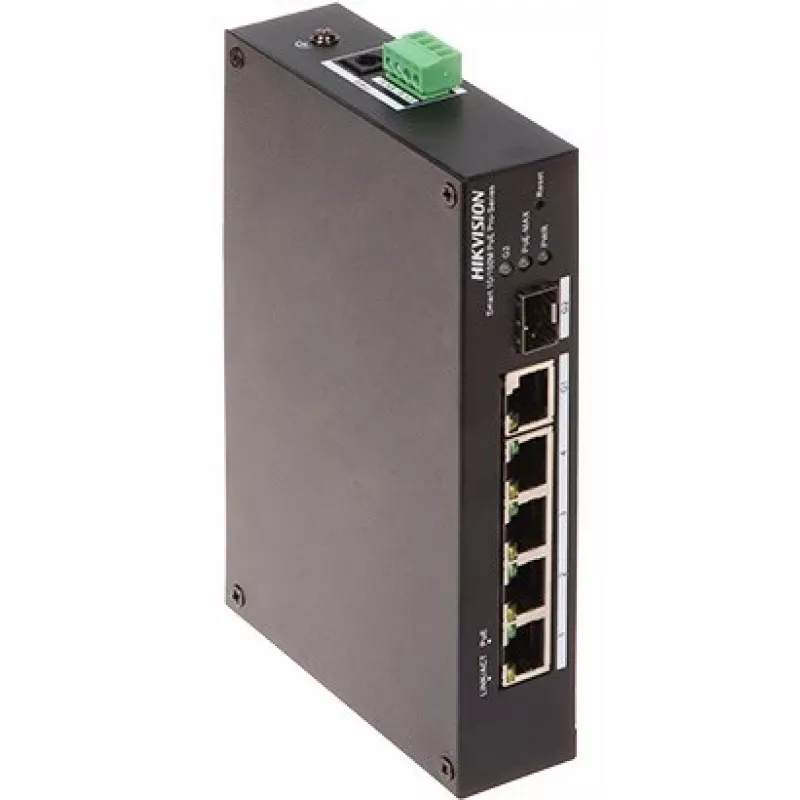

Managed switch Hikvision DS-3T1306P-SI/HS L2 PoE 5 θύρες 10/100

The Hikvision DS-3T1306P-SI/HS is a managed L2 Fast Ethernet switch with five 10/100 Mbps RJ-45 ports and Power over Ethernet (PoE) support. Designed for surveillance and small network deployments, it provides full-duplex switching, a MAC address table of 2000 entries and a switching capacity of 4.8 Gbit/s. The switch supports common IEEE networking standards and offers centralized management and monitoring through Hikvision software platforms for easier deployment and maintenance.

Advantages

The switch combines managed L2 features with PoE capability to power devices such as IP cameras and access points directly over Ethernet cabling. Its management features let you view network topology, monitor device and link status, and receive real-time alarms, which simplifies troubleshooting and reduces operational overhead. Compact form factor and standard Fast Ethernet connectivity make it suitable for small or distributed installations.

Suitable for

• Small surveillance systems with PoE IP cameras
• Small offices or retail sites requiring centralised management
• Edge deployments where compact, powered Ethernet is needed

Key specifications

• Model: DS-3T1306P-SI/HS
• Switch type: Managed L2
• Ports: 5 x Fast Ethernet (10/100) RJ-45
• PoE: Supported (IEEE 802.3af/at)
• Switching capacity: 4.8 Gbit/s
• MAC address table: 2000 entries
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af, 802.3at
• Colour: Black
• Weight: 0.4 kg

How to use

Install the switch on a stable surface or in a small rack close to power and network cabling. Connect IP cameras or other PoE devices to the RJ-45 ports; devices compatible with IEEE 802.3af/at will receive power automatically. Use the management software provided by Hikvision to add the switch to your monitoring platform, visualise network topology, configure VLANs and QoS, and set up alarms and notifications. For non-PoE devices, connect them to the remaining Ethernet ports and configure settings as needed through the management interface.

Recommendations

Place the switch in a ventilated, dust-free environment and ensure firmware is kept up to date via Hikvision management tools. Verify PoE budget and connected device power requirements before deployment to avoid overloading PoE ports.
