Managed Switch ALLNET 112534 L2 Gigabit Ethernet 16 θύρες 19U μαύρο

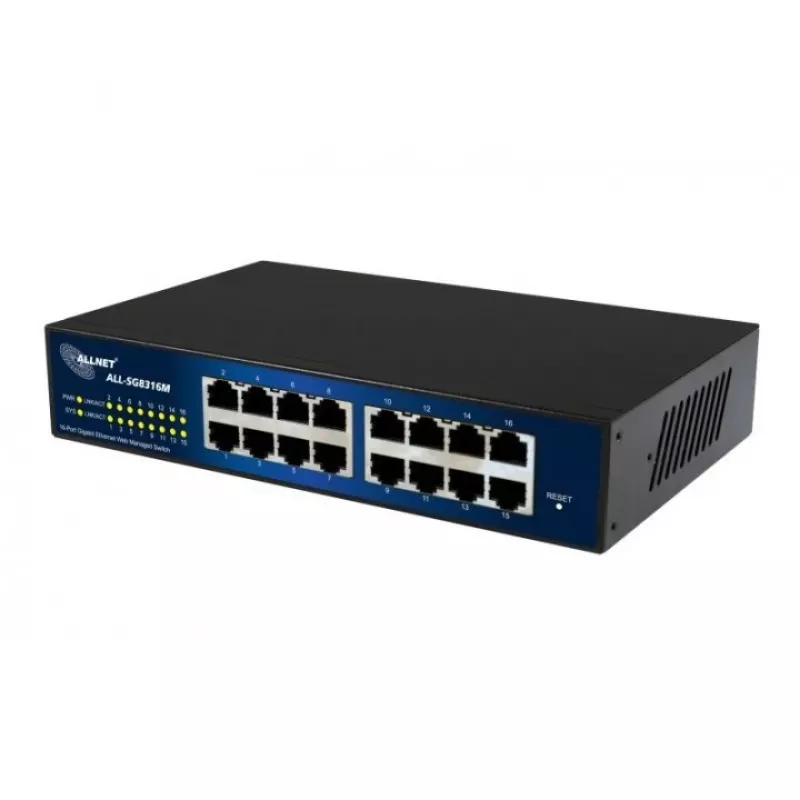

The ALLNET ALL-SG8316M is a managed Layer 2 Gigabit Ethernet switch with 16 RJ-45 ports supporting 10/100/1000 Mbps and auto‑negotiation for half/full duplex. It offers a 32 Gbit/s switching capacity, an 8000 entry MAC address table and complies with common IEEE standards for reliable small and medium business network deployments. The unit is fanless, available with 10/19" brackets or wall‑mount option, and provides web, CLI and SNMP management interfaces for flexible administration.

Advantages

This switch delivers non‑blocking gigabit performance across 16 ports while keeping noise to a minimum due to its fanless design. It integrates Layer 2 features such as VLAN (802.1Q), Link Aggregation (LACP & static trunk), IGMP snooping and advanced QoS for prioritising voice, video and data. Security and traffic control are handled via IP‑MAC‑Port‑VID binding, port security, ACLs (L2–L4) and storm control. Management is available through an intuitive web GUI, CLI and SNMP (v1/2).

Suitable for

• Small and medium business access or edge switch deployment
• Workgroups requiring gigabit connectivity for voice, video and data

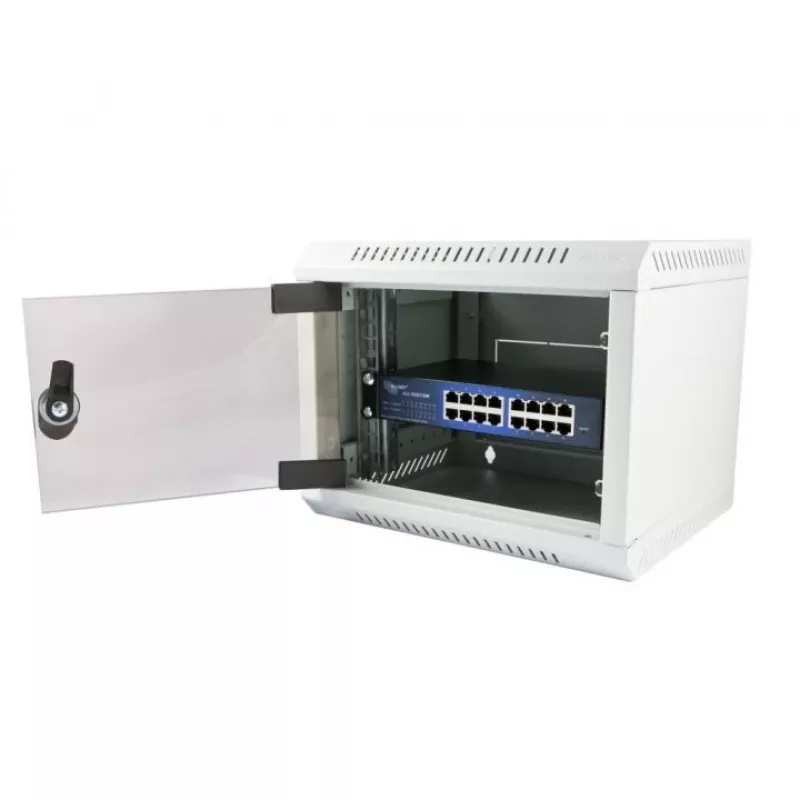

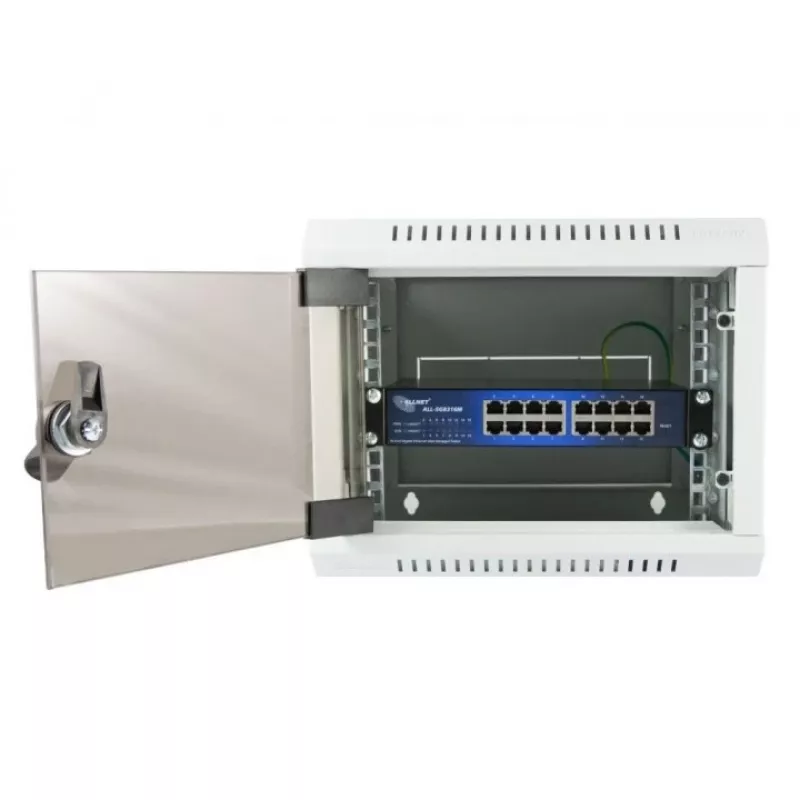

• Rack or wall installations in 19" or wall‑mount environments

Key specifications

• Ports: 16 × Gigabit Ethernet (10/100/1000) RJ‑45
• Switching capacity: 32 Gbit/s
• MAC table: 8000 entries
• Standards: IEEE 802.1w, 802.3x, 802.3u, 802.3az, 802.3ad, 802.3ab, 802.3, 802.1ab, 802.1Q, 802.1D
• Layer 2 features: VLAN (static/port/tagged), STP/RSTP, IGMP snooping (v1/v2/v3), Link Aggregation (LACP & static)
• QoS: 8 priority queues, 802.1p, IP TOS/DSCP, rate limiting
• Security: IP‑MAC‑Port‑VID binding, port security, ACL (L2–L4), storm control
• Management: Web GUI (HTTPS supported), CLI, SNMP v1/2

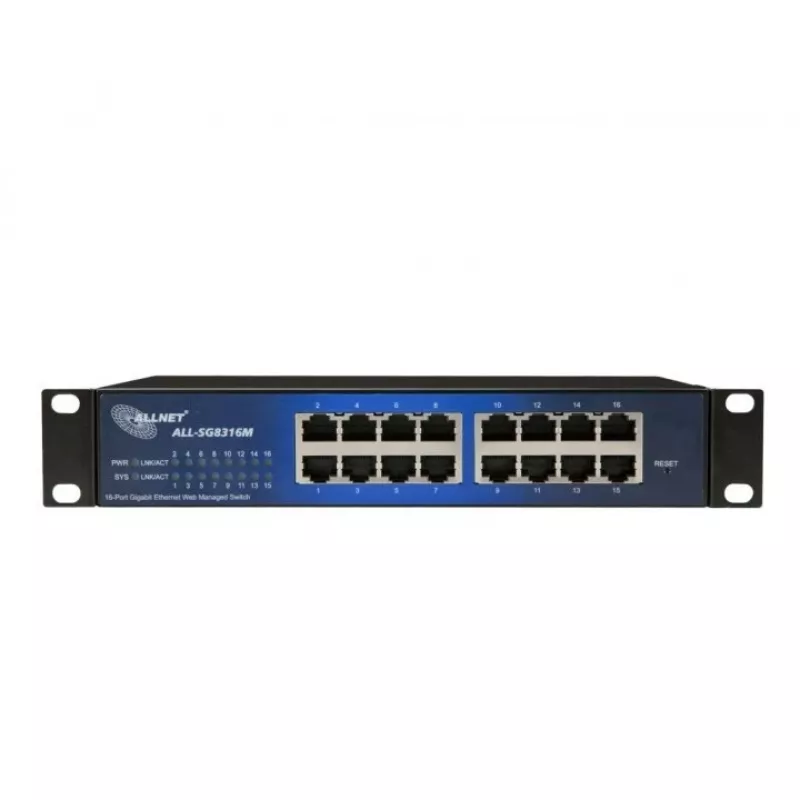

• Form factor: 10/19" rack brackets or wall‑mount option; fanless

How to use

Install the switch in a suitable rack or mount it on the wall using the supplied brackets. Connect network devices to the RJ‑45 ports and rely on auto‑negotiation for link speed and duplex. Use the web GUI, CLI or SNMP to configure VLANs, link aggregation, QoS and security policies. Enable IGMP snooping for multicast traffic management and configure ACLs or IP‑MAC‑Port‑VID bindings to restrict access to sensitive resources.

Recommendations

For optimal performance in mixed voice, video and data networks, configure QoS rules and Voice VLAN to prioritise real‑time traffic. Use link aggregation for uplink redundancy and higher throughput, and enable storm control and ACLs to protect against broadcast storms and unauthorized access. Regularly back up the switch configuration and monitor via SNMP for timely alerts on abnormal events.
