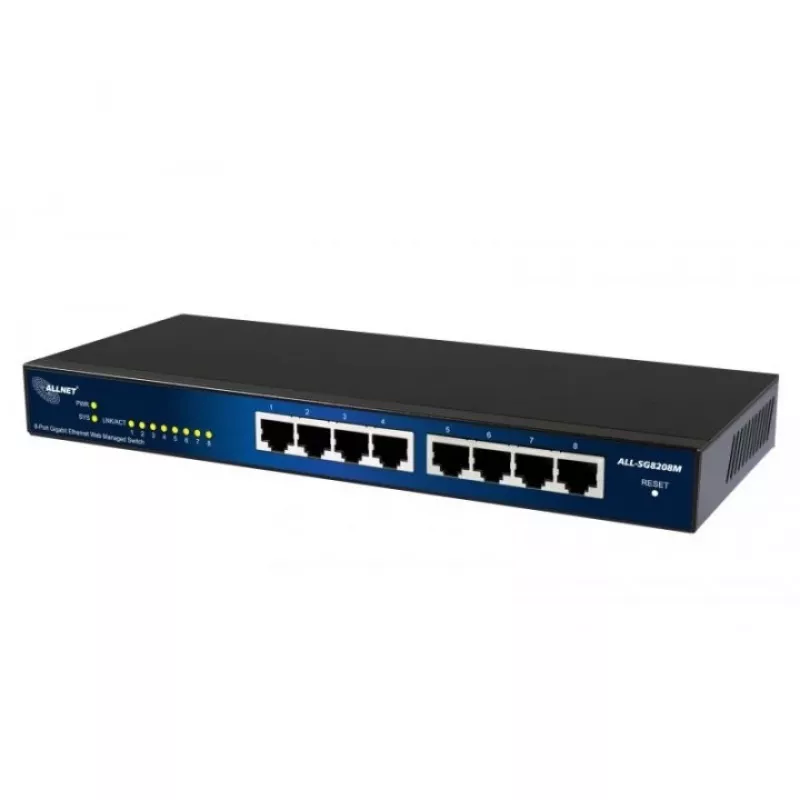

Managed Switch ALLNET 112533

The ALLNET 112533 (ALL-SG8208M) is a managed Layer 2 Gigabit Ethernet switch with 8x 10/100/1000 Mbps RJ-45 ports, full-duplex capability and a switching capacity of 32 Gbit/s. Designed for small and medium business access-edge deployments, it supports common IEEE networking standards and offers wall-mounting and fanless operation for quiet, space-saving installation.

Advantages

This managed switch delivers non-blocking Gigabit performance across eight ports and includes advanced Layer 2 functions such as 802.1Q VLAN tagging, Link Aggregation (static and LACP), IGMP snooping and QoS (port-based, 802.1p, IP TOS/DSCP). It provides security and reliability features including ACLs (L2–L4), IP-MAC-Port-VID binding, port security, storm control and basic DoS protection. Management is flexible via web GUI, CLI and SNMP (v1/2), with HTTPS support for protected administration.

Suitable for (tasks / use cases)

• Small and medium business access edge where Gigabit ports are required
• Voice, video and data convergence with QoS and Voice VLAN support
• Departmental networks requiring VLANs, link aggregation and IGMP snooping
• Environments needing quiet, wall-mounted fanless switches

Key specifications

• Ports: 8 x 10/100/1000 Mbps RJ-45
• Switching capacity: 32 Gbit/s
• MAC address table: 8000 entries
• Supported standards: IEEE 802.1D/Q/ab/p, IEEE 802.3/3u/3ab/3ad/3az/3x
• VLAN: 802.1Q tag, up to 64 static/port-based/tagged
• Link aggregation: IEEE 802.3ad LACP and static trunk
• IGMP snooping: v1/v2/v3 with throttling and filtering
• QoS: port-based, 802.1p, IP TOS, DSCP, 8 priority queues
• Security: ACL L2–L4, IP-MAC-Port-VID binding, port security, storm control
• Form factor: fanless, wall-mountable
• Colour: Black

How to use

Install the ALLNET 112533 on a wall or flat surface and connect devices to the RJ-45 Gigabit ports. Use the web-based GUI, CLI or SNMP to configure basic settings such as VLANs, link aggregation and QoS priorities. Enable security functions (ACLs, port security, IP-MAC-Port-VID binding and storm control) to restrict unauthorized access and reduce broadcast storms. For multicast deployments, enable IGMP snooping and configure filtering per port as needed.

Recommendations

Place the switch in a well-ventilated indoor location even though it is fanless, and back up configuration settings after initial setup. Use HTTPS for management access and limit SNMP/CLI access to trusted management hosts. When deploying voice or video, assign appropriate QoS priorities and, if needed, configure Voice VLAN to ensure stable latency and jitter control.
