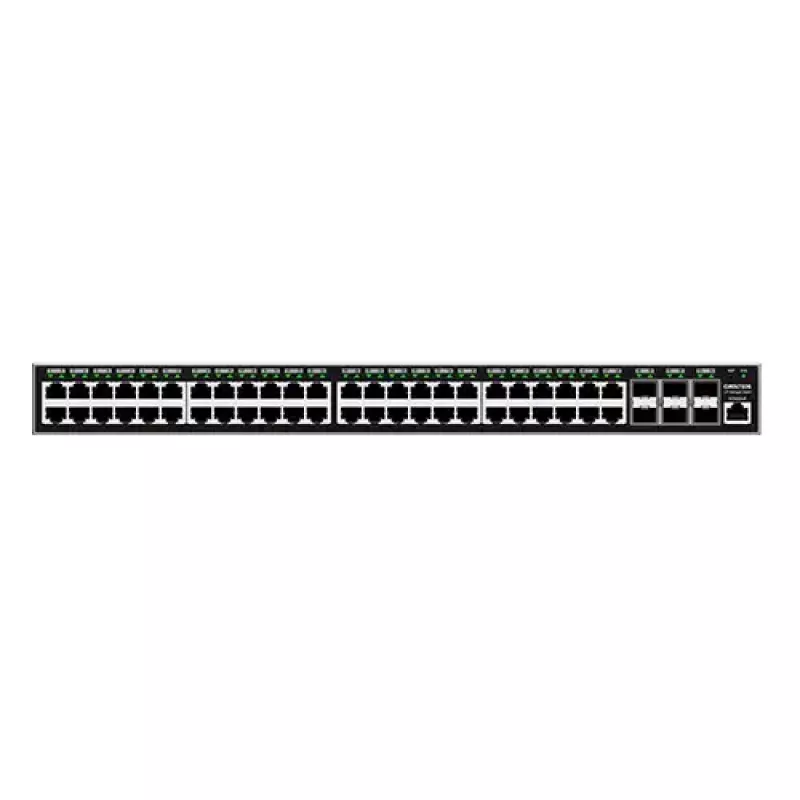

Managed L2+ Gigabit Ethernet Switch Grandstream GWN7806P

The Grandstream GWN7806P is a managed L2+ Gigabit Ethernet switch with 48 Gigabit RJ‑45 ports and Power over Ethernet (PoE) capability, designed for small-to-medium enterprise networks. It provides a 32,000‑entry MAC address table and a switching capacity of 216 Gbit/s while supporting common networking standards such as IEEE 802.1Q VLANs, 802.1p QoS, 802.1x security, and IEEE 802.3 Ethernet variants for interoperable, high‑performance connectivity.

Advantages

The GWN7806P combines full L2+ managed features with PoE support and a high switching capacity to enable scalable, centrally managed business networks. Multiple management options are available: cloud management via GWN.Cloud for remote monitoring and configuration, on‑premises management with GWN Manager for private deployments, and a built‑in embedded controller for automatic discovery and provisioning. These options simplify deployment, monitoring, and administration while maintaining compatibility with standard networking protocols.

Suitable for

• Small and medium-sized enterprise LANs requiring many Gigabit ports and PoE for IP phones, cameras, or access points
• Environments that need centralized management via cloud or on‑premises controllers
• Network environments requiring VLANs, QoS, port security and standards-based interoperability

Key specifications

• Model: Grandstream GWN7806P (MPN: GWN7806P, EAN: 6947273704591)
• Switch type: Managed L2+
• Ports: 48 × Gigabit Ethernet (10/100/1000) RJ‑45
• PoE: Supported (802.3af / 802.3at)
• MAC address table: 32,000 entries
• Switching capacity: 216 Gbit/s
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3z, 802.3ad, 802.3af, 802.3at, 802.1x, 802.1Q, 802.1p, 802.1D, 802.1w, 802.1s
• Color: Grey
• Weight: 5.1 kg

How to use

Install the GWN7806P in a standard 19‑inch rack or on a flat surface and connect network devices to the Gigabit RJ‑45 ports. Configure basic settings through the product’s web user interface, or choose GWN.Cloud to provision and monitor the switch remotely or deploy GWN Manager for on‑premises centralized control. Use the embedded controller to auto‑discover and auto‑provision other Grandstream GWN series devices on the same network.

Recommendations

Place the switch in a ventilated rack space with stable power. When using PoE, verify total power budget against connected devices’ requirements. Use VLANs and QoS to segment traffic and prioritize latency‑sensitive services such as VoIP and surveillance.
