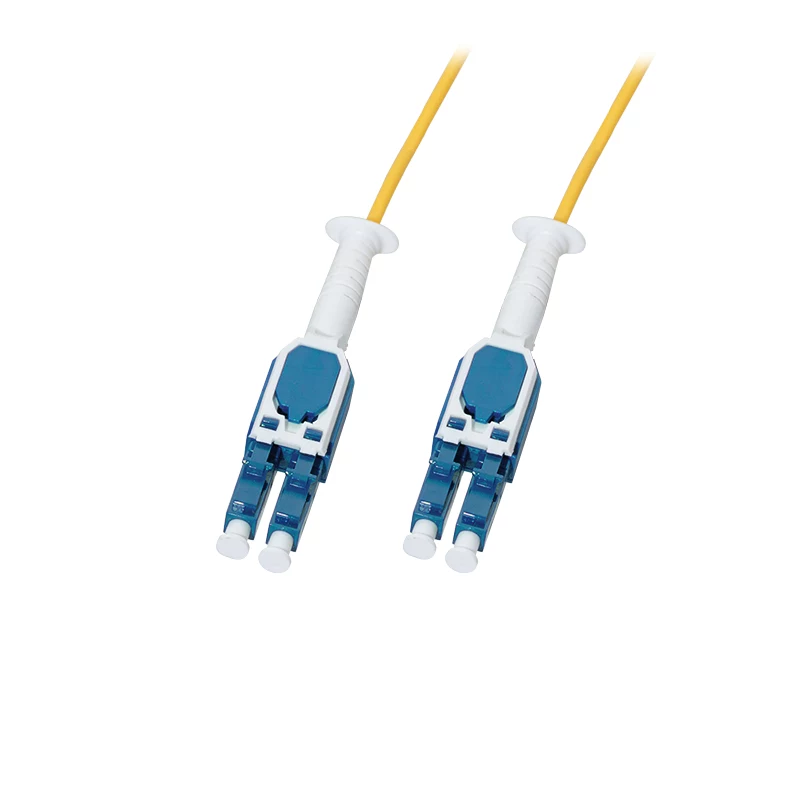

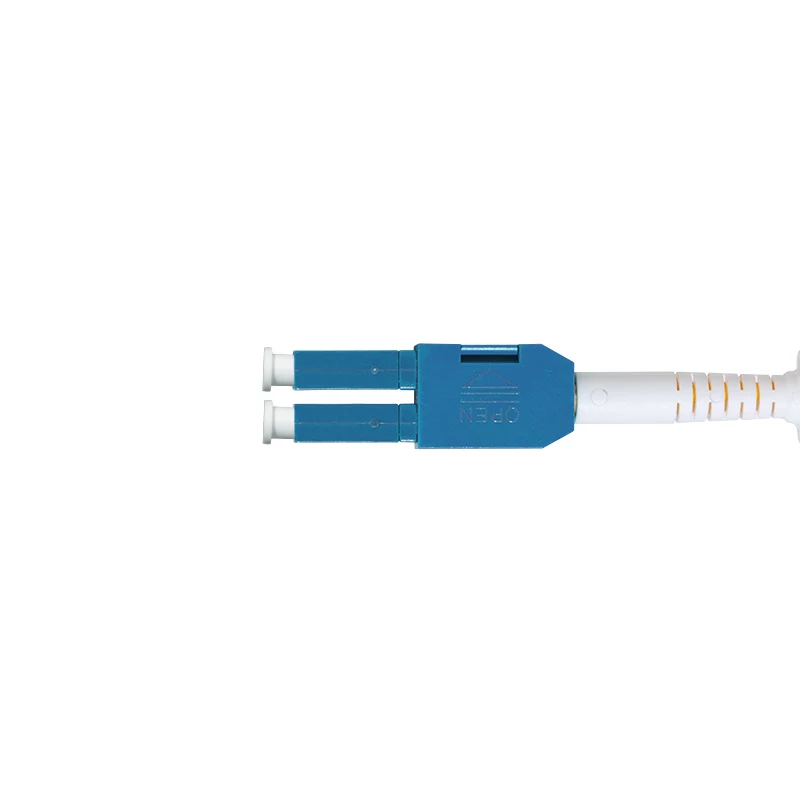

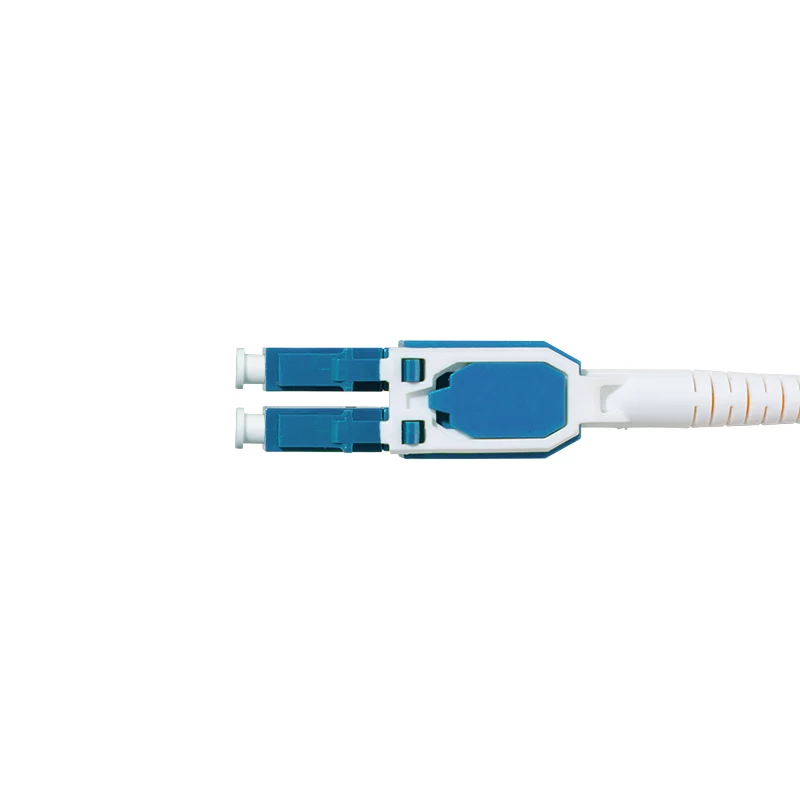

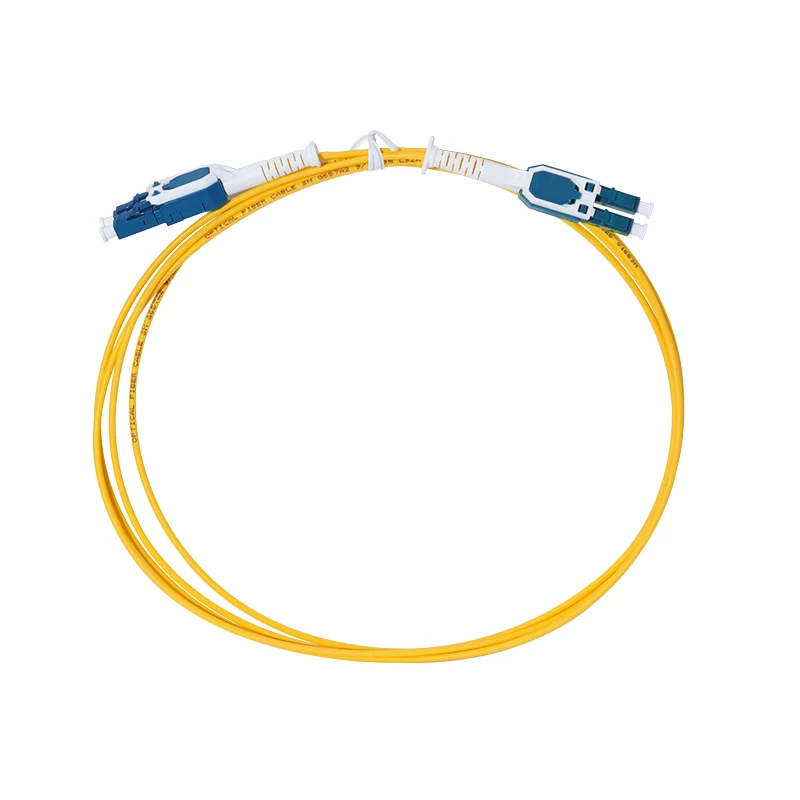

LogiLink Uniboot Push-Pull LC-LC OS2 μονότροπο καλώδιο patch οπτικής ίνας, 0,5 m, LSZH, κίτρινο

Dense fiber patching in data centers often becomes a tangle of individual connectors that are hard to grip and release, especially in high-port-count panels. This LogiLink Uniboot patch cord solves that by combining both fibers into a single, slim boot with a push-pull tab, so you can insert or remove the duplex LC connector with one hand—even in the tightest spaces. The 0.5 m length is ideal for neat, short-reach links between adjacent equipment or within a rack, reducing slack and improving airflow.

Who is it for

Network engineers, data center technicians, and IT installers who manage high-density fiber infrastructure and need a reliable, easy-to-handle singlemode patch cord for interconnects or cross-connects in racks, cabinets, or wall outlets.

Main features

• Uniboot push-pull design: single boot for both fibers with an integrated tab for effortless insertion and extraction, even with one hand.
• Singlemode OS2 fiber (9/125 µm) with UPC polish for low insertion loss (≤ 0.2 dB) and high return loss (≥ 60 dB).
• LC/UPC duplex connectors on both ends, compliant with IEC 61754-20 and TIA/EIA-604-10.
• LSZH (Low Smoke Zero Halogen) yellow jacket, 2.0 mm diameter, flame-retardant and safe for enclosed spaces.
• Short 0.5 m length reduces cable clutter and improves airflow in dense racks.
• RoHS and REACH compliant.

Specifications

• Cable type: Fiber optic patch cable, singlemode OS2
• Connector A: LC/UPC Duplex (uniboot push-pull)
• Connector B: LC/UPC Duplex (uniboot push-pull)
• Fiber core/cladding: 9/125 µm
• Insertion loss: ≤ 0.2 dB
• Return loss: ≥ 60 dB
• Jacket material: LSZH
• Cable diameter: 2.0 mm
• Cable length: 0.5 m
• Operating temperature: -20°C to 70°C
• Number of fibers: 2
• Standards compliance: IEC 61754-20, TIA/EIA-604-10, RoHS, REACH

Tips

For best performance, keep bend radius above 30 mm and avoid excessive pulling force on the connectors. Use the push-pull tab to release the connector without touching the fiber itself.
