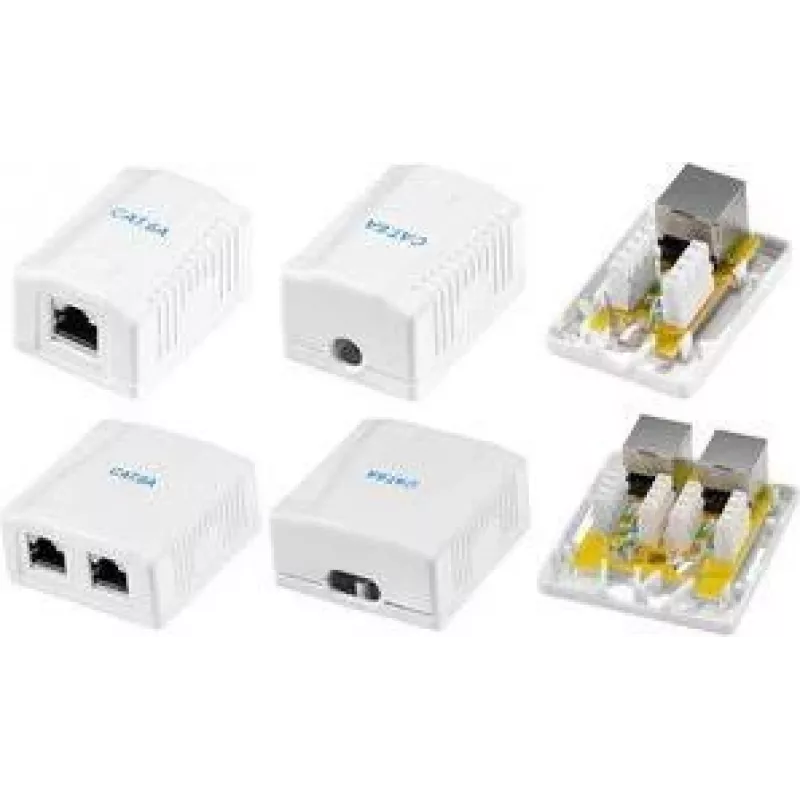

LogiLink NP0097 Cat.6A πρίζα επιτοίχια, 2x RJ45, θωρακισμένη, λευκή

Experience 10 Gigabit Ethernet performance with this Cat.6A surface mounted box, delivering a Class EA channel link for high-speed data transmission up to 500 MHz. The LogiLink NP0097 features two shielded RJ45 ports in a robust white ABS housing, ideal for professional network installations.

Overview

This surface mount box is designed for wall mounting and provides two RJ45 connection points, compliant with ISO/IEC 11801 and EN 50173 standards. It supports both TIA/EIA 568A and 568B wiring schemes, ensuring compatibility with a wide range of network configurations. The shielded design minimizes electromagnetic interference, making it suitable for environments with high signal integrity requirements.

What stands out

• Supports 10 Gigabit Ethernet with Class EA channel link performance
• Two shielded RJ45 ports for reliable connections
• Tool-free LSA+ (Krone) IDC terminals for quick and secure termination
• Gold-plated contacts (50µ") ensure low contact resistance and durability
• Housing made of ABS plastic for impact resistance and longevity
• Compatible with solid and stranded conductors AWG 22-24

Technical details

• Network Standard: Category 6A (Cat.6A)
• Performance Class: Class EA Channel Link
• Standard Compliance: ISO/IEC 11801, EN 50173
• Number of Ports: 2
• Connector Type: RJ45
• Mounting Type: Surface Mount
• Shielding: Shielded (STP/FTP)
• Color: White (similar to RAL 9003)
• Wiring Standard: TIA/EIA 568A/B
• Termination Type: LSA+ (Krone) IDC terminals
• Supported Data Rate: Up to 10 Gigabit Ethernet
• Frequency Range: Up to 500 MHz
• Contact Material: Gold-plated contacts (50µ")
• Housing Material: ABS Plastic
• Cable Compatibility: Solid and stranded conductors AWG 22-24
• Mating Cycles: >750
• Temperature Range (Operating): -10°C to 60°C
• Humidity Range (Operating): 10% to 90% non-condensing

Our verdict

The LogiLink NP0097 is a reliable and high-performance solution for professional network installations, offering excellent shielding and easy termination for 10 Gigabit Ethernet connectivity.
