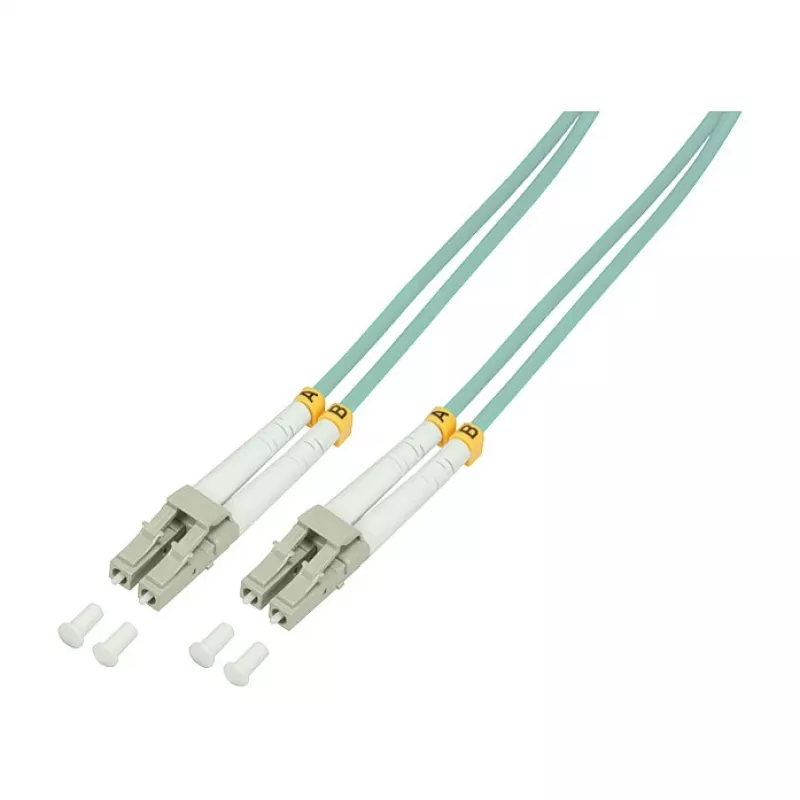

LogiLink Καλώδιο Patch Οπτικών Ινών OM3 LC/LC Duplex 40m Aqua

Engineered for high-density network environments, this LogiLink fiber optic patch cable provides a dependable 40-meter OM3 multimode connection with duplex LC connectors. Its aqua LSZH jacket and 50/125 µm core make it a strong choice for 10GbE, 40GbE and 100GbE applications where low latency and signal integrity are critical.

Advantages

OM3 multimode fiber supports high bandwidth over longer distances than standard OM1 or OM2, while the low-smoke zero-halogen jacket reduces toxic emissions during combustion, improving safety in confined spaces. The ceramic ferrules ensure precise alignment and stable insertion loss below 0.3 dB per connector, delivering reliable performance in demanding installations. This 40-meter patch cord offers flexibility for rack-to-rack and top-of-rack cabling, simplifying organization and reducing signal degradation compared to multiple shorter jumpers.

Suitable for

• Data center patching and server interconnections
• Enterprise network cabinets and structured cabling
• High-speed storage and switching applications
• Telecommunications room cross-connects

Key specifications

• Cable type: Fiber optic patch cable, duplex
• Connectors: 2x LC male to 2x LC male
• Fiber class: OM3, multimode 50/125 µm
• Length: 40 meters
• Jacket: LSZH, aqua
• Core/cladding: 50/125 µm
• Bandwidth: 1500 MHz·km at 850 nm; 500 MHz·km at 1300 nm
• Attenuation: 3.5 dB/km at 850 nm; 1.5 dB/km at 1300 nm
• Insertion loss: <0.3 dB typical per connector
• Return loss: >30 dB
• Operating temperature: -20 °C to 70 °C
• Standards: TIA/EIA-492AAAC-A, IEC 60793-2-10 Type A1a.2

Recommendations

For best results, pair this OM3 patch cable with 10GbE SFP+ transceivers or 40/100GbE QSFP optical modules. Avoid bending beyond the manufacturer’s recommended radius and use cable management to maintain optimal performance.
