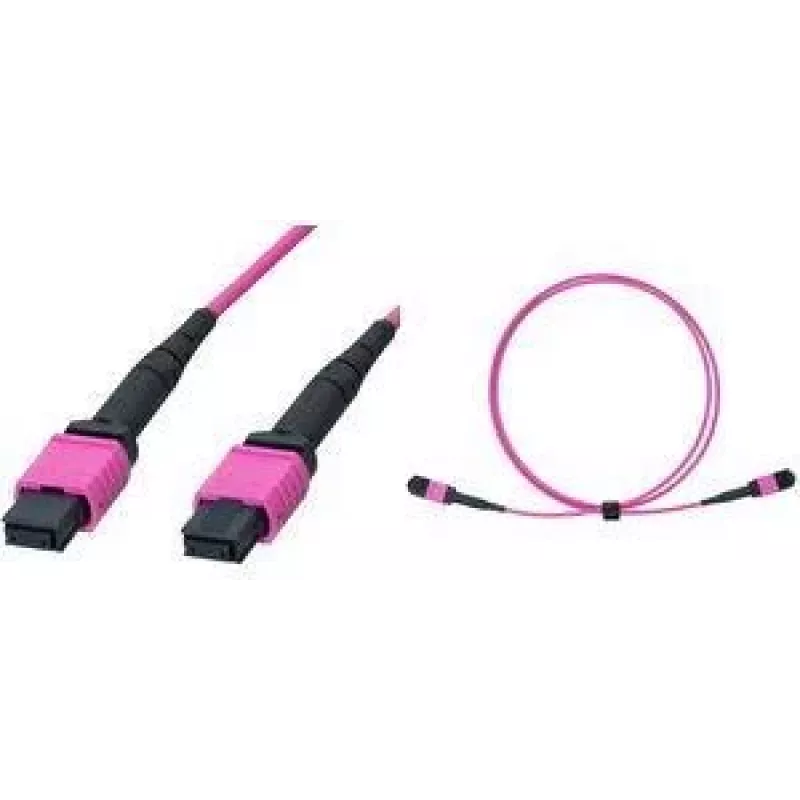

LogiLink FM7LC05 Καλώδιο patch MPO, 12 ίνες, Multimode OM4 50/125 µm, MPO/PC B/B, Type B, 5 m

High-density fiber optic networks demand reliable, low-loss connections that can handle ever-increasing data rates. The LogiLink MPO Patch Cable with 12 fibers and OM4 multimode performance delivers the bandwidth and stability needed for modern data centers and enterprise backbones. This 5-meter trunk cable features MPO connectors on both ends, enabling fast, space-efficient deployment of parallel optics for 10G, 40G, and 100G Ethernet links.

Who is it for

Network engineers, data center managers, and IT professionals who need to build or upgrade high-speed fiber infrastructure. This cable is ideal for backbone interconnects, high-density patching, and any environment where space and performance are critical.

Main features

• 12-fiber MPO trunk cable with OM4 multimode fiber (50/125 µm core/cladding)
• Supports 10 Gigabit, 40 Gigabit, and 100 Gigabit Ethernet
• High bandwidth: 4700 MHz·km at 850 nm and 500 MHz·km at 1300 nm
• LSZH (Low Smoke Zero Halogen) jacket in aqua for safety and easy identification
• MPO connectors on both ends for quick, high-density connections
• 5.0 m length provides flexibility in rack-to-rack or row-to-row cabling

Specifications

• Cable Type: MPO Trunk Cable
• Fiber Type: Multimode
• Optical Fiber Class: OM4
• Fiber Count: 12
• Core Diameter: 50 µm
• Cladding Diameter: 125 µm
• Length: 5.0 m
• Connector A: MPO
• Connector B: MPO
• Wavelength Support: 850 nm, 1300 nm
• Maximum Bandwidth (850 nm): 4700 MHz·km
• Maximum Bandwidth (1300 nm): 500 MHz·km
• Jacket Material: LSZH
• Jacket Color: Aqua
• Application: Data Center Interconnects, High-Density Fiber Optic Networks

Tips

For optimal performance, ensure MPO connectors are kept clean and protected with dust caps when not in use. Use proper polarity management when connecting to transceivers or cassettes. This cable is suitable for use in plenum and riser spaces due to its LSZH jacket.
