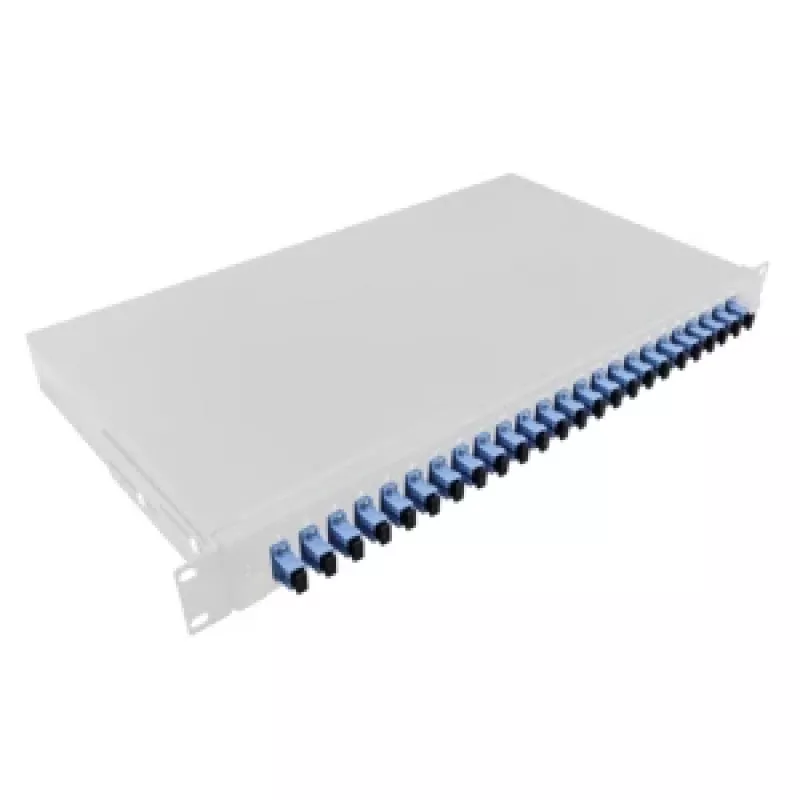

LogiLink FB2402G μπροστινή πλάκα οπτικών ινών 24 SC-Duplex ή LC-Quad, ανοιχτό γκρι

Unlike fixed adapter plates that lock you into a single connector type, the LogiLink FB2402G fiber front panel offers true modular flexibility. This 24-position panel accepts both SC-Duplex and LC-Quad adapters, letting you mix legacy and high-density connections in one 19" rack unit. The tool-less snap-in design means no screws or special tools—just press adapters into place and reconfigure as your network evolves. Finished in light grey (RAL 7035), it blends seamlessly with standard rack equipment and supports up to 48 fibers when fully loaded with LC-Quad adapters.

Highlights

• 24 adapter positions compatible with SC-Duplex or LC-Quad connectors
• Tool-less snap-in mechanism for quick installation and reconfiguration
• High-grade plastic construction with durable light grey finish (RAL 7035)
• Integrated labeling fields for clear port identification
• Designed for R&M Freenet and Netscale patch panel housings
• RoHS and REACH compliant, IP20 rated for indoor use

In daily use

Network administrators will appreciate the FB2402G's adaptability. Migrating from SC to LC? No problem—swap adapters in seconds without disrupting adjacent ports. The snap-in design reduces installation time and prevents adapter damage, while the labeling fields keep your patching field organized. Ideal for data centers, LAN backbones, and FTTx deployments where density and flexibility matter.

Full specifications

• Product type: Fiber optic front panel / adapter plate
• Port capacity: 24 adapter positions
• Compatible connector types: SC-Duplex, LC-Quad
• Maximum fiber count: 48 (with LC-Quad adapters)
• Material: High-grade plastic
• Color: Light grey (RAL 7035)
• Mounting type: Modular insert for R&M patch panel housings
• Compatibility: R&M Freenet / Netscale patch panel systems
• Installation: Tool-less snap-in mechanism
• Environmental conditions: Indoor use
• Standards compliance: RoHS, REACH
• Protection class: IP20
• Operating temperature: -10 to +60 °C
• Storage temperature: -25 to +70 °C
• Humidity: 10 - 90% non-condensing
• Labeling: Integrated labeling fields
• Adapters included: No (sold separately)

Final note

For a future-proof patching solution that grows with your network, the LogiLink FB2402G delivers the flexibility and build quality you need.
