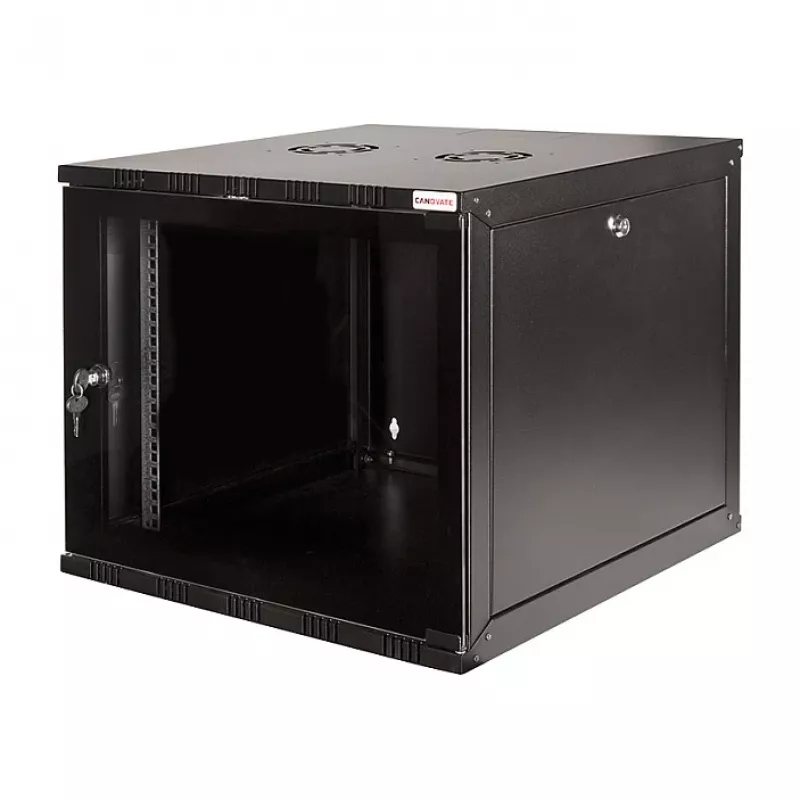

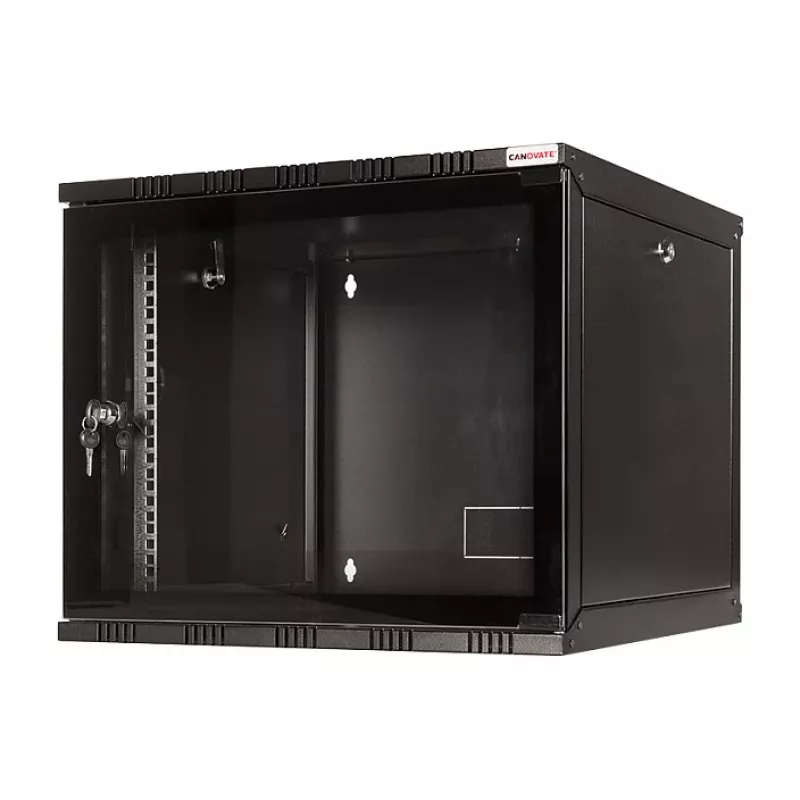

LOGILINK επιτοίχιο κουτί SOHO 19 ιντσών 12U 540*550, Flatpack, μαύρο

Managing network equipment in small offices or home environments often means dealing with bulky, floor-standing racks that consume valuable space. The LOGILINK 19" Wallmount SOHO Box 12U solves this by mounting directly to the wall, keeping your 19-inch devices securely organized and off the floor. With a compact 540x550 mm footprint and a 12U capacity, it accommodates switches, patch panels, and other rack-mount gear without sacrificing room aesthetics.

Who is it for

This cabinet is ideal for small office/home office (SOHO) users, IT technicians, and network installers who need a space-saving, secure enclosure for networking equipment. It suits environments where floor space is limited, such as offices, retail back rooms, or residential utility closets.

Main features

• 12U rack space for standard 19-inch equipment
• Wall-mount design frees up floor space
• Flatpack delivery for easy transport and assembly
• Lockable tempered glass front door with 2 keys included

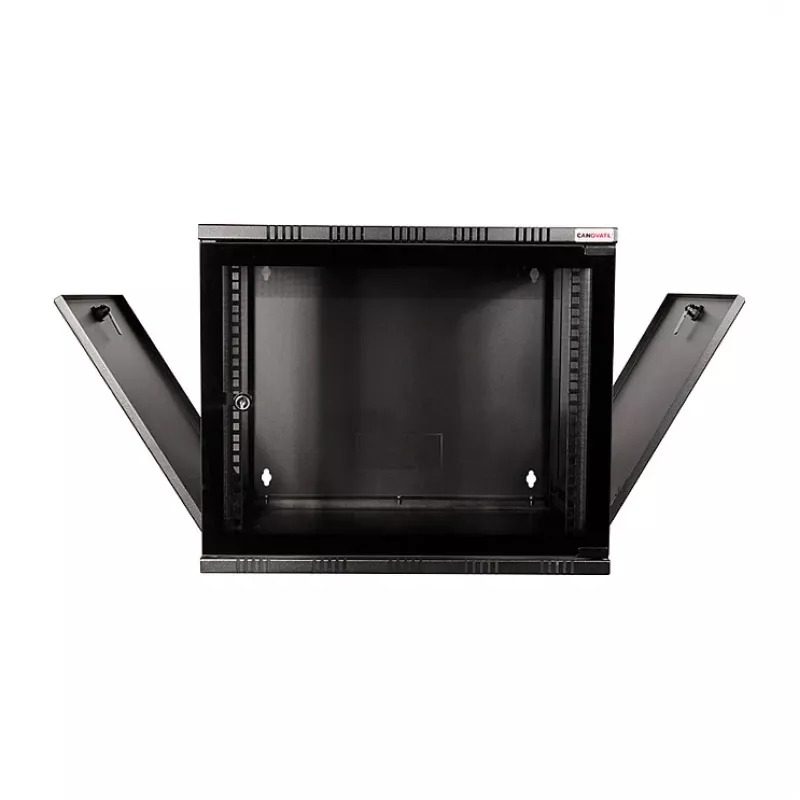

• Removable, lockable side panels for easy access
• Passive ventilation slots and fan-ready design
• Top and bottom cable entry points for clean routing
• Durable SPCC cold rolled steel with powder-coated black finish

Specifications

• Rack units: 12U
• Rack standard: 19-inch
• Mounting type: Wall mount
• External dimensions: 540 mm (W) x 550 mm (D) x 535 mm (H)
• Material: SPCC cold rolled steel
• Colour: Black (RAL 9005)
• Front door: Tempered glass with lock
• Side panels: Removable, lockable
• Static load capacity: Up to 60 kg
• Ventilation: Passive slots, fan unit ready
• Protection class: IP20
• Surface finish: Powder coated
• Included accessories: Mounting hardware, 2 keys
• Compliance: RoHS, CE

Tips

For optimal airflow, consider installing a fan unit in the provided slot if you plan to house heat-generating equipment. Ensure the wall can support the combined weight of the cabinet and installed devices (up to 60 kg static load). Use the top and bottom cable entry points to keep cabling neat and reduce strain on connections.
