LevelOne HUBBLE 9-κάναλο δικτυακός βίντεο εγγραφής

The LevelOne HUBBLE NVR-1209 is a 9-channel network video recorder designed for small to medium surveillance installations. It supports up to 8 TB of storage and records audio using G.711 and PCM formats. The unit is compatible with Android and iOS mobile apps and can be accessed through Internet Explorer 9/10/11. It is certified to CE, FCC and UL standards, operates on a 12V output voltage and consumes 22W of power. The recorder includes two USB 2.0 ports, two Ethernet (RJ-45) ports and uses Serial ATA for HDD connection. The product is finished in black and weighs 1.39 kg.

Advantages

The HUBBLE NVR-1209 offers a compact, energy-efficient solution for video recording with support for up to nine camera channels and large-capacity storage up to 8 TB. Built-in compatibility with common audio codecs (G.711, PCM) and mobile platforms (Android, iOS) provides flexible access and monitoring. Standard certifications (CE, FCC, UL) indicate compliance with regulatory and safety requirements. Its Serial ATA HDD interface and two USB 2.0 ports enable straightforward storage configuration and data transfer.

Suitable for

• Small office or retail surveillance systems
• Home security setups requiring multi-channel recording
• Remote monitoring via Android or iOS devices
• Environments needing compliance with CE, FCC and UL standards

Key specifications

• Model: LevelOne HUBBLE NVR-1209
• Channels: 9-channel network video recorder
• Maximum storage supported: up to 8 TB
• HDD capacity (internal): 0 GB (no preinstalled drive)
• HDD interface: Serial ATA
• USB: 2 × USB 2.0 ports

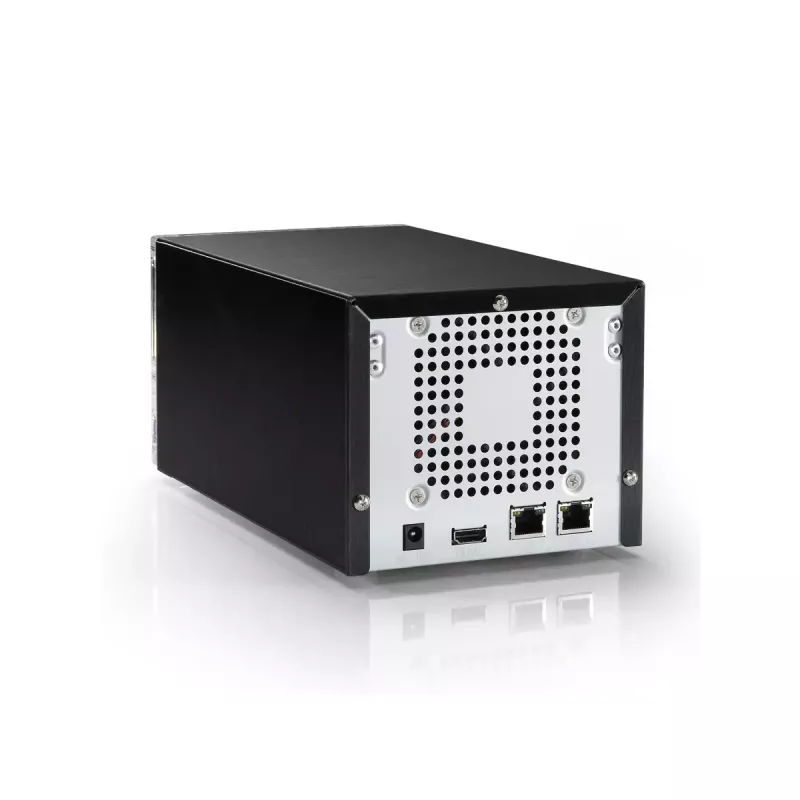

• Ethernet: 2 × RJ-45 LAN ports
• Audio formats: G.711, PCM
• Supported browsers: Internet Explorer 9/10/11
• Mobile compatibility: Android, iOS
• Output voltage: 12 V
• Power consumption: 22 W
• Product colour: Black
• Weight: 1.39 kg
• Certifications: CE, FCC, UL

How to use

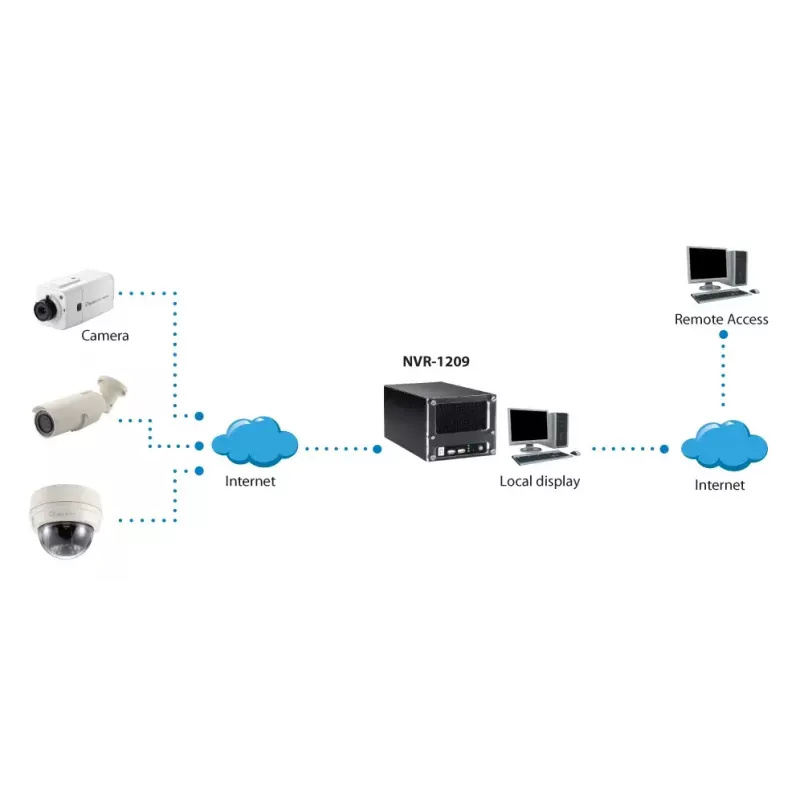

Install the LevelOne HUBBLE NVR-1209 on a stable, ventilated surface and connect cameras to the local network where the NVR is reachable via its RJ-45 ports. Install a compatible Serial ATA HDD (up to 8 TB) in the device if long-term storage is required; the device ships with 0 GB internal storage by specification. Connect power (12 V) and verify the unit boots correctly. Configure recording channels, schedules and audio settings via the web interface accessible from supported browsers or via the LevelOne mobile app on Android or iOS. Use the USB 2.0 ports for manual backups or firmware updates as needed.

Recommendations

For reliable operation, use a quality Serial ATA HDD rated for surveillance workloads and ensure firmware is kept up to date. Place the NVR in a location with adequate airflow and stable network connectivity. Regularly verify recordings and perform backups via USB or network storage to prevent data loss.
