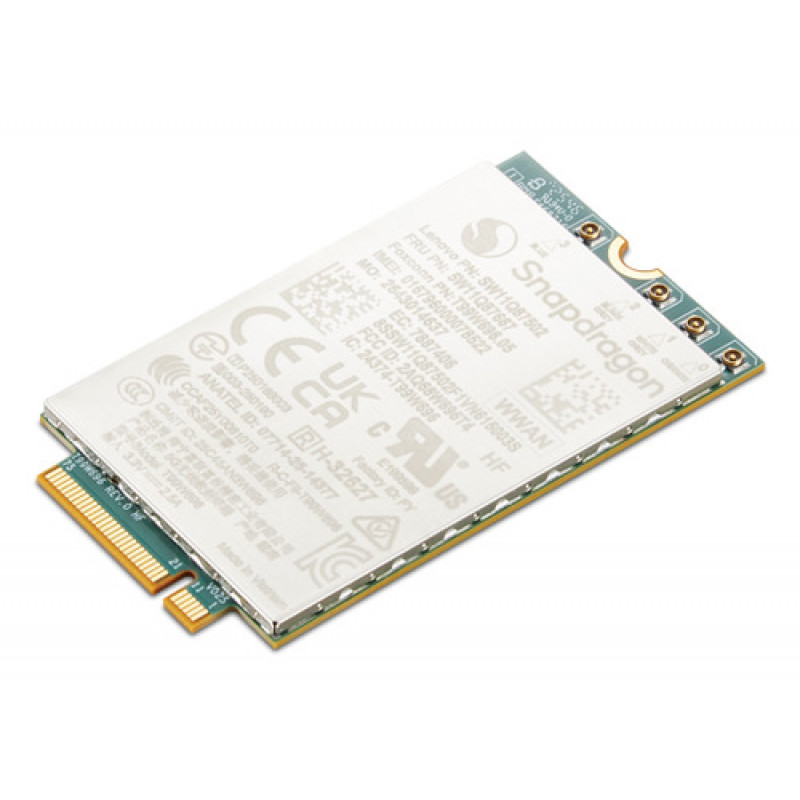

LENOVO FOXCONN SDX61 SUB6 5G M.2 WWAN (T14 G7)

Staying connected on the go is no longer a luxury—it's a necessity. The Lenovo Foxconn SDX61 Sub-6 5G M.2 WWAN module brings next-generation cellular connectivity to your ThinkPad T14 Gen 7, eliminating dependence on Wi-Fi hotspots and delivering secure, high-speed internet wherever 5G coverage exists. Built around the Qualcomm Snapdragon X61 chipset, this module supports both standalone (SA) and non-standalone (NSA) 5G architectures, along with comprehensive LTE and WCDMA fallback for uninterrupted connectivity.

Who is it for

This module is ideal for mobile professionals, field technicians, and remote workers who require reliable broadband access outside the office. Whether you're attending virtual meetings from a client site, uploading large files from a vehicle, or managing critical systems in areas with limited wired infrastructure, the SDX61 ensures you stay productive.

Main features

• 5G NR Sub-6 GHz with SA & NSA modes for global compatibility
• Qualcomm Snapdragon X61 chipset with 4x4 MIMO and up to 7x LTE carrier aggregation
• Peak download speeds up to 2.5 Gbps and upload up to 900 Mbps
• M.2 Key B form factor with PCIe Gen 3 and USB 3.1 host interfaces
• Integrated GNSS (GPS, GLONASS, BeiDou, Galileo, QZSS) for location services
• Nano-SIM (4FF) support and four antenna connectors (Main, Aux1, Aux2, GNSS)
• Designed for Lenovo ThinkPad T14 Gen 7 and compatible laptops

Specifications

• Connectivity: 5G NR, LTE Cat 20, WCDMA (3G)
• 5G Modes: SA & NSA
• Frequency Bands: Sub-6 GHz (global bands)
• Max Download: 2.5 Gbps (5G NR)
• Max Upload: 900 Mbps (5G NR)
• MIMO: 4x4 (5G NR & LTE)
• Carrier Aggregation: Up to 7x LTE
• GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
• SIM: Nano-SIM (4FF)
• OS Compatibility: Windows 10/11, Linux
• Antenna Connectors: 4x (Main, Aux1, Aux2, GNSS)
• Form Factor: M.2 Key B
• Host Interface: PCIe Gen 3, USB 3.1
• OEM: Foxconn

Tips

Before installation, ensure your laptop's BIOS and WWAN drivers are updated to the latest versions from Lenovo. For optimal signal reception, use the recommended antenna kit and position the laptop away from large metal obstructions. Check with your carrier for 5G band support and SIM provisioning to fully leverage the module's capabilities.
