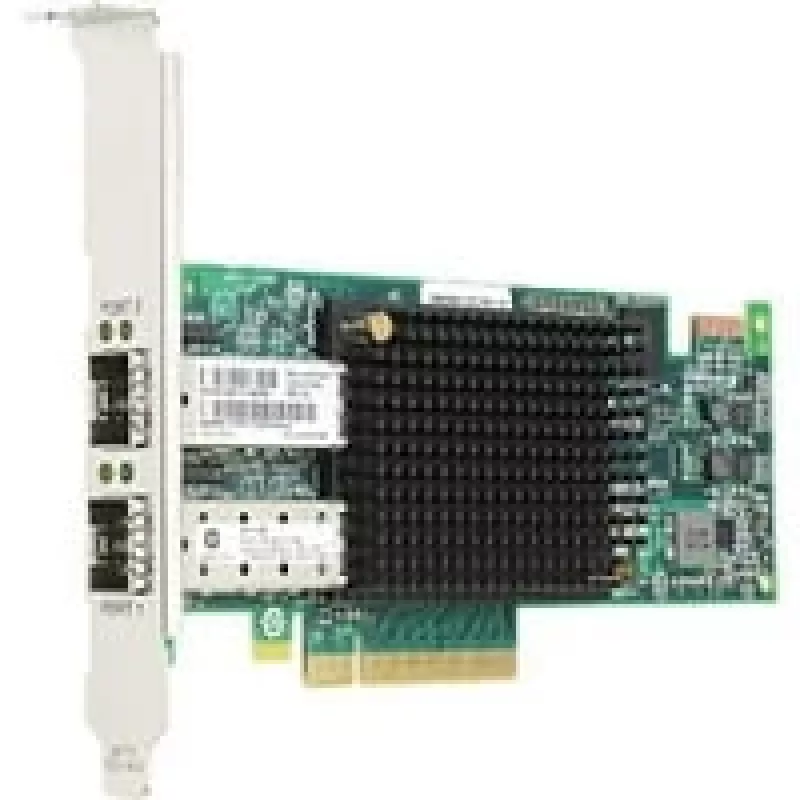

Lenovo 01CV840 Emulex Gen 6 εσωτερικός προσαρμογέας HBA Fibre Channel, 2 x 16 Gb (16000 Mbit/s), PCIe 3.0 x8, χαμηλού προφίλ

The Emulex 16 Gb (Generation 6) Fibre Channel host bus adapters (HBAs) provide high-speed storage connectivity for Lenovo System x servers in virtualized environments, data backup workflows, and mission-critical applications. These 16 Gb Gen 6 FC HBAs are built to support modern networked storage architectures that combine low-latency solid state drives for caching and persistent storage with traditional hard disk drive arrays.

Advantages

Emulex 16 Gb Gen 6 FC HBAs include ExpressLane™ traffic prioritization to maintain application performance on flash storage arrays under congested network conditions. They also integrate with Emulex OneCommand® Manager to support Brocade ClearLink™ diagnostics, facilitating reliable management and troubleshooting when attached to Brocade Gen 5 FC SAN fabrics.

Key specifications

• Interface: Fibre Channel (FC)
• Generation: Gen 6 (16 Gb)
• Primary use: Storage connectivity for servers, virtualization, backups, mission-critical apps
• Traffic prioritization: ExpressLane™
• Diagnostics support: Brocade ClearLink™ via Emulex OneCommand® Manager
• Compatibility note: Designed for Lenovo System x servers and Brocade Gen 5 FC SAN fabrics

How to use

Install the Emulex 16 Gb Gen 6 FC HBA into an appropriate PCIe slot on the Lenovo System x server according to the server and HBA installation guides. Connect the fibre channel ports to the SAN fabric and verify zoning and fabric configuration. Use Emulex OneCommand® Manager for firmware updates, configuration, and to enable ClearLink™ diagnostics when connected to Brocade switches. Validate link speed and health after installation and monitor performance in production to ensure expected throughput to flash and disk arrays.

Recommendations

Ensure firmware and drivers are up to date and follow Lenovo and Emulex installation documentation. When deploying with Brocade Gen 5 fabrics, enable ClearLink™ diagnostics through OneCommand® Manager to simplify troubleshooting. For optimal performance with flash arrays, configure network prioritization and validate SAN zoning to prevent contention.
