Laser γραμμών Stanley Cubix Σταυρωτός laser κόκκινης ακτίνας

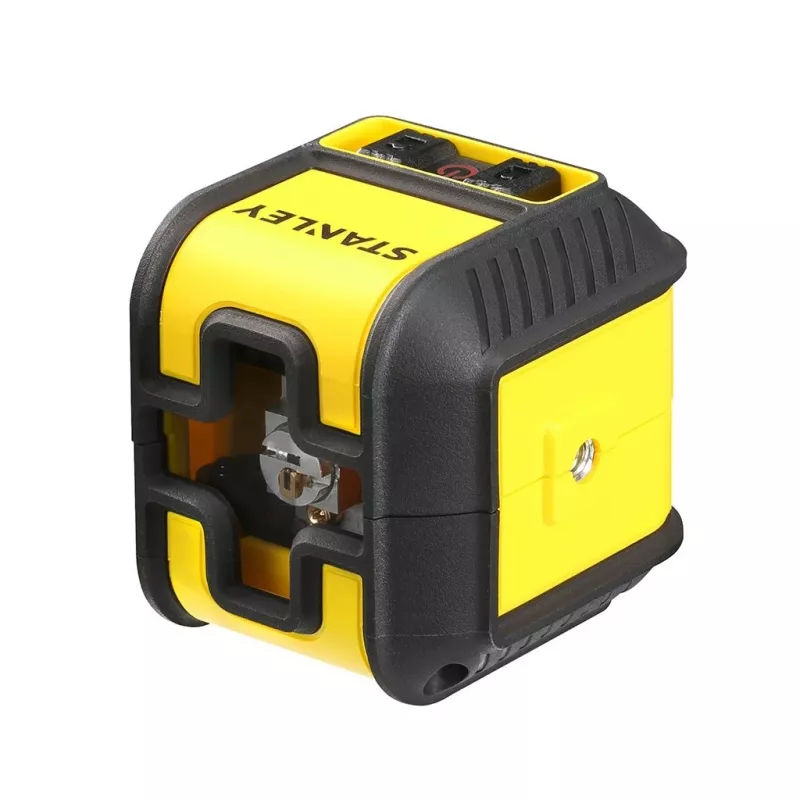

The Stanley Cubix Cross Line Red Beam Laser is a compact line level designed for on-site alignment and levelling tasks. It projects a red cross line with a maximum working range of 12 m and offers a levelling accuracy of ±0.45 mm/m. The tool features self-levelling within ±4° and is powered by AA batteries. A 1/4" tripod thread enables secure mounting to standard tripods and supports. The compact black-and-yellow housing is built for frequent use in construction, renovation and interior fit-out environments.

Advantages

The compact design provides easy transport and setup while the self-levelling mechanism speeds up alignment without manual adjustments. The red beam is visible for typical indoor applications and the ±0.45 mm/m accuracy supports precise installations. Battery operation ensures cordless use, and the 1/4" tripod thread offers compatibility with common mounting accessories. The robust housing and clear colour coding make the device easy to locate and handle on busy job sites.

Suitable for

Key specifications

How to use

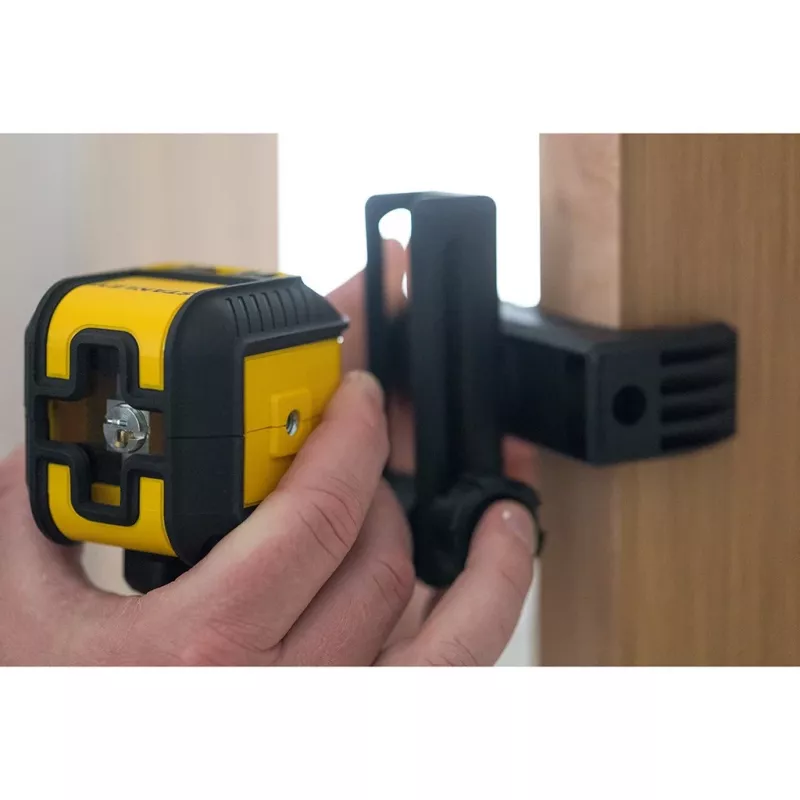

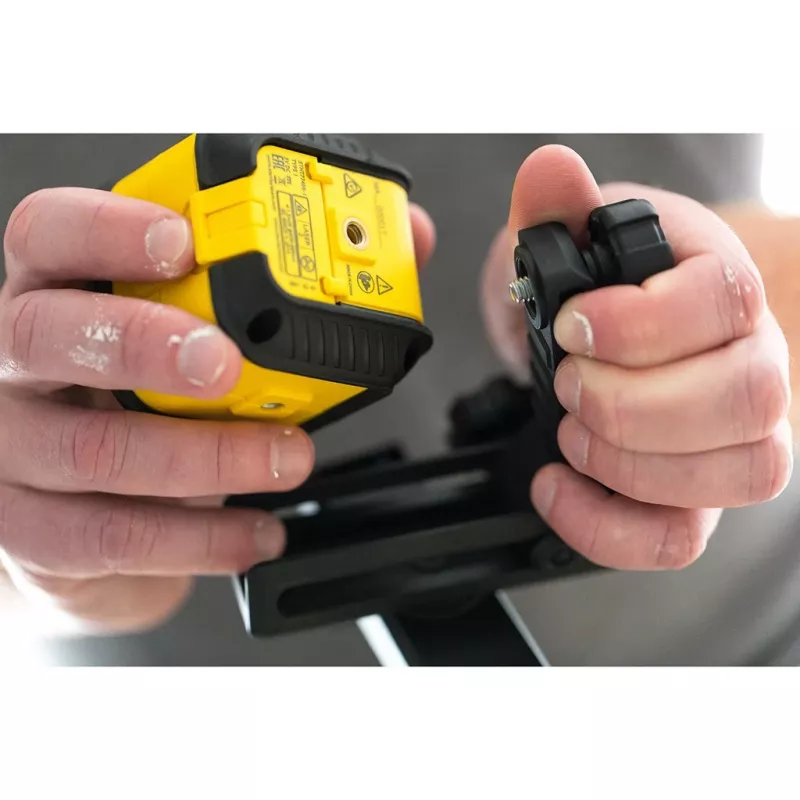

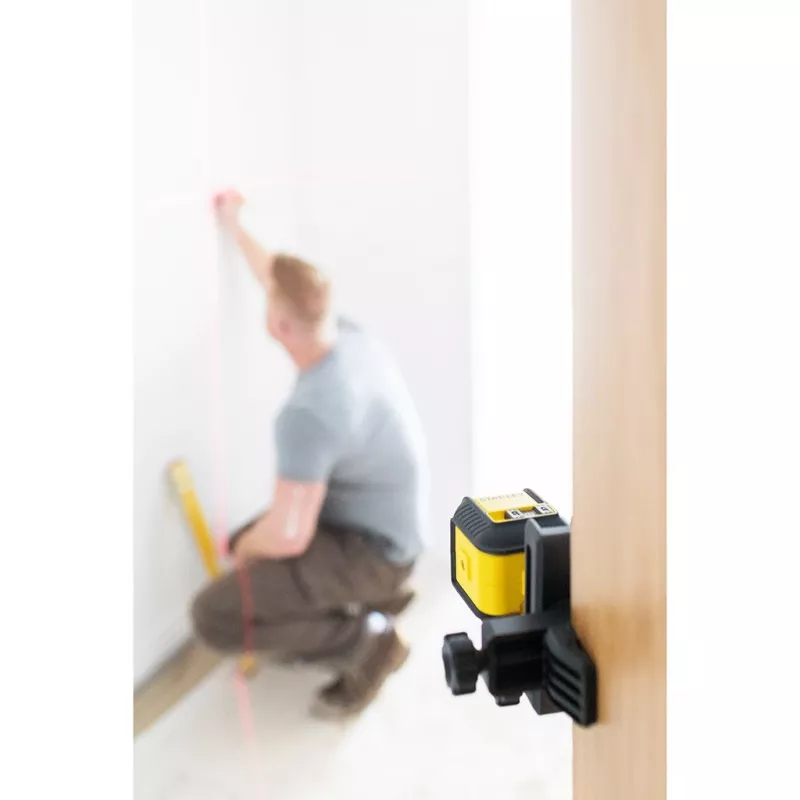

Place the Stanley Cubix on a flat surface or attach it to a tripod using the integrated 1/4" thread. Switch the unit on and allow the self-levelling mechanism to stabilise within its ±4° range; the cross line will appear when levelling is complete. Position the projected lines against your reference points and adjust the unit or tripod until the alignment matches the desired layout. For elevations beyond the self-levelling angle, manually re-position the tool and re-initiate levelling. Replace AA batteries when beam intensity and operating time decrease.

Recommendations

Use the Stanley Cubix Cross Line Red Beam Laser primarily indoors or in controlled lighting where the red beam remains visible; for long-distance or bright outdoor applications consider a green-beam or pulse-compatible receiver system. Store the unit in a protected case to avoid impact and dust ingress, and remove batteries for long-term storage to prevent corrosion.
