Lapp Mobility καλώδιο φόρτισης Type 2 έως 22 kW 3 m πορτοκαλί (65755)

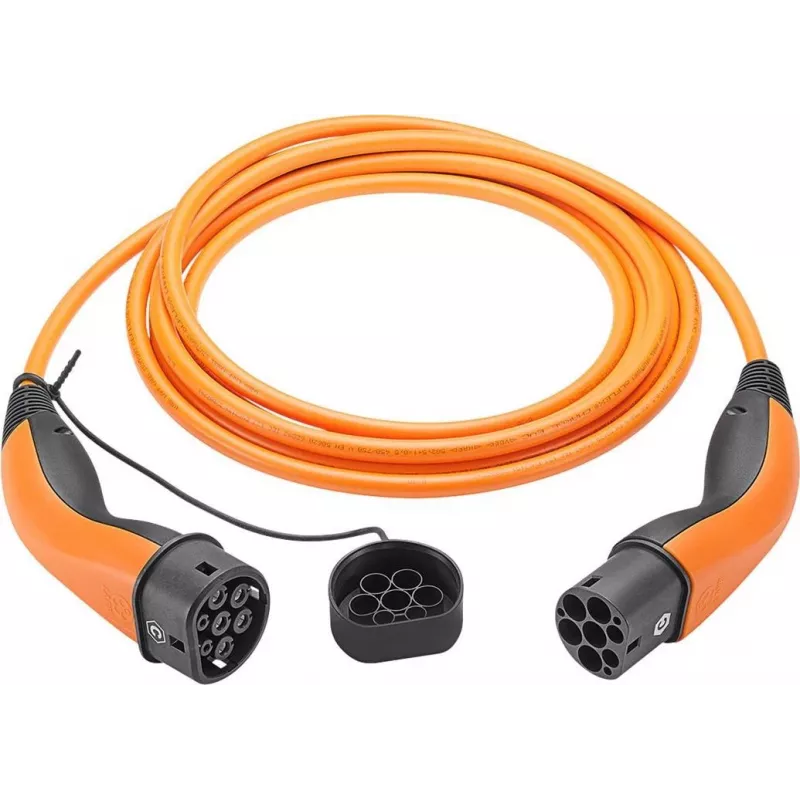

The Lapp Mobility Type 2 charging cable is a high-quality Mode 3 charging solution designed for electric vehicles with a Type 2 inlet. With a maximum charging power of 22 kW and a length of 3 meters, this cable offers reliable and efficient charging for your EV. The bright orange color ensures high visibility, reducing tripping hazards and making it easy to locate.

Advantages

This charging cable is built with a durable TPE jacket that is UV and oil resistant, ensuring long-lasting performance even in harsh environments. The cable is flame retardant and features IP44 protection when connected, providing safety and peace of mind. Its 3-phase design supports fast charging up to 22 kW, making it ideal for home and commercial charging stations.

Suitable for

• Electric vehicles with a Type 2 (IEC 62196-2) inlet
• Mode 3 charging stations (wallboxes, public chargers)
• 3-phase AC charging up to 22 kW
• Outdoor and indoor use

Key specifications

• Connector Type (Vehicle Side): Type 2 (IEC 62196-2)
• Connector Type (Charging Station Side): Type 2 (IEC 62196-2)
• Charging Standard: Mode 3 (IEC 61851-1)
• Max Charging Power: 22 kW
• Max Current: 32 A
• Number of Phases: 3-phase
• Cable Length: 3 m
• Cable Color: Orange
• Rated Voltage: 400 V AC
• Operating Temperature: -30°C to +50°C
• Protection Class (Connected): IP44
• Cable Jacket Material: TPE (Thermoplastic Elastomer)
• UV Resistance: Yes
• Oil Resistance: Yes
• Flame Retardant: Yes
• Certifications: CE, TÜV
• Application: Electric Vehicles (EVs) with Type 2 inlet
• Cable Type: Straight

Recommendations

For optimal performance, ensure your charging station supports Mode 3 and 3-phase charging. Always store the cable in a clean, dry place when not in use. This cable is compatible with most Type 2 EVs and charging stations.
