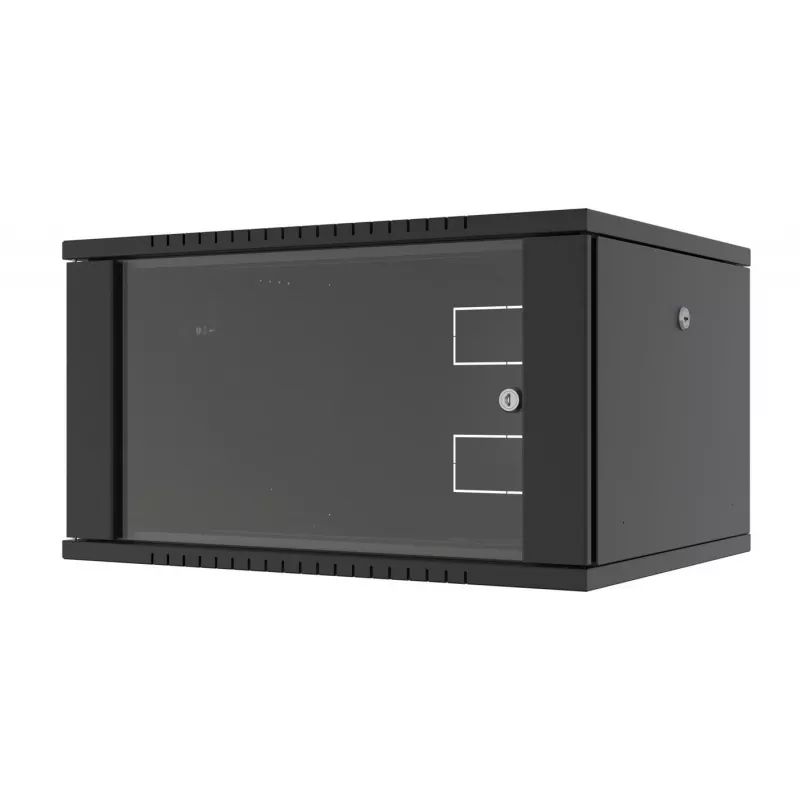

LANVIEW Quick Assembly Flat Pack 19 inch Ερμάριο Επιτοίχιας Τοποθέτησης - 6U, 19 inch, Μαύρο

The LANVIEW Quick Assembly Flat Pack 19 is a space-saving wall-mount network cabinet that combines rapid installation with professional-grade protection. Its flat-packed design reduces shipping volume and allows you to deploy a sturdy 6U rack in minutes, without sacrificing security or cable management.

Highlights

• 19-inch wall-mount cabinet for 6U of equipment
• Quick-assembly flat pack: arrives compact, sets up fast
• Tempered glass front door with lock and two keys included
• Removable and lockable side panels for easy access
• Top and bottom cable entry points with brush strips
• Ventilation via fan cut-outs on the top panel

In daily use

Ideal for retail, office, and industrial environments where floor space is limited, this cabinet mounts directly to the wall. The quick-assembly system simplifies setup: unfold the pre-formed SPCC cold rolled steel panels, secure them with the included cage nuts and screws, and you are ready to mount switches, patch panels, or small servers. The lockable front door and side panels keep your equipment secure, while the brush strip cable entries help maintain tidy cable routing and airflow.

Full specifications

• Brand: LANVIEW
• Model: RWF07U45BL
• Rack size: 19-inch
• Rack units: 6U
• Mounting: wall mount
• External dimensions: 600 mm width x 450 mm depth x 370 mm height
• Material: SPCC cold rolled steel
• Finish: powder coated, black (RAL9004)
• Front door: tempered glass with lock
• Side panels: removable, lockable
• Cable entry: top and bottom with brush strips
• Ventilation: passive, with fan cut-outs on top
• Static load capacity: 60 kg
• Protection rating: IP20
• Compliance: RoHS, CE
• Included accessories: 20x cage nuts and screws, 2x keys

Final note

The LANVIEW Quick Assembly Flat Pack 19 is an efficient and secure networking solution for anybody who needs a reliable wall-mount cabinet without the hassle of bulky packaging or complex assembly. Backed by a reputable brand and built from cold-rolled steel, it offers both durability and value.
