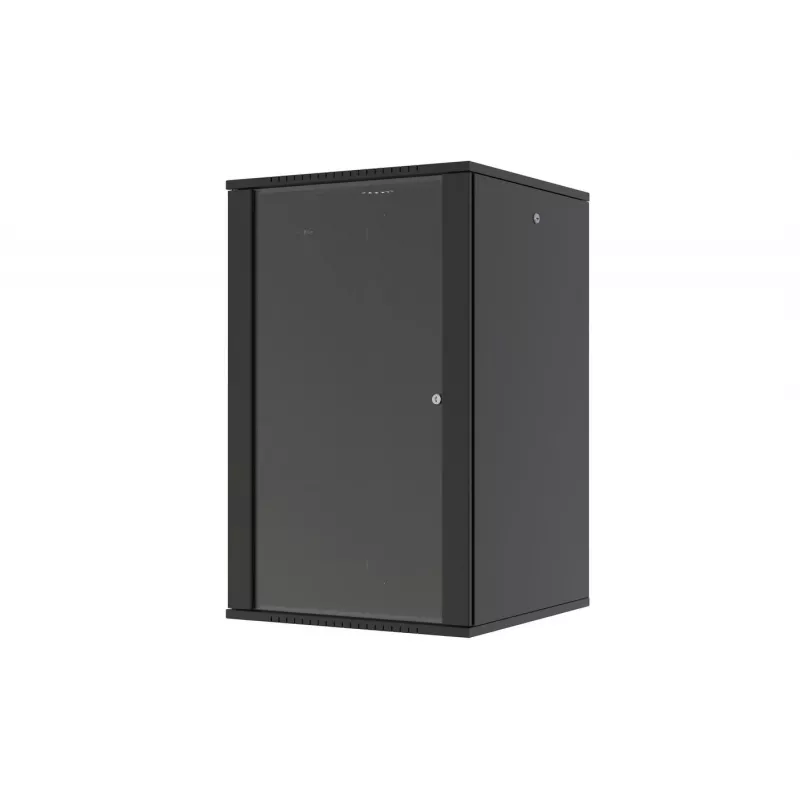

LANVIEW Quick Assembly Flat Pack 19 6U Επιτοίχια βάση rack (Μαύρη)

When a full-size rack is overkill but loose equipment is chaos, the LANVIEW Quick Assembly Flat Pack 19 Wall Mount Rack brings order to network rooms, retail back offices, and lab benches. This 6U cabinet delivers pro-grade cable management and security in a compact, wall-mountable footprint.

Highlights

• Quick-assembly flat pack design – ships flat, assembles in minutes
• 6U of 19-inch rack space – fits switches, patch panels, and small servers
• Tempered glass front door with 180° opening and lock
• Lockable, removable side panels for easy access from all sides
• Cable entry top and bottom with brush strips for tidy routing
• SPCC cold-rolled steel with powder-coated finish, rated for 60 kg static load

In daily use

The wall-mount form factor frees up floor space and keeps networking equipment at an ergonomic height. The glass door allows at-a-glance status checks while the lock protects sensitive hardware. Adjustable rack rails accommodate different device depths, and the quick-assembly construction means you can have it on the wall within a quarter of an hour. The top and bottom cable entries keep patch cables and power cords separated, and the optional fan space on top ensures you can add active cooling when needed.

Full specifications

• Rack standard: 19-inch EIA-310-D
• Capacity: 6U
• External dimensions (WxDxH): 600 x 450 x 370 mm
• Static load capacity: 60 kg
• Material: SPCC cold-rolled steel
• Finish: Powder-coated, black (RAL 9005)
• Front door: Tempered glass, 180° opening, multi-point locking
• Side panels: Removable, lockable
• Cable entry: Top and bottom with brush strips
• Ventilation: Passive, fan-ready top
• Rack rails: Adjustable front and rear
• Assembly: Quick-assembly / flat pack
• Included: 2 keys, mounting hardware, cage nuts

Final note

The LANVIEW Quick Assembly Flat Pack 19 is a solid choice for installers who need a secure, neat, and space-saving rack solution without the long lead times of pre-assembled cabinets. With its steel chassis, thoughtful cable management, and tool-friendly assembly, it is built to perform in any indoor environment.
