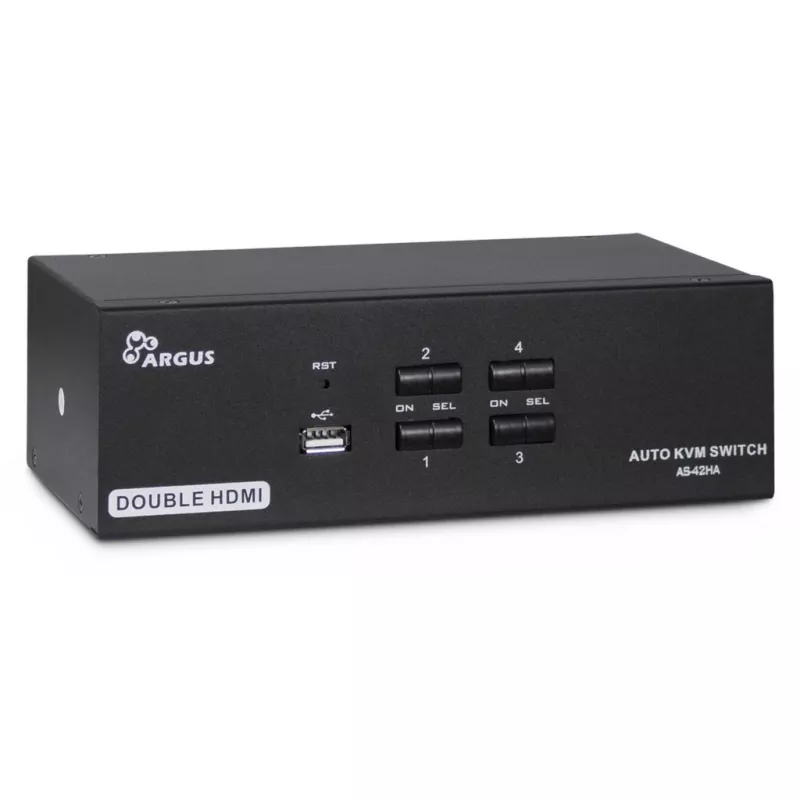

KVM Switch Inter-Tech AS-42HA HDMI

The KVM Switch Inter-Tech AS-42HA HDMI enables control of up to four computers from a single keyboard and mouse. Designed for desk or rack-top use, the switch provides HDMI video support with a maximum resolution of 1920 x 1440 pixels and standard USB interfaces for keyboard and mouse connections. The unit comes in a robust steel housing, measures 201 mm x 110 mm x 65 mm and operates from a 5V DC power supply, offering a compact, durable solution for multi-computer setups in offices, workstations and control rooms.

Advantages

The Inter-Tech AS-42HA HDMI combines HDMI video support and USB peripheral connectivity in one compact device. Its steel construction contributes to long-term durability and reliability, while an MTBF rating of 120,000 hours indicates extended operational life. A small footprint and a 0.92 kg weight make the switch easy to place on crowded desks or integrate into small installations. The unit’s straightforward connectivity simplifies switching between up to four computers without the need to move peripherals.

Suitable for

• Small office environments requiring control of multiple PCs from a single workstation
• Home offices where space-saving peripheral sharing is needed
• IT maintenance and test benches handling several systems sequentially
• Control stations or monitoring desks with multiple sources

Key specifications

• Number of computers controlled: 4
• Video port type: HDMI, supports up to 1920 x 1440 pixels
• Keyboard port type: USB
• Mouse port type: USB
• Housing material: Steel
• Power input: 5V DC
• Dimensions (W x D x H): 201 mm x 110 mm x 65 mm
• Weight: 0.92 kg
• Product colour: Black
• MTBF: 120,000 hours

How to use

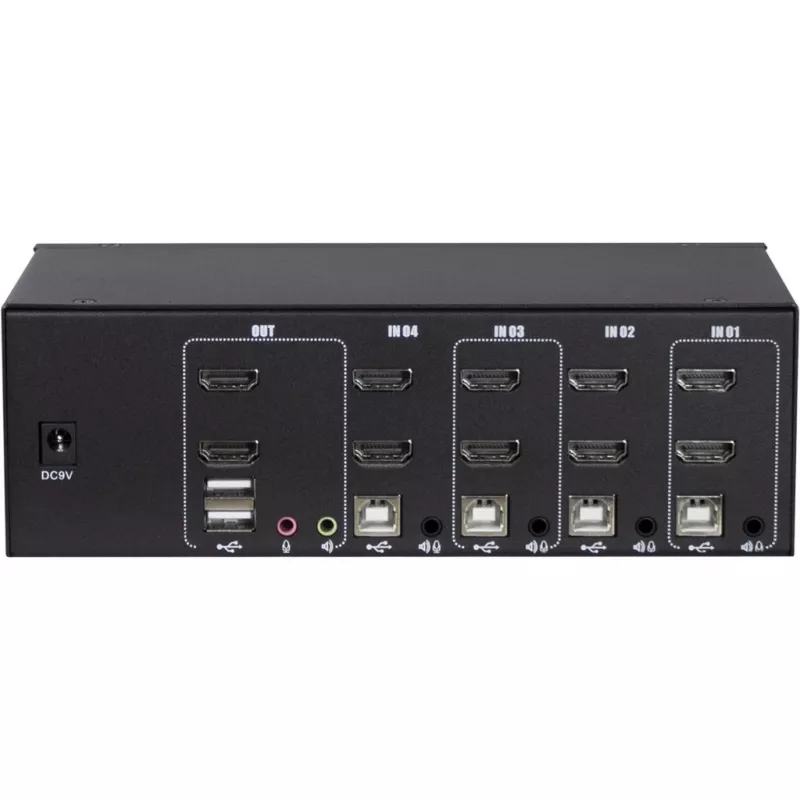

Place the KVM switch on a stable surface near the computers to be controlled and the shared peripherals. Connect each computer’s HDMI output and USB peripheral port to the corresponding input on the switch. Attach a single keyboard and mouse to the switch’s USB ports, and connect the HDMI output to the shared monitor. Apply the 5V DC power supply to the unit. Use the front panel controls or switching mechanism to select the active computer; peripherals and video will switch accordingly. Ensure cables are securely seated to avoid signal interruptions.

Recommendations

For reliable operation, use high-quality HDMI and USB cables of appropriate length to minimize signal degradation. Place the KVM switch in a well-ventilated location and avoid exposure to moisture or extreme temperatures. When switching frequently between systems, allow a brief pause for the operating system to re-detect USB peripherals after a change. Regularly inspect connectors and cables for wear to maintain consistent performance.
