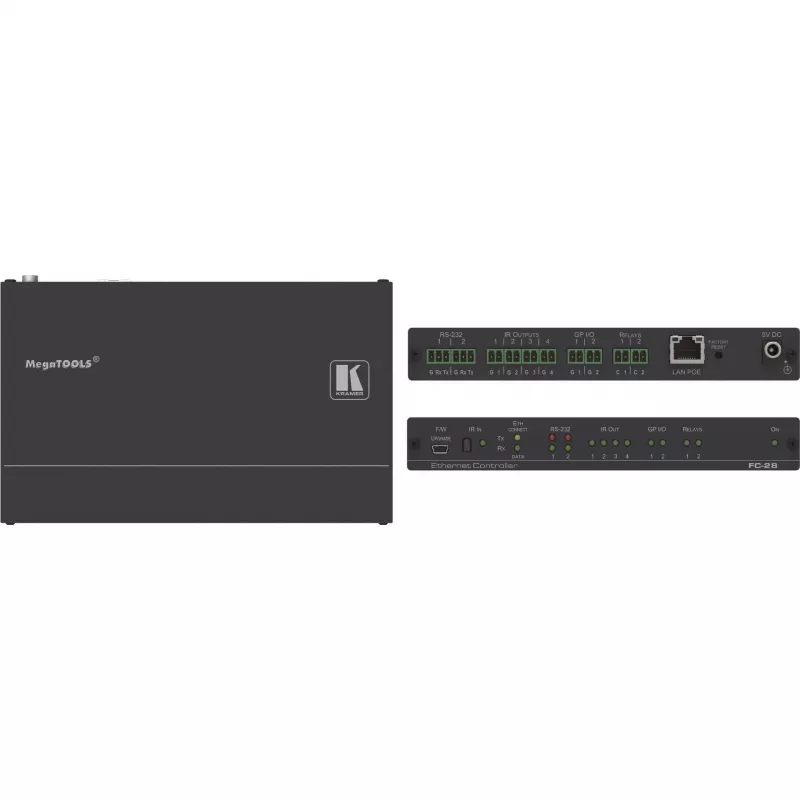

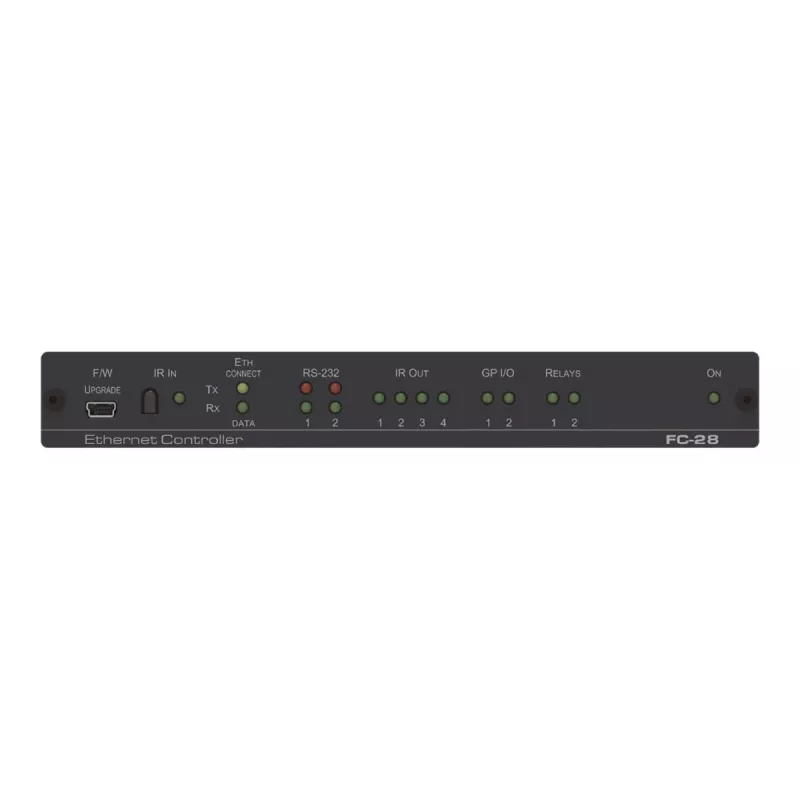

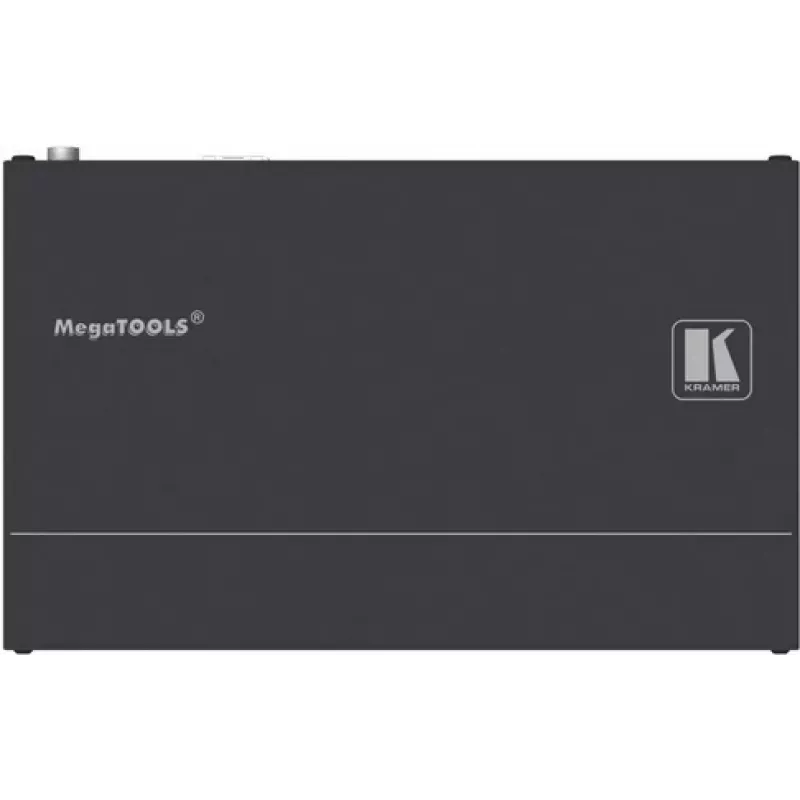

Kramer FC-28 Πύλη ελέγχου, 10 θύρες, Ethernet, RS-232, IR, Ψηφιακές Ε/Ε, Αναλογική είσοδος 30-80392090

In a compact AV control room, the Kramer FC-28 ties together projectors, screens, and legacy serial devices. This wired control gateway offers ten configurable ports, including Ethernet, RS-232, infrared, digital I/O, and analog inputs, making it a central hub for automation and monitoring.

Key specifications

• Total control ports: 10
• Ethernet: 1 x RJ-45 (10Base-T)
• Serial: 2 x RS-232 (3-pin terminal block)
• Infrared: 4 x IR (2-pin terminal block, configurable as input/output)
• Digital I/O: 4 x Digital I/O (3-pin terminal block, configurable as input/output)
• Analog inputs: 2 x Analog Input (3-pin terminal block, 0-10V)
• Control protocols: IP, RS-232, IR, K-NET™
• Power supply: 5V DC, 1A
• Max LAN data rate: 10 Mbps
• Enclosure: Compact desktop / wall-mountable

Why choose it

Built-in web pages and an open API allow integration with third-party control systems. The FC-28 supports K-NET™ for Kramer device networking, enabling centralized management without additional hardware.

Ideal use cases

• Classrooms and meeting rooms requiring control of multiple AV devices
• Legacy equipment integration via RS-232 and IR
• Sensor monitoring through digital I/O and analog inputs

Good to know

Operating temperature range: 0° to +40°C (32° to 104°F). Storage temperature: -40° to +70°C (-40° to 158°F). Humidity: 10% to 90% RHL, non-condensing.
