Kramer Electronics KAC-BAR-81-B10 μαύρη μονάδα ελέγχου LCD 20,3 cm 12V 3A

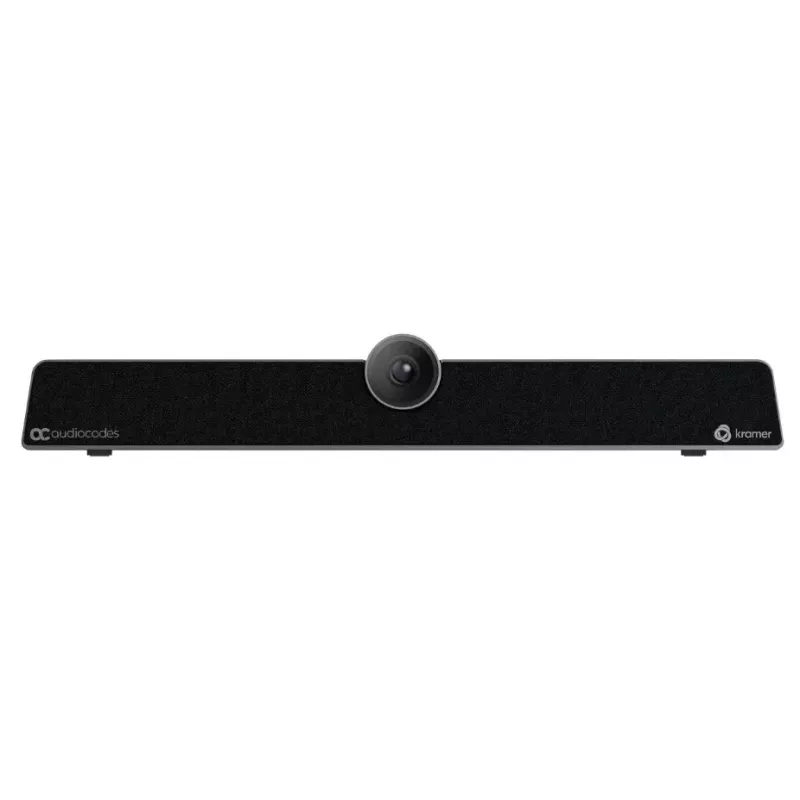

The Kramer/AudioCodes KAC-BAR-81 Collaboration Bar is a Microsoft Teams Rooms on Android 12 video bar designed for plug-and-play meeting deployment. It integrates Full HD video with an electronically controlled pan, tilt and 5x zoom camera, six microphones and built-in speakers, and an internal MTR compute module (KAC-200). The product is offered with the KAC–TCH–10 touch controller and is supplied in a black finish with compact dimensions suitable for meeting room setups.

Advantages

The KAC-BAR-81 provides Full HD imaging and 5x electronic zoom for clear video, while six microphones and integrated speakers ensure intelligible voice pickup and playback. Its Microsoft Teams Rooms on Android 12 certification simplifies meeting setup and compatibility, and the built-in MTR compute module reduces the need for external hardware. The plug-and-play design and included KAC–TCH–10 touch controller support straightforward installation and control.

Suitable for

• Small and medium meeting rooms
• Huddle spaces and collaboration areas
• Microsoft Teams video conferencing with content sharing

Key specifications

• Platform: Microsoft Teams Rooms on Android 12
• Camera: Full HD, electronic pan/tilt, 5x electronic zoom
• Microphones: 6 built-in microphones
• Audio: Integrated speakers

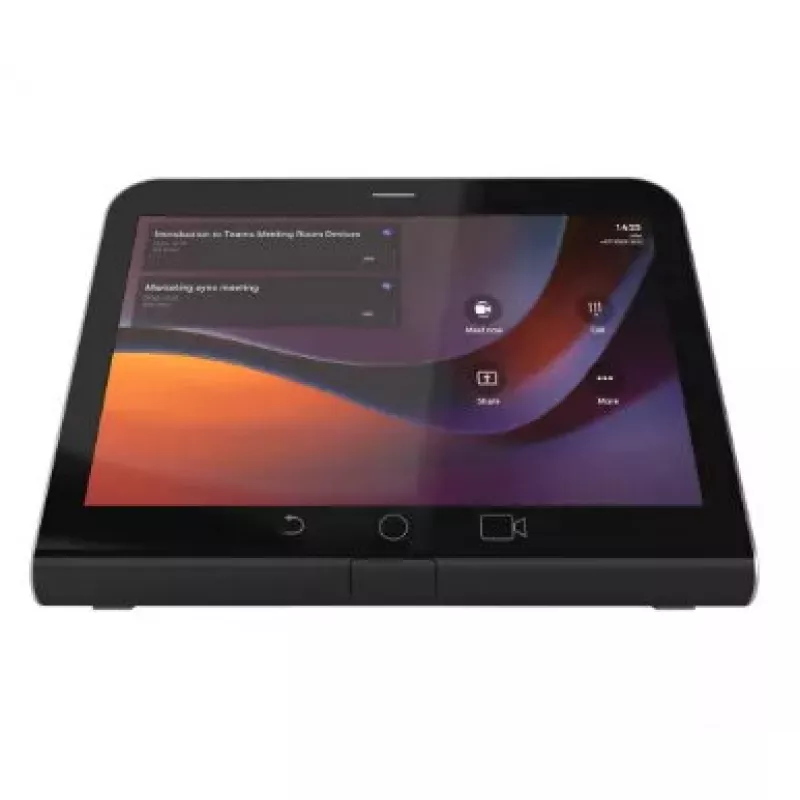

• Controller: KAC–TCH–10 included

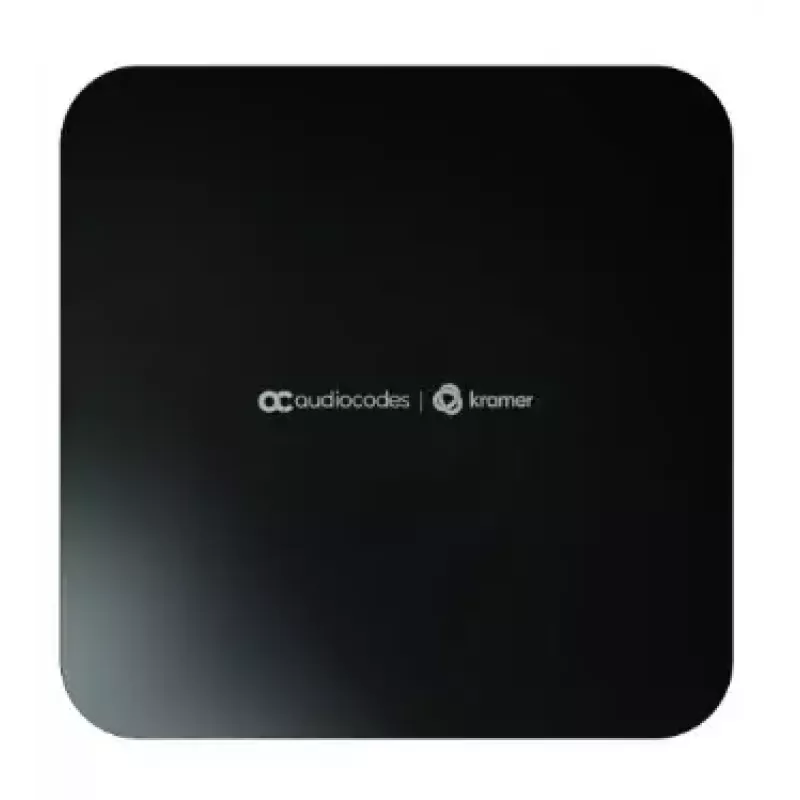

• MTR Compute: KAC–200 internal
• Display (controller): 20.3 cm (8 in) LCD
• Power: DC 12 V, 3 A
• Dimensions (controller): 212 mm × 128.4 mm × 152.8 mm
• Weight: 0.9 kg
• Colour: Black

How to use

Position the KAC-BAR-81 below or above the room display and connect power and network according to site cabling. Use the included KAC–TCH–10 touch controller to start and manage Microsoft Teams meetings, control camera pan/tilt/zoom and access content-sharing functions. The internal KAC-200 MTR compute module runs the Teams Rooms experience, so no separate compute device is required for standard room deployments.

Recommendations

For best audio pickup, locate the bar centrally on the room’s front wall and keep the microphone area free from obstructions. Ensure the device receives stable network connectivity and adequate power (12 V, 3 A). For optimal control and user experience, pair the bar with the supplied KAC–TCH–10 touch controller.
