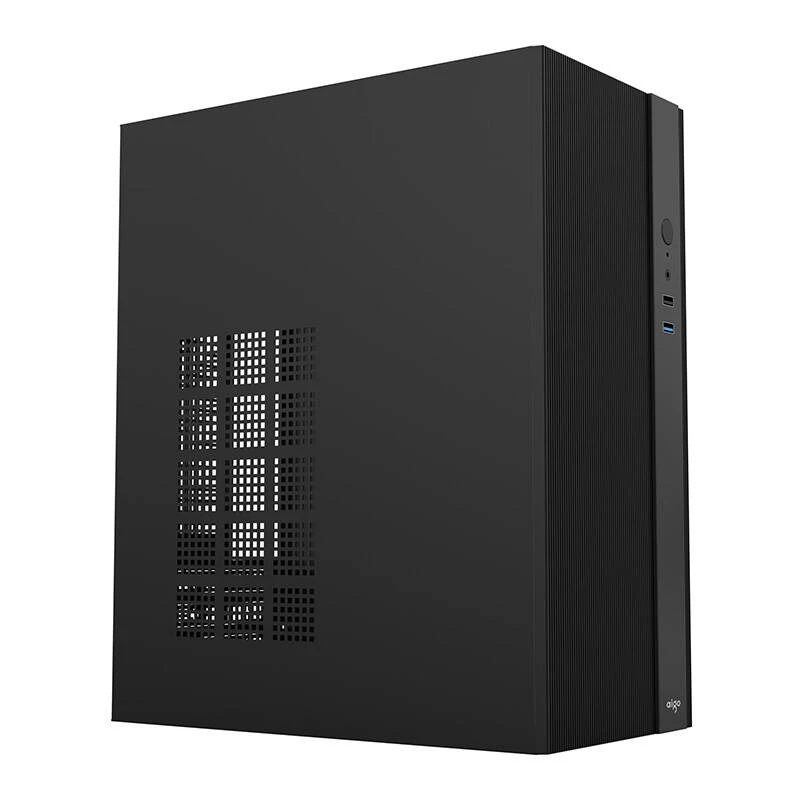

Κουτί υπολογιστή Darkflash Q15 ATX μαύρο

The Darkflash Q15 computer case is a compact mid-tower designed for small workspaces while accommodating standard M-ATX and ITX motherboards. It supports multiple storage configurations (SSD x1 + HDD x2 or SSD x2 + HDD x1), a graphics card up to 260 mm long and a CPU cooler up to 135 mm high. The front I/O includes USB 3.0 and USB 2.0 ports plus a headphone/speaker output, and the power supply mounts at the top for improved internal airflow.

Advantages

The chassis offers a space-saving minimalist design and straightforward component access via the left panel. It supports four expansion slots and flexible disk mounting options. Front-panel USB 3.0 and USB 2.0 connectors plus a headphone jack provide common connectivity. The top-mounted PSU location helps with heat dissipation and internal layout simplicity.

Suitable for

• Compact gaming or home-office PCs based on M-ATX or ITX motherboards
• Builds requiring up to two storage drives plus one SSD
• Systems with mid-length graphics cards (up to 260 mm)
• Quiet or space-limited setups where compact size is important

Key specifications

• Manufacturer: Darkflash
• Model: Q15
• Color: Black
• Supported motherboard standards: M-ATX, ITX
• Side/front panels: SPCC
• Dimensions: 293 × 60 × 382 mm
• Disk bays: SSD x1 + HDD x2 or SSD x2 + HDD x1
• Expansion slots: 4
• Maximum GPU length: 260 mm
• Maximum CPU cooler height: 135 mm
• PSU mounting position: Top
• Preinstalled fans: 0

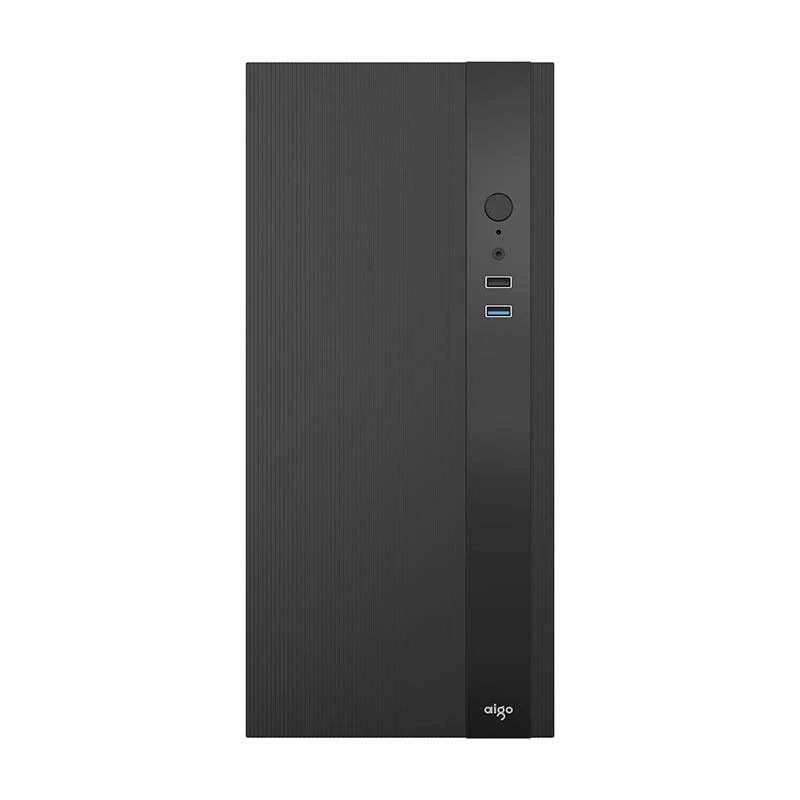

• Front connectors: USB 3.0 x1, USB 2.0 x1
• Headphone/speaker output: Yes

How to use

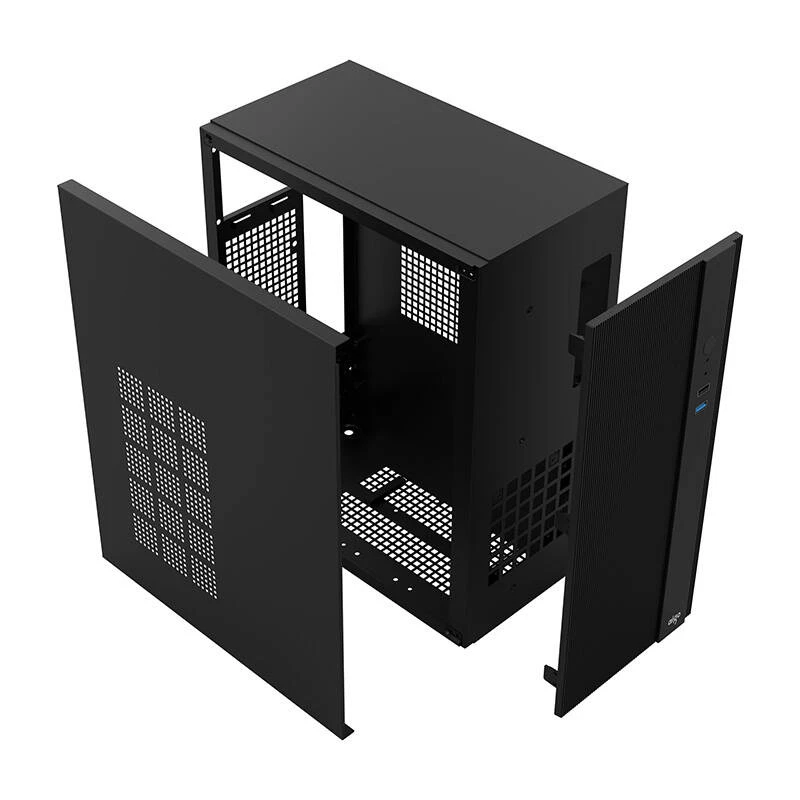

Install an M-ATX or ITX motherboard and secure the power supply in the top compartment. Mount storage drives using the provided bays according to the chosen configuration (SSD x1 + HDD x2 or SSD x2 + HDD x1). Fit a CPU cooler not exceeding 135 mm in height and a graphics card no longer than 260 mm. Use the front panel USB 3.0/2.0 ports and headphone jack for peripherals and audio connections. Access components by removing the left side panel for assembly and maintenance.

Recommendations

For optimal airflow, plan fan placement and cable routing during assembly and verify that the chosen GPU and cooler dimensions comply with the specified maximums (260 mm GPU, 135 mm cooler). Consider adding case fans if additional active cooling is required, since no fans are preinstalled.
