Κουτί υπολογιστή Darkflash DB460M Micro ATX λευκό

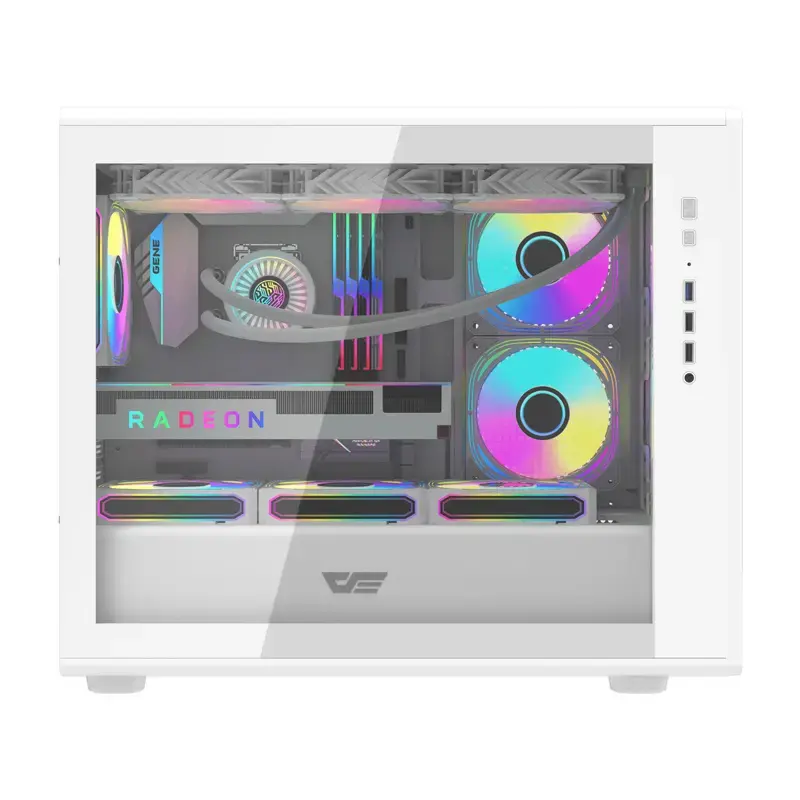

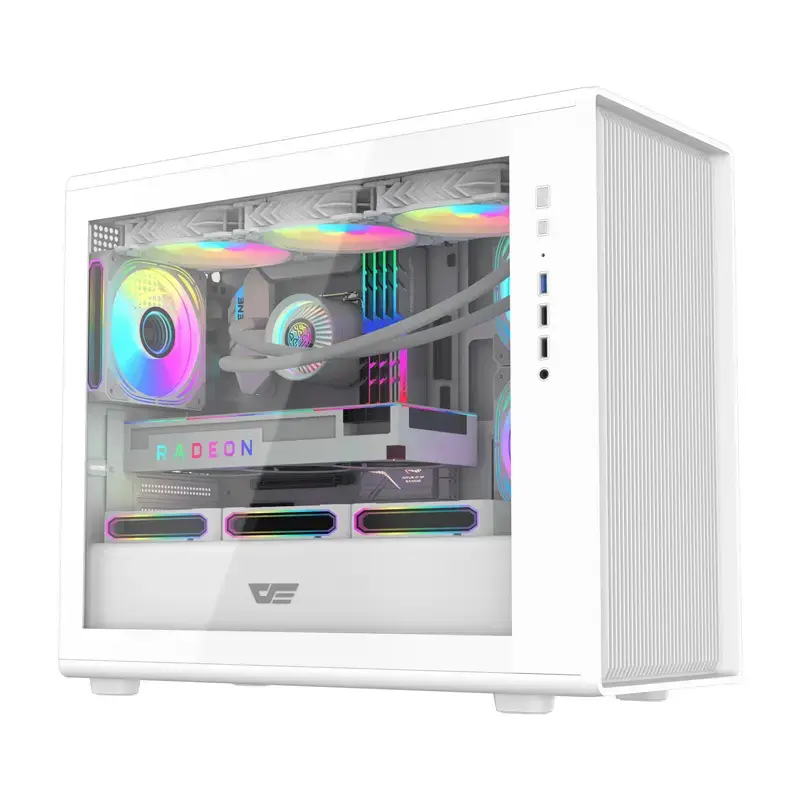

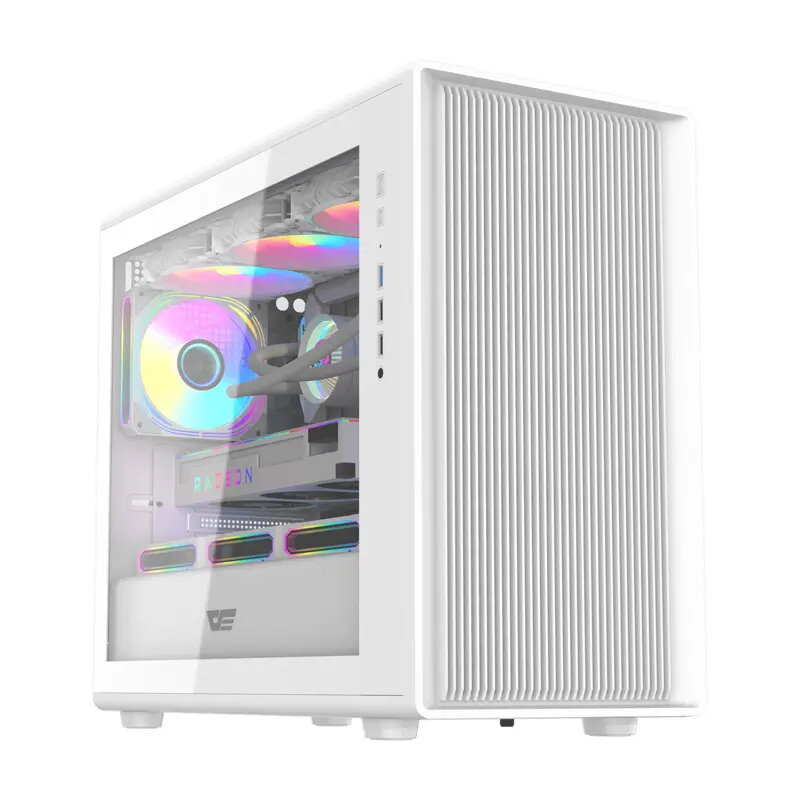

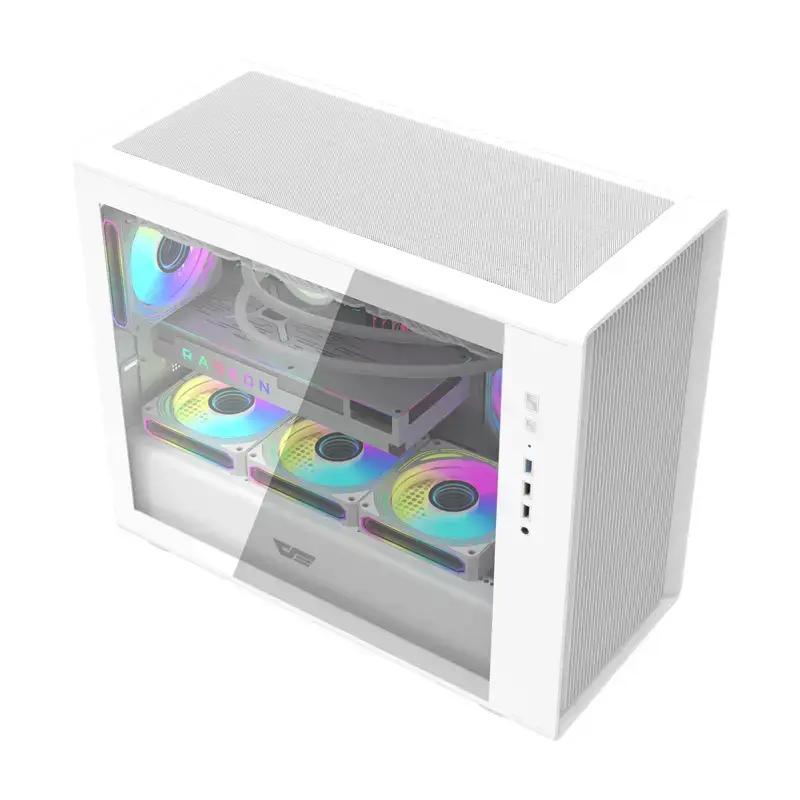

Darkflash DB460M is a Micro-ATX computer case in white with a tempered glass side panel and a mesh front designed to support efficient airflow and component accessibility. It accommodates M-ATX and ITX motherboards, offers space for graphics cards up to 420 mm, supports CPU coolers up to 174 mm, and can house a bottom-mounted ATX power supply. The chassis accepts multiple fan and radiator configurations to suit air- or water-cooled systems.

Advantages

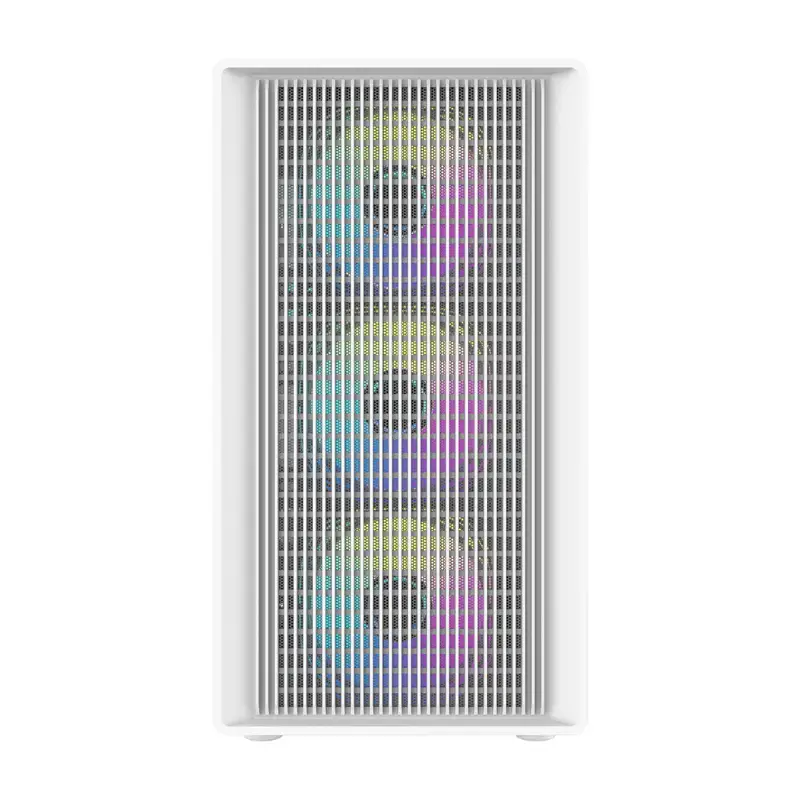

The case combines a tool-free tempered glass clamshell side panel for fast access, a full mesh front for improved ventilation, and a roomy interior that simplifies component installation and upgrades. It supports extensive cooling options including up to twelve 120 mm fans or a 360 mm radiator, and provides front-panel USB 3.0 and USB 2.0 ports for convenient connectivity.

Suitable for

• Gaming PC builds with M-ATX or ITX motherboards
• Systems requiring strong airflow or custom air cooling setups
• Small-form-factor water-cooled builds with up to a 360 mm radiator
• Upgradable rigs where easy access and component replacement are needed

Key specifications

• Supported motherboard formats: M-ATX, ITX
• Maximum graphics card length: 420 mm
• Maximum CPU cooler height: 174 mm
• Maximum PSU length: 240 mm (bottom-mounted)
• Drive bays: 2 x 3.5" HDD, 2 x 2.5" SSD
• Expansion slots: 4
• Fan support: up to 12 x 120 mm or 4 x 140 mm; mounting locations — Rear 120 mm x1, Top 120 mm x3 / 140 mm x2, Bottom 120 mm x3, Front 120 mm x3 / 140 mm x2
• Water-cooling support: Top 360/280/240 mm, Rear 120 mm
• Front I/O: USB 3.0 x1, USB 2.0 x2, HD Audio
• Side panel: Tool-free tempered glass clamshell
• Material: 0.5 mm SPCC
• Color: White
• Dimensions (H×W×D): 410 × 220 × 470 mm

How to use

Open the tempered glass clamshell side panel without tools to access the interior. Install the M-ATX or ITX motherboard onto the standoffs, fit the PSU in the bottom compartment, and mount storage drives in the designated 3.5" and 2.5" bays. Position the GPU (up to 420 mm) and CPU cooler (up to 174 mm) clear of obstructions. Arrange fans according to your cooling preference or install a radiator up to 360 mm at the top. Connect front-panel USB and audio cables to the motherboard headers and route cables through the case for tidy airflow.

Ieteicamā lietošana

For best thermal performance, combine a front-to-rear airflow setup with intake fans at the front and exhaust at the top and rear; ensure cable routing does not block airflow paths and verify component clearances before final installation.
