Κουτί διακομιστή Supermicro SuperChassis 510T-203B Rack μαύρο

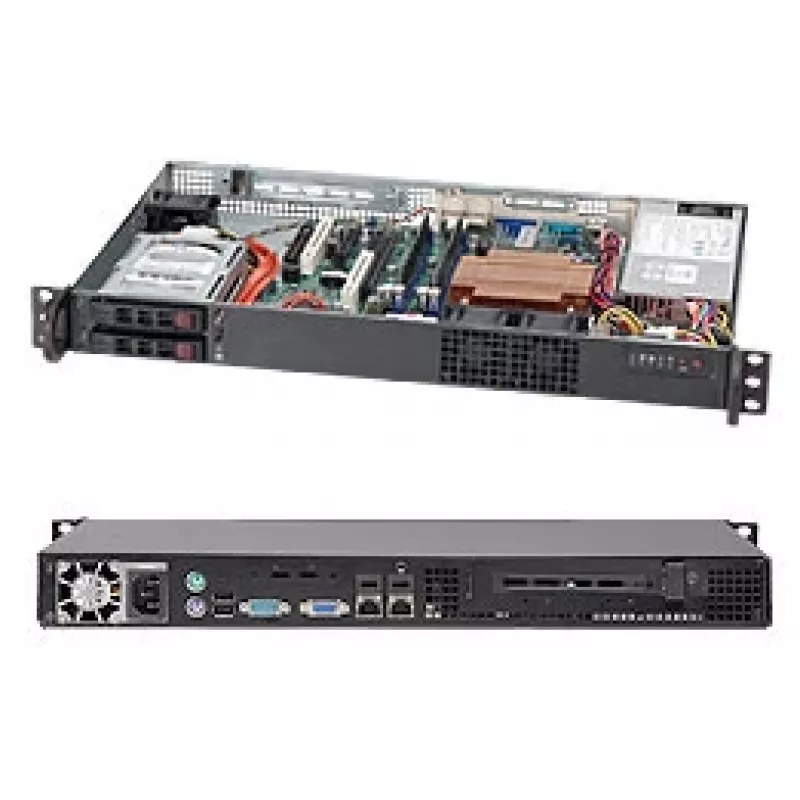

The Supermicro SuperChassis 510T-203B Rack Black is a compact 1U rack server chassis designed for space-constrained server environments. It includes a 200 W 80 PLUS Gold power supply, supports two 2.5" hot-swap SAS/SATA drives and provides a single low-profile PCI expansion slot. Measuring 437 mm wide, 287 mm deep and 43 mm high and weighing approximately 5 kg, the chassis offers a balance of small footprint and practical functionality for entry-level rack deployments.

Advantages

This rack chassis offers high power efficiency with a 200 W 80 PLUS Gold power supply, quiet operation with multiple cooling fans, and convenient front-access hot-swap bays for 2.5" drives. Its extra-compact size and lightweight design simplify installation in dense rack configurations while maintaining necessary server features such as reset and power switches and status LEDs.

Suitable for

• Entry-level rack servers in small offices or branch locations
• Storage appliances using 2.5" SAS/SATA drives
• Compact network appliances and low-power compute nodes

Key specifications

• Model: Supermicro SuperChassis 510T-203B (CSE-510T-203B)
• Form factor: 1U rack
• Power supply: 200 W, 80 PLUS Gold (included)
• Drive bays: 2 × 2.5" hot-swap SAS/SATA
• Expansion slot: 1 × low-profile PCI
• Cooling: 3 × 8500 RPM fans
• Front controls/indicators: power switch, reset button, 5 LED indicators
• Dimensions (W×D×H): 437 × 287 × 43 mm
• Weight: approx. 5 kg
• Color: Black

How to use

Install the chassis in a standard 19" rack occupying a single U of rack space. Mount compatible 2.5" SAS or SATA drives into the front hot-swap trays and connect system components to the onboard power and expansion interfaces. Use the front power and reset buttons for basic control and observe the LED indicators for system and drive status. Ensure proper airflow by leaving clearance around the chassis and verifying fan operation during startup.

Recommendations

For reliable operation, use enterprise-class 2.5" SAS/SATA drives and monitor intake temperature; maintain adequate rack ventilation and perform periodic fan and filter checks. Verify the 200 W supply meets the total power needs of installed components before deployment.
