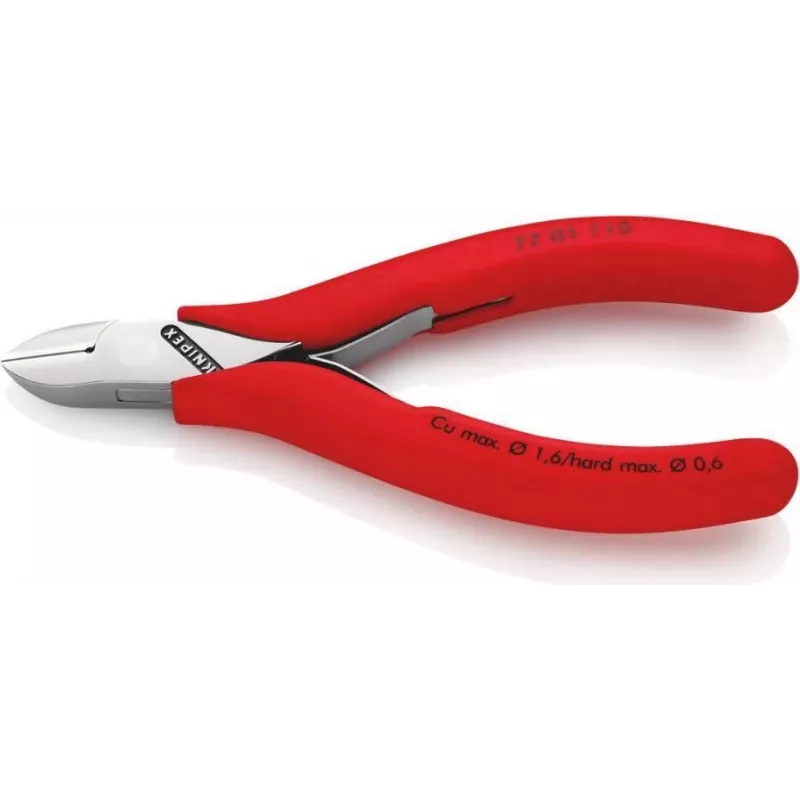

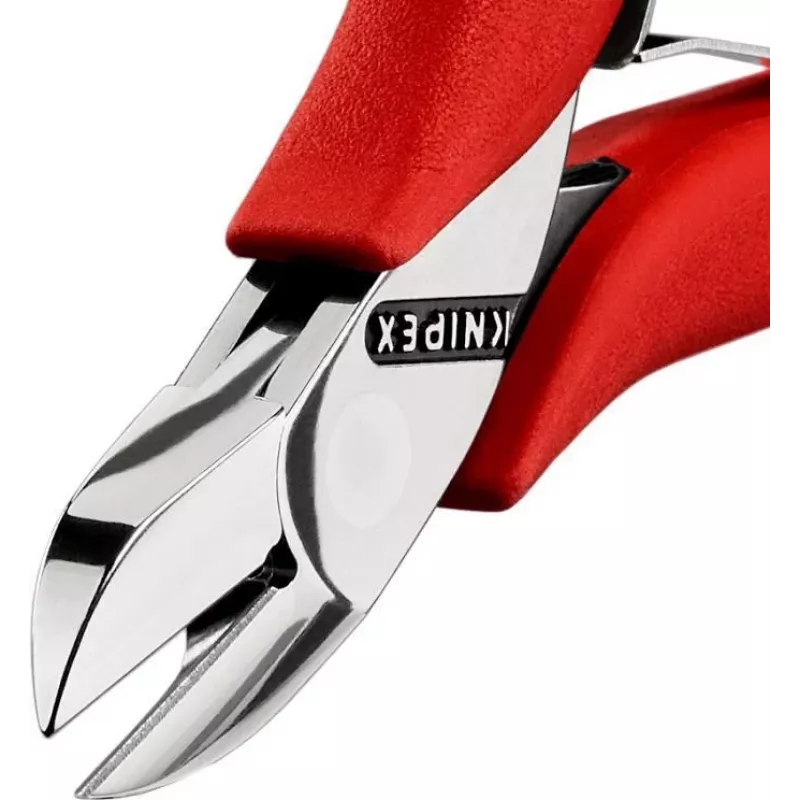

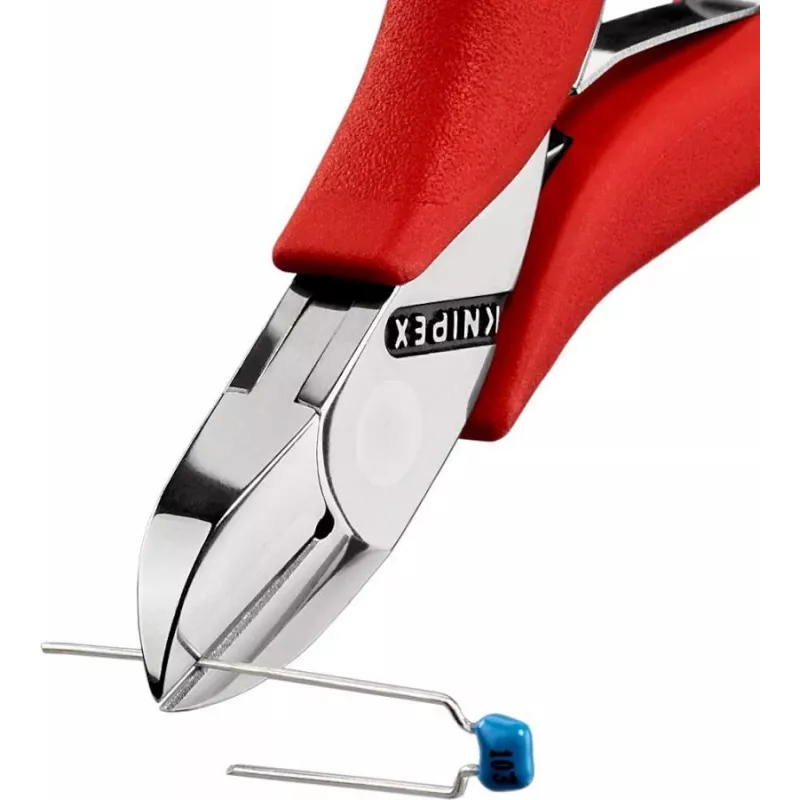

KNIPEX 77 01 115 Electronic Super Knips® πλαϊνός κόφτης, VDE-μονωμένος, 115 mm

Diagonal cutter for precision cutting in electronics and fine mechanics. Mirror-polished, pointed, slim head with box joint and opening spring for fatigue-free work. Cutting capacity soft wire 0.2–1.6 mm, cutting edge hardness approx. 64 HRC. VDE insulated according to IEC 60900 / DIN EN 60900. Length 115 mm, weight 67 g, handle material multi-component plastic.

Advantages

Flush cut, ergonomic multi-component handle, special tool steel, polished head.

Suitable for

• Electronics assembly and repair
• Fine mechanics
• Cutting soft wires up to 1.6 mm

Key specifications

• Product type: Diagonal cutter
• Length: 115 mm
• Weight: 67 g
• Material: Special tool steel
• Handle material: Multi-component plastic
• VDE insulated: Yes
• Insulation standard: IEC 60900, DIN EN 60900
• Cutting capacity soft wire: 0.2–1.6 mm
• Cutting edge hardness: Approx. 64 HRC
• Head type: Polished
• Joint type: Box joint
• Opening spring: Yes
• Head shape: Pointed, slim
• Surface finish: Mirror polished
• Handle design: Ergonomic
• Cutting edge type: Flush cut
• Number of cutting edges: 2
• Standard: DIN ISO 9654
• Tool series: Electronic Super Knips®

Recommendations

Ideal for precise cutting tasks in electronics where VDE insulation is required.
