Κλέμα καλωδίου Fischer 94675 γκρι 100 τεμ.

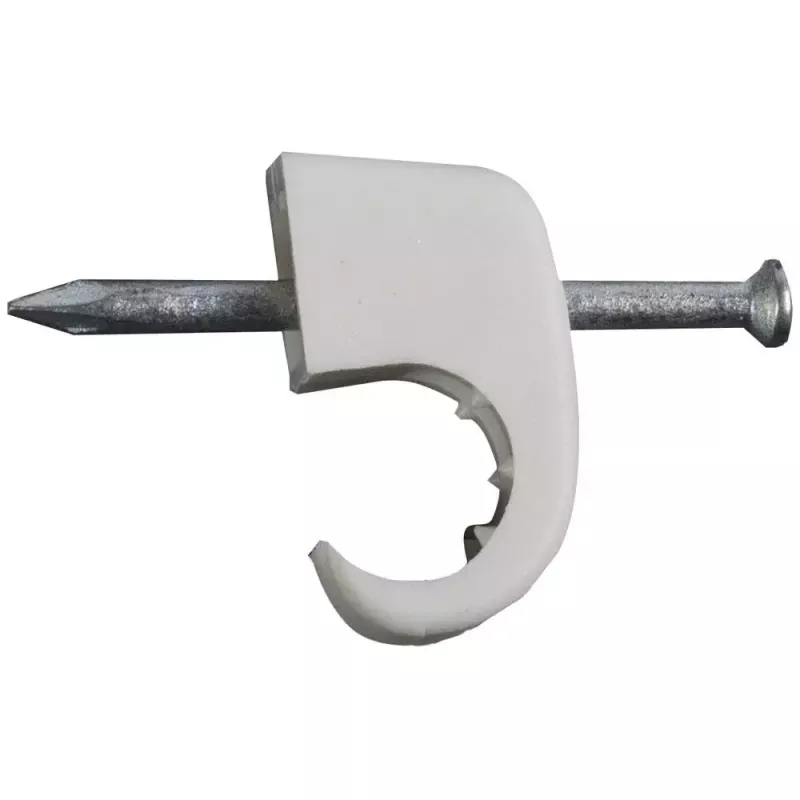

The fischer nail clamp MNS is a pre-assembled fastening element combining a zinc-plated nail and a clamp designed to secure cables quickly and reliably. The clamp is positioned over the cable and the nail is driven in with a hammer. This version is supplied in grey and comes in a pack of 100 pieces; it accommodates cable bundles with diameters from 10 mm to 14 mm and is suitable for use in wood, wood-based materials, gypsum board, aerated concrete and vertically perforated brick.

Advantages

The pre-assembled zinc-plated nail allows rapid single-step installation, reducing assembly time. The compact clamp design requires little space, making it suitable for narrow or confined installation locations. The MNS clamp covers cable diameters from 10 mm to 14 mm, enabling consistent fixation of common cable bundles.

Suitable for

• Fixing electrical and data cable bundles with diameters 10–14 mm
• Indoor and sheltered installations in wood and wood-based materials
• Mounting on gypsum board and lightweight masonry (aerated concrete, vertically perforated brick)
• Quick cable runs where space is limited

Key specifications

• Brand: FISCHER
• Model / MPN: 94675
• EAN: 4006209946756
• Type: Pre-assembled nail clamp (MNS)
• Color: Grey
• Pack quantity: 100 pcs
• Cable bundle diameter: 10–14 mm (1.0–1.4 cm)
• Suitable substrates: Wood, wood-based materials, gypsum board, aerated concrete, vertically perforated brick

How to use

Place the cable bundle into the clamp loop, position the clamp on the chosen substrate, and drive the pre-assembled zinc-plated nail into the substrate using a hammer until the clamp sits firmly. Ensure the clamp is aligned and that the cable is not crushed during nailing. For hollow or brittle substrates, confirm that the substrate can accept a driven nail or use an alternative fixing method if necessary.

Recommendations

The clamp is intended for securing insulated cables within the specified diameter range in solid and lightweight building materials. Do not use for supporting heavy loads or as a substitute for conduit where mechanical protection is required. Store the clamps dry and protected from corrosive environments to preserve the zinc plating.
