Klauke μονωμένο ακροχιτώνιο 1,5 mm², μήκος χιτωνίου 8 mm, μαύρο, 100 τεμ. (ST9728)

Precision-engineered for reliable crimp connections, this insulated wire end ferrule handles 1.5 mm² fine-stranded conductors with a tin-plated copper sleeve and funnel-shaped entry for effortless insertion.

Overview

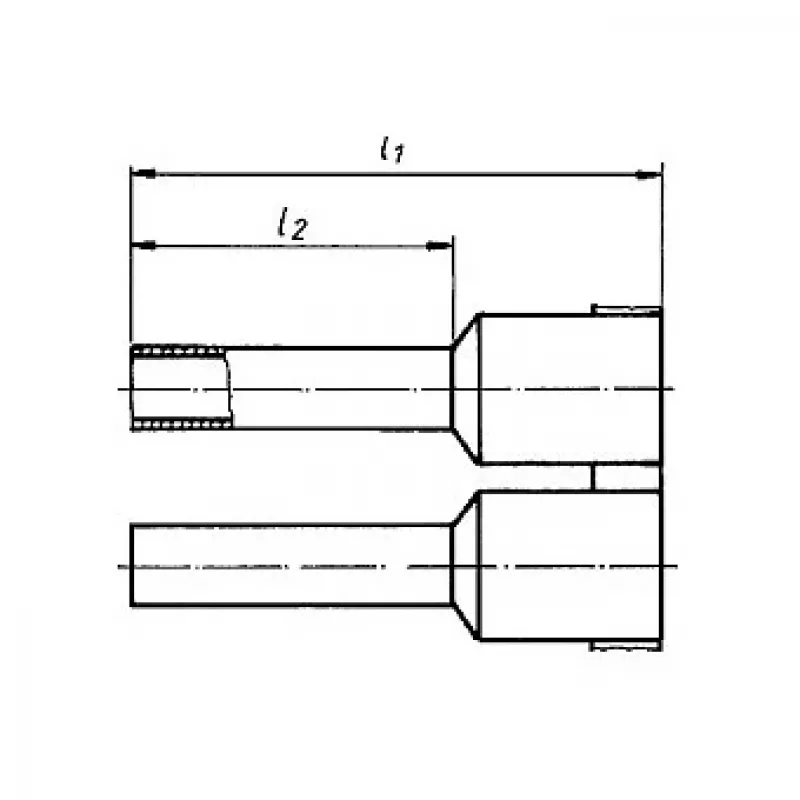

The Klauke ST9728 is a black insulated wire end ferrule compliant with DIN 46228 Part 4. It features an 8 mm sleeve length and 15 mm total length, designed for fine-stranded and super fine-stranded conductors. The polypropylene insulation offers temperature resistance from -40 °C to +105 °C and a UL 94 V-2 flammability rating.

What stands out

• Halogen-free polypropylene insulation for safer applications
• Funnel-shaped entry simplifies conductor insertion
• Tin-plated electrolytic copper sleeve ensures excellent conductivity and corrosion resistance
• Pack of 100 pieces for production efficiency

Technical details

• Nominal cross-section: 1.5 mm²
• Color code: Black (DIN 46228 Part 4)
• Sleeve length: 8 mm
• Total length: 15 mm
• Sleeve material: Electrolytic copper, tin-plated
• Insulation material: Polypropylene (PP)
• Temperature resistance: -40 °C to +105 °C
• Flammability rating: UL 94 V-2
• Connection type: Crimp

Our verdict

A dependable choice for professional electrical work, the Klauke ST9728 combines precise dimensions with halogen-free insulation to ensure secure, long-lasting crimp connections.
