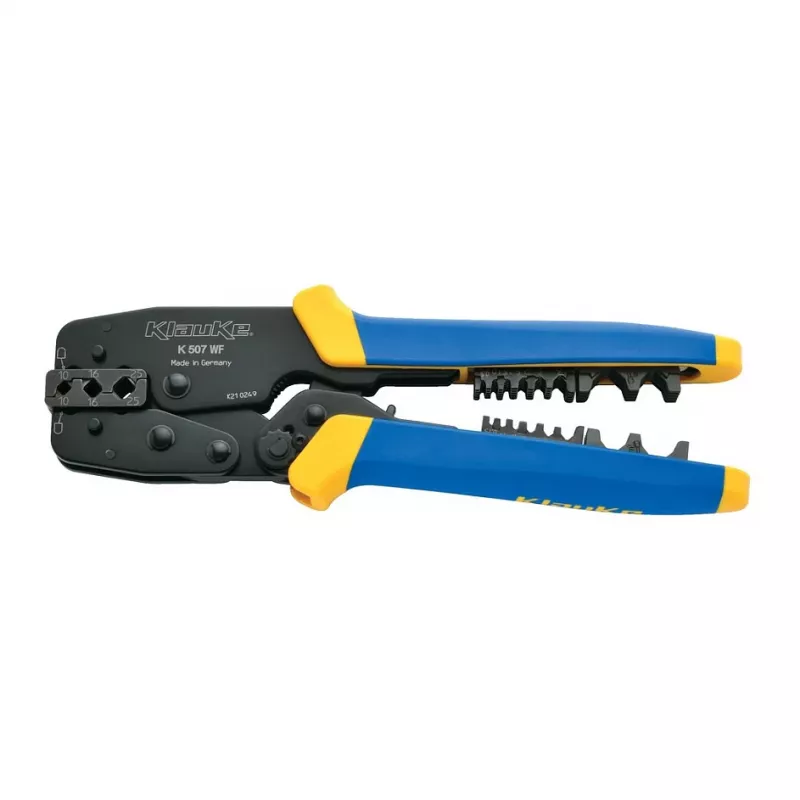

KLAUKE K507WF Πένσα πρέσας για ακροδέκτες 0,5-50 mm²

The KLAUKE K507WF is a professional hand crimping tool designed for wire end sleeves (Aderendhülsen) from 0.5 to 50 mm². It features a self-adjusting mechanism and force lock for consistent, high-quality crimps. The ergonomic two-component handles ensure comfortable operation, while the robust construction guarantees durability in demanding environments.

Advantages

Self-adjusting crimping range eliminates the need for interchangeable dies. Force lock ensures complete crimping cycles for reliable connections. Release mechanism allows correction of incorrect crimps. Ergonomic handles reduce fatigue during extended use.

Suitable for

• Wire end sleeves (insulated and uninsulated) according to DIN 46228 Part 1 + 4
• Electrical installations, control cabinets, and industrial wiring
• Professional electricians and maintenance technicians

Key specifications

• Crimping range: 0.5 - 50 mm²
• Crimping profile: Square crimp (Vierkantverpressung)
• Self-adjusting: Yes
• Force lock: Yes
• Release mechanism: Yes
• Handle design: Ergonomic two-component handles
• Material: High-quality special steel
• Standards: DIN 46228 Part 1 + 4

Recommendations

For best results, use with KLAUKE wire end sleeves. The self-adjusting feature simplifies operation and reduces setup time. Ideal for repetitive crimping tasks where consistency is critical.
