Klauke επίπεδος ακροδέκτης 1,5-2,5 mm² 730/AZ

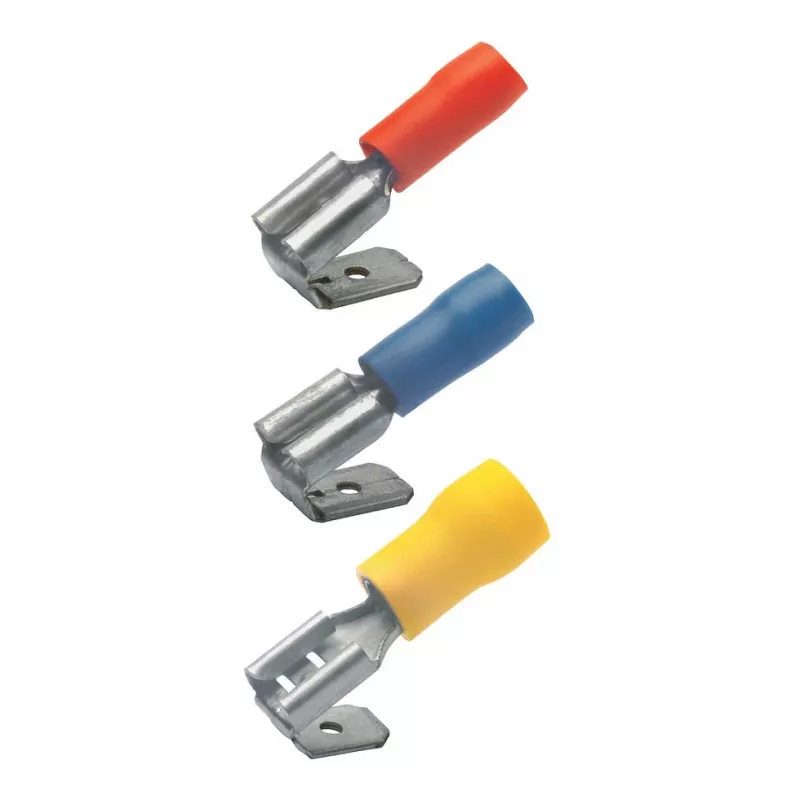

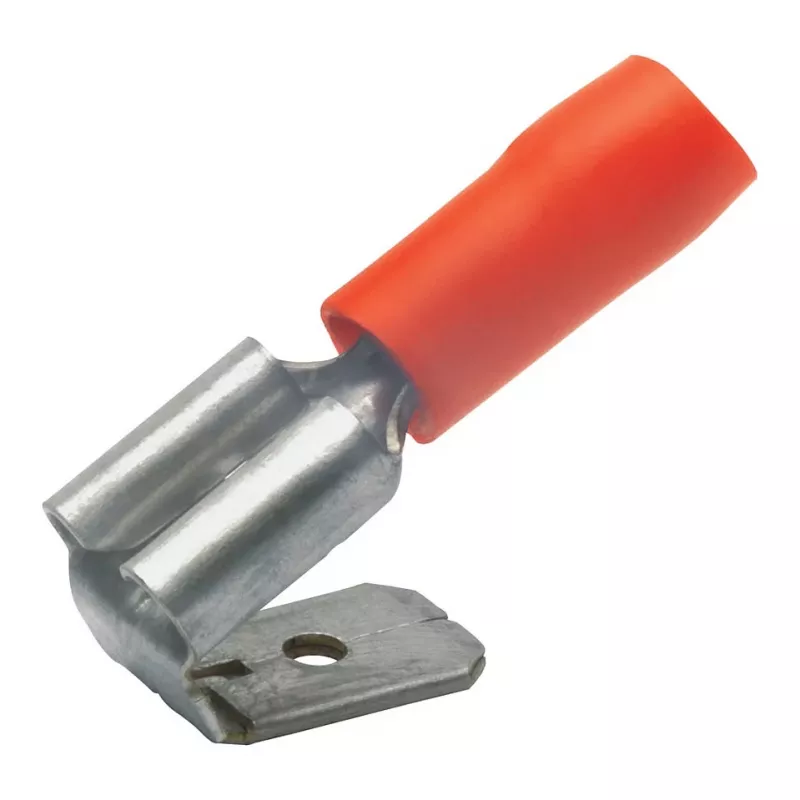

The Klauke 730/AZ is a high-quality flat receptacle (female) terminal designed for reliable crimp connections in electrical installations. Manufactured from electrolytic copper with a tin-plated surface, it ensures excellent conductivity and corrosion resistance. Suitable for wire cross-sections from 1.5 to 2.5 mm² (16-14 AWG) and a tab width of 6.3 mm, this uninsulated terminal meets DIN 46247 standards and is halogen-free and RoHS compliant.

Advantages

• High conductivity electrolytic copper with tin plating for long-lasting performance
• Funnel entry for easy wire insertion
• Wide temperature range from -40 °C to +125 °C
• Halogen-free and RoHS compliant for environmental safety

Suitable for

• Electrical wiring and cable assembly
• Automotive and industrial applications
• Control cabinets and switchgear

Key specifications

• Terminal Type: Flat Receptacle (Female)
• Wire Cross-Section: 1.5 - 2.5 mm² (16-14 AWG)
• Tab Width: 6.3 mm
• Tab Thickness: 0.8 mm
• Insulation: Uninsulated
• Material: Electrolytic Copper (E-Cu), Tin-plated
• Connection Method: Crimp
• Overall Length: Approx. 19.5 mm
• Operating Temperature: -40 °C to +125 °C
• Standard: DIN 46247
• Packaging Unit: 100 pieces

Recommendations

For optimal crimping results, use a suitable crimping tool designed for uninsulated terminals. Ensure the wire strip length matches the terminal barrel length.
