Κιτ τοποθέτησης Digitus DA-70434

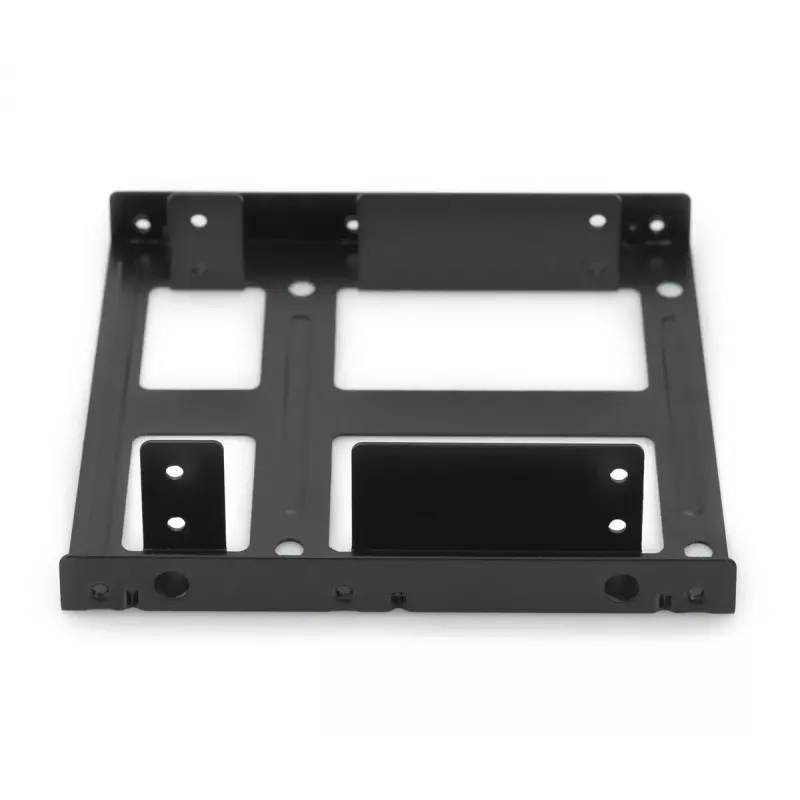

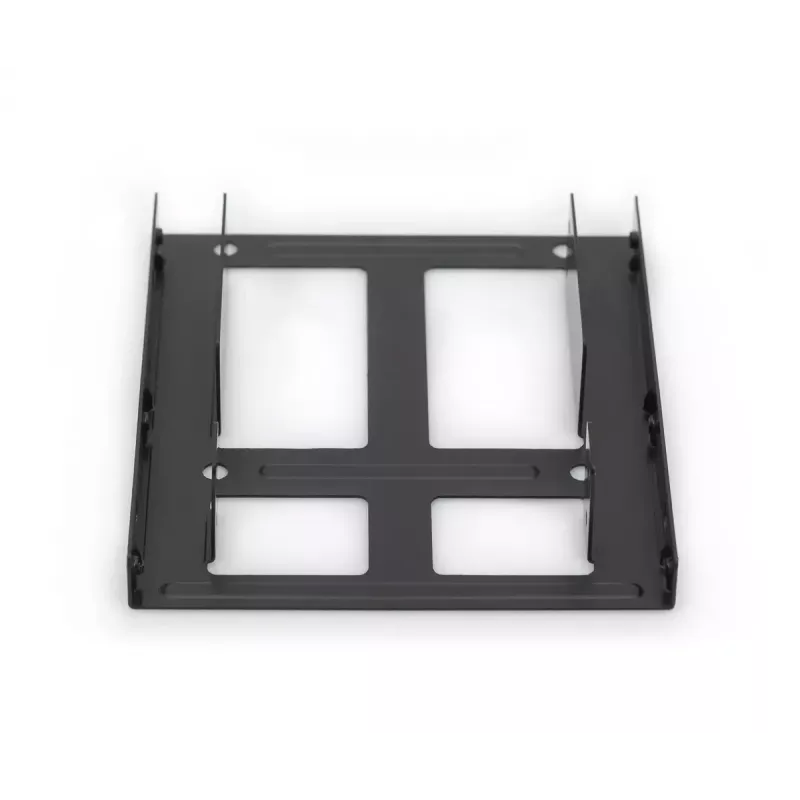

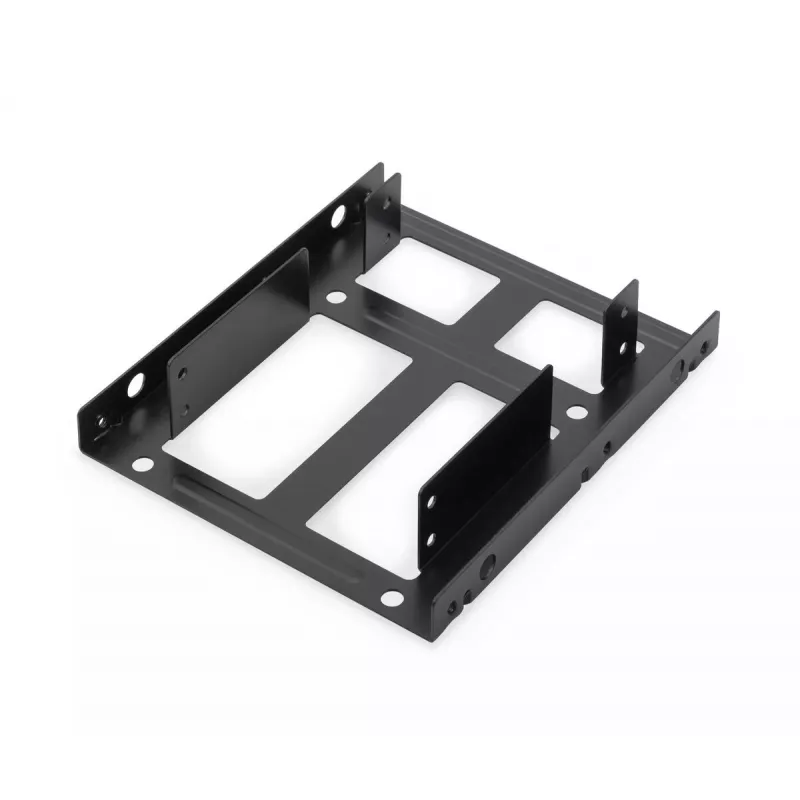

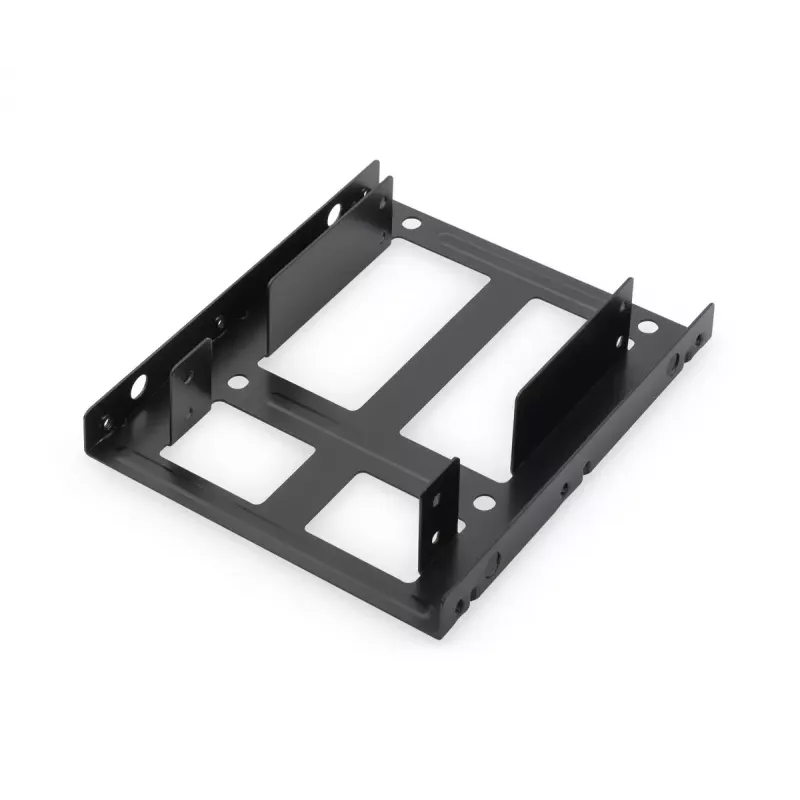

The Mounting Kit Digitus DA-70434 is a metal installation frame that fits into a standard 3.5" drive bay and holds two 2.5" SSD or HDD drives. It includes the cable set and mounting accessories required to connect and power the drives, allowing you to expand internal storage and, when using SSDs, achieve faster data access.

Advantages

This mounting kit supports two 2.5" drives in a single 3.5" bay, is made of durable metal for stable installation, and is supplied with all necessary screws, SATA data cables and Y power cables compatible with SATA and IDE power connectors. The compact dimensions make it suitable for most universal chassis types and simplify fitting and cable routing.

Suitable for

• Expanding internal storage with two 2.5" SSD or HDD drives
• Upgrading a desktop PC to include SSDs for faster system and application access
• Installing additional drives in small or standard ATX/microATX cases

Key specifications

• Model: Digitus DA-70434
• Supports: 2 × 2.5" HDD/SSD
• Material: Metal
• Colour: Black
• Dimensions (W × D × H): 115 mm × 101 mm × 23 mm
• Includes: mounting screws, SATA data cables, Y power cable (for SATA and IDE power)

How to use

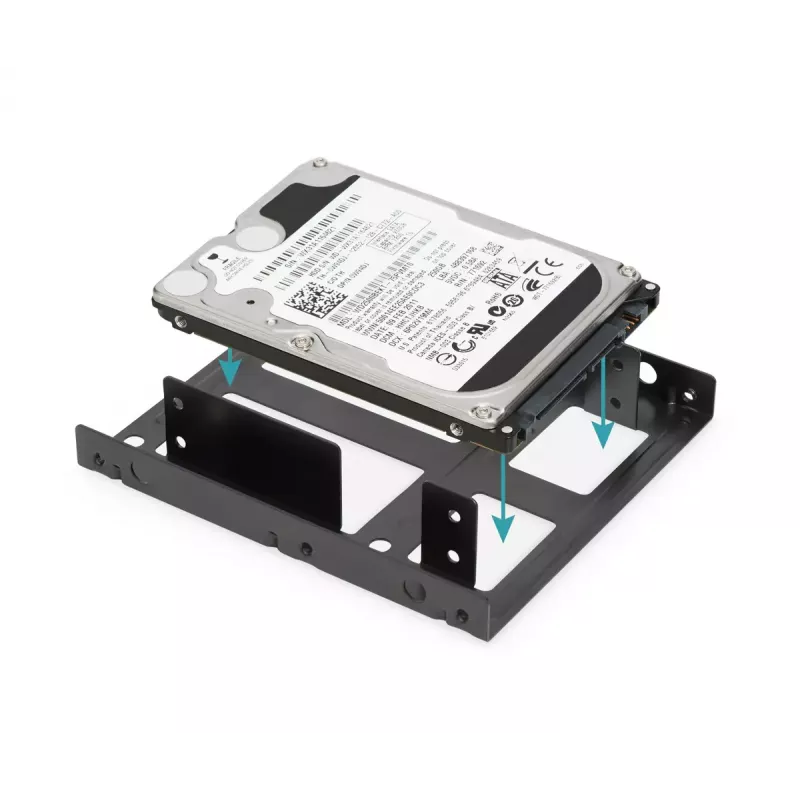

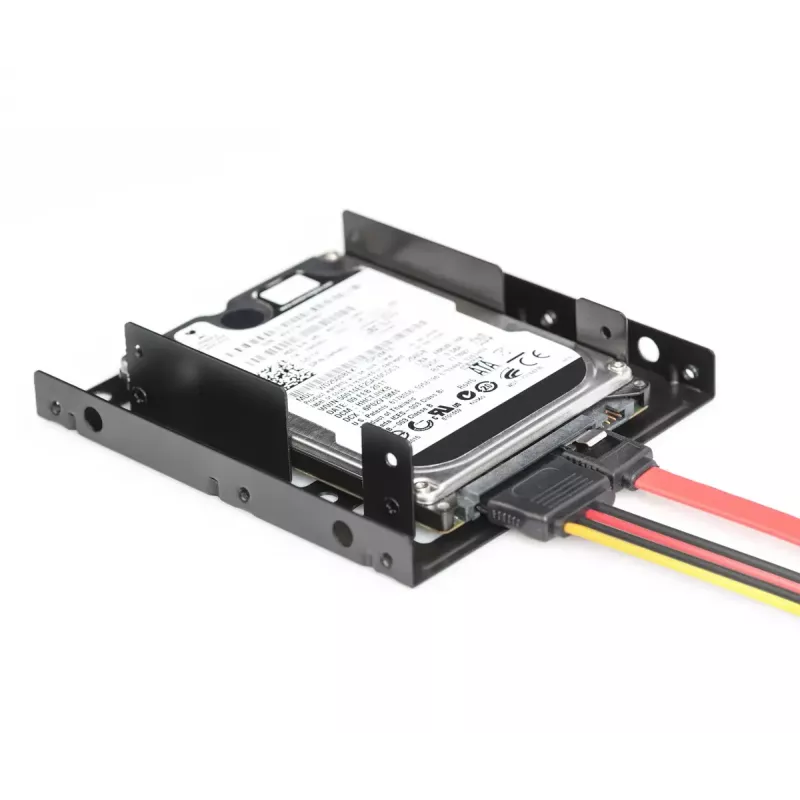

Attach up to two 2.5" drives into the mounting frame using the supplied screws, insert the assembled kit into an available 3.5" bay in your PC chassis, and secure it. Connect the drives to the motherboard with the provided SATA cables and connect power using the included Y power cable to the appropriate power supply connectors. After installation, verify drive recognition in the system BIOS/UEFI and format or partition the drives as required by your operating system.

Recommendations

Use the kit in a powered-off system and ground yourself to avoid electrostatic discharge. Ensure SATA and power connectors are firmly seated. When installing SSDs for best performance, connect them to SATA ports that support the highest available SATA generation on your motherboard.
