Κιτ ραγών ραφιού ROLINE 26.21.0113 μεταβλητό βάθος 350 έως 600 mm

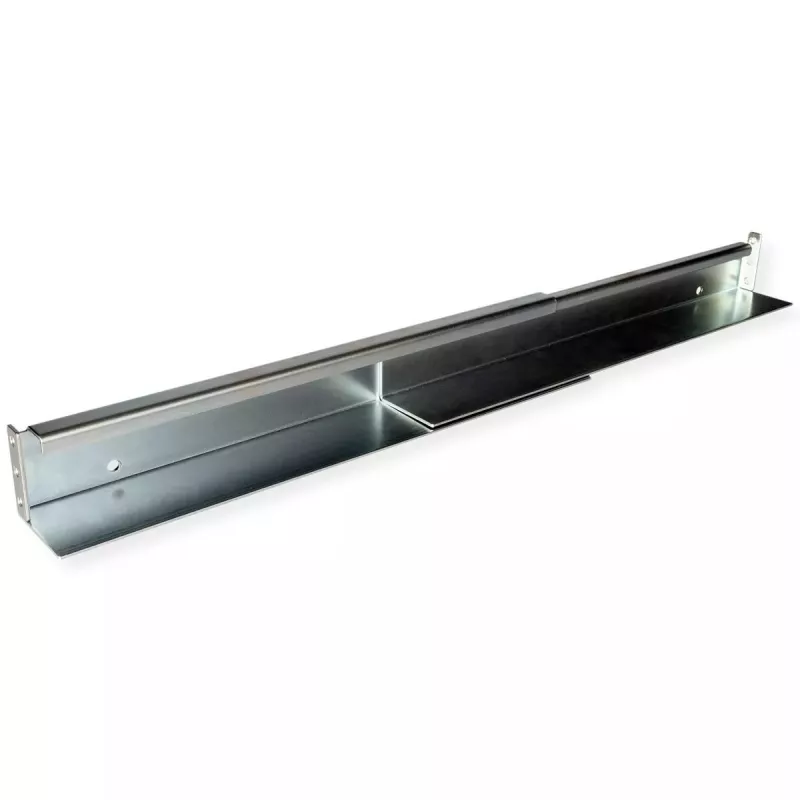

The ROLINE rack rail kit 26.21.0113 is a set of L-support slide rails for 19" network and server enclosures. Constructed from galvanised steel with a silver finish, the rails provide adjustable depth from 350 to 600 mm, a profile width of 44 mm and height of 52 mm, and a rated load capacity of 100 kg to support heavy plug-in units and mounted equipment.

Advantages

The variable-depth design allows installation in racks with different internal depths while maintaining stable mounting. Galvanised sheet steel construction offers durability and corrosion resistance. The rails attach to the four 19" profile rails for straightforward integration into standard server or network enclosures. A 100 kg load rating gives reliable support for heavy components.

Suitable for

• Mounting heavy plug-in units and servers in 19" network or server racks
• Applications requiring adjustable rail depth from 350 to 600 mm
• Installation where a compact profile (44 x 52 mm) is required

Key specifications

• Manufacturer: ROLINE
• Model / MPN: 26.21.0113
• EAN: 7630049601161
• Material: Galvanised sheet steel, silver finish
• Adjustable depth: 350–600 mm
• Profile dimensions: 44 mm (width) x 52 mm (height)
• Load capacity: 100 kg
• Compatibility: 19" rack enclosures

How to use

Attach the L-support slide rails to the four 19" profile rails inside the rack at the required depth setting between 350 and 600 mm. Secure rails with appropriate mounting hardware to ensure alignment and stability. Mount the equipment onto the rails following the device manufacturer's instructions, ensuring weight is evenly distributed and the 100 kg load limit is not exceeded.

Recommendations

Check rack depth and device dimensions before installation, use suitable screws and cage nuts for the 19" profile rails, and verify that the total mounted load remains within the 100 kg rating. For safety, secure heavy equipment during installation and periodic inspections.
