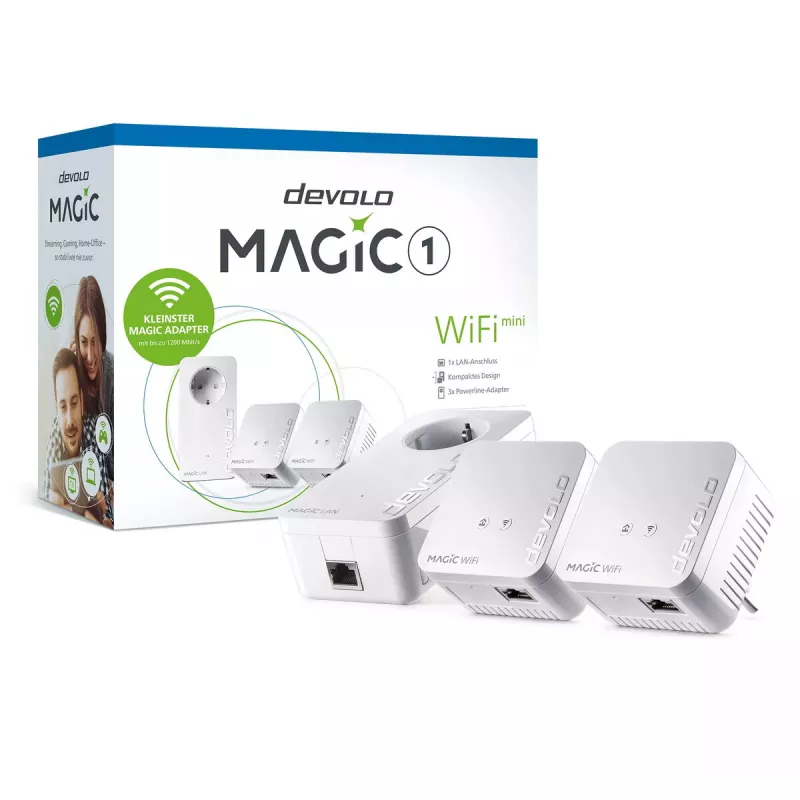

Kit δικτύου Devolo Magic 1 WiFi mini

The Network Kit Devolo Magic 1 WiFi mini is a compact powerline networking solution that combines powerline and Wi‑Fi connectivity to extend home network coverage. With a maximum data transfer rate of 1200 Mbit/s and support for multiple networking standards, the kit provides a practical option for connecting devices across rooms without relying solely on wireless range. The unit measures 68×68×41 mm, has an internal antenna, and includes a LAN cable for wired connections. LED indicators for PLC and WLAN provide basic status feedback while typical power consumption is 4.4 W and standby consumption is 1 W.

Advantages

The device integrates powerline transmission and IEEE 802.11b/g/n Wi‑Fi in a small footprint, enabling stable wired and wireless links where Wi‑Fi alone may be insufficient. Built‑in pass‑through power socket functionality preserves the wall outlet for other devices. Energy‑efficient operation with low typical and standby power consumption helps reduce running costs. LED status indicators and included LAN cable simplify installation and immediate use.

Suitable for

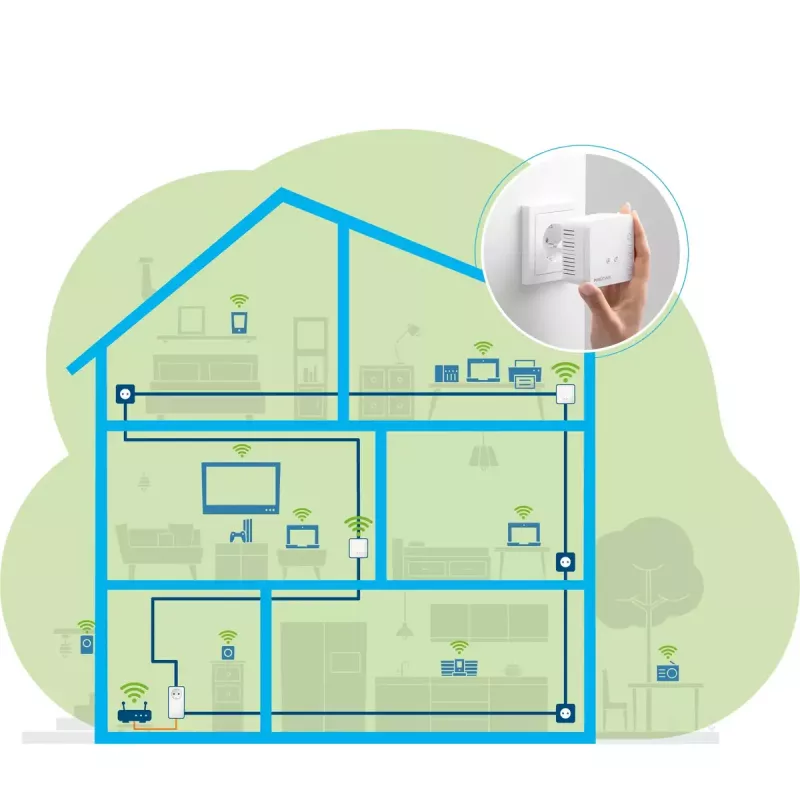

• Extending internet access in multi‑room apartments or houses where Wi‑Fi coverage is uneven
• Connecting smart TVs, set‑top boxes or media players via wired Ethernet for stable streaming
• Providing additional Wi‑Fi access points for mobile devices, laptops and tablets
• Situations where a compact, unobtrusive network adapter with built‑in socket is preferred

Key specifications

• Maximum data transfer rate: 1200 Mbit/s
• Wi‑Fi: IEEE 802.11b/g/n
• Ethernet LAN: 10/100 Mbps wired connection
• Power consumption: typical 4.4 W, standby 1 W
• Built‑in power socket: yes (pass‑through)
• Product colour: white

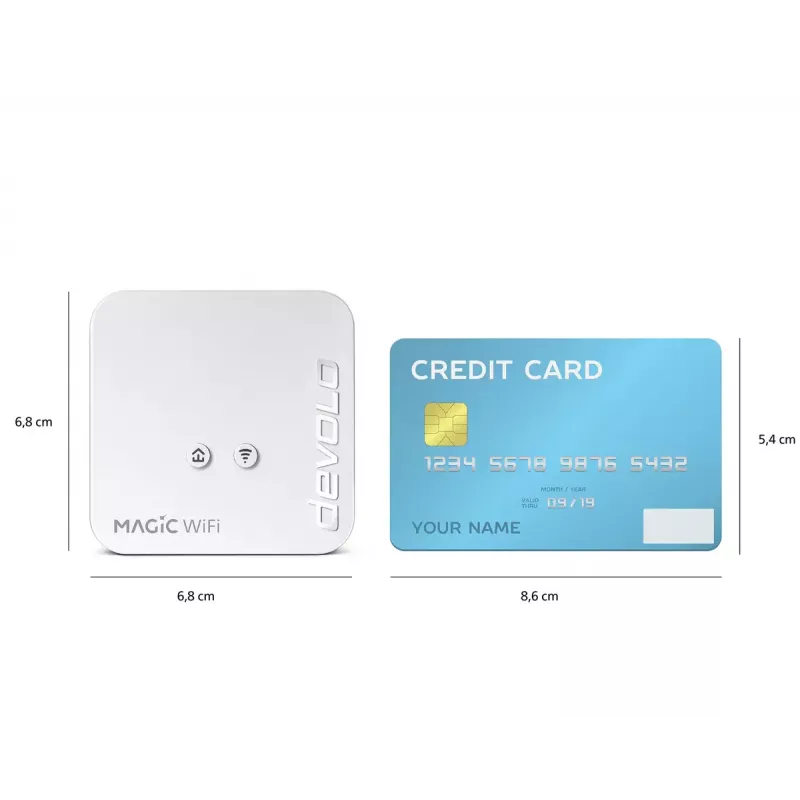

• Physical dimensions: 68 × 68 × 41 mm
• Antenna: internal

How to use

Plug the primary adapter into a wall outlet near your router and connect it to the router with the supplied LAN cable. Insert the secondary Magic 1 WiFi mini unit into an outlet in the room where you need network access. The devices pair over the electrical wiring; monitor the PLC and WLAN LEDs to confirm connection and Wi‑Fi availability. Use the Ethernet port on the adapter to connect a computer or media device directly, or join the extended Wi‑Fi network from wireless devices using the network name and password configured during setup.

Recommendations

For optimal performance, connect the adapters directly to wall outlets rather than to surge protectors or extension strips, and avoid sharing the same circuit with high‑interference appliances. Place the Wi‑Fi mini unit in a central location for the best wireless coverage and use wired Ethernet connections for devices that require the most stable throughput.
