Κιτ combo WLAN/Bluetooth Shuttle WLN-M1 Intel Wi-Fi 6 2400 Mbit/s

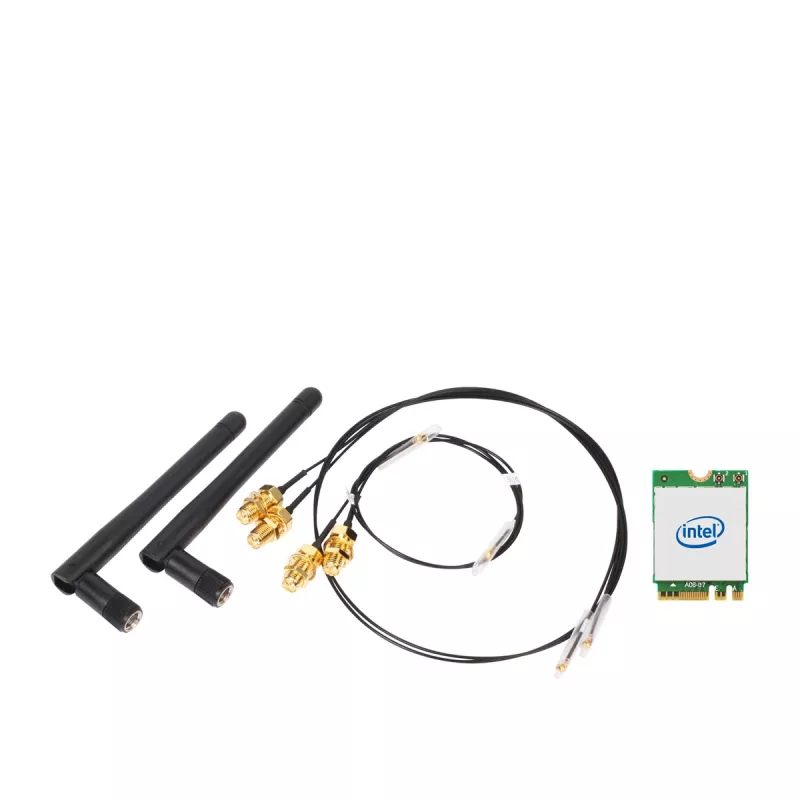

The Shuttle WLN-M1 is a wireless LAN kit that includes an Intel AX200 M.2-2230 card, two external antennas and the necessary connection cables. It enables compatible Shuttle XPC barebones to use IEEE 802.11n/ac/ax wireless standards on 2.4 GHz and 5 GHz bands and additionally provides Bluetooth 5.2 support for connecting peripherals and audio devices.

Advantages

The combo kit integrates Wi‑Fi 6 performance with Bluetooth 5.2 in a compact M.2 form factor, offering up to 2400 Mbit/s theoretical throughput on compatible networks. It connects via PCI Express lanes on the M.2 slot and includes external antennas and cables to improve wireless reception and flexibility of antenna placement.

Suitable for

• Upgrading wireless connectivity in compatible Shuttle XPC barebone systems
• Enabling Wi‑Fi 6 (802.11ax) connectivity on systems lacking integrated wireless
• Adding Bluetooth 5.2 for keyboards, mice, headsets and other peripherals

Key specifications

• Wireless standard: IEEE 802.11ax (backward compatible with 802.11ac/n)
• Frequency bands: 2.4 GHz and 5 GHz
• Maximum theoretical data rate: 2400 Mbit/s
• Form factor: M.2-2230 card
• Interface: PCI Express via M.2 slot
• Bluetooth version: 5.2
• Includes: M.2 wireless card, two external antennas, connection cables

How to use

Install the Intel AX200 M.2-2230 card into a compatible M.2 slot on the Shuttle XPC barebone following the manufacturer’s instructions, connect the provided antenna cables to the card and mount the external antennas in suitable positions for best reception. After hardware installation, install the appropriate drivers for the operating system to enable Wi‑Fi 6 and Bluetooth 5.2 functionality.

Recommendations

Place the external antennas vertically and away from large metal objects to improve signal strength; ensure drivers are up to date for optimal Wi‑Fi 6 performance and Bluetooth stability.
