Κάρτα ρελέ APC AP9614 παρελκόμενο UPS 121x128x38 mm

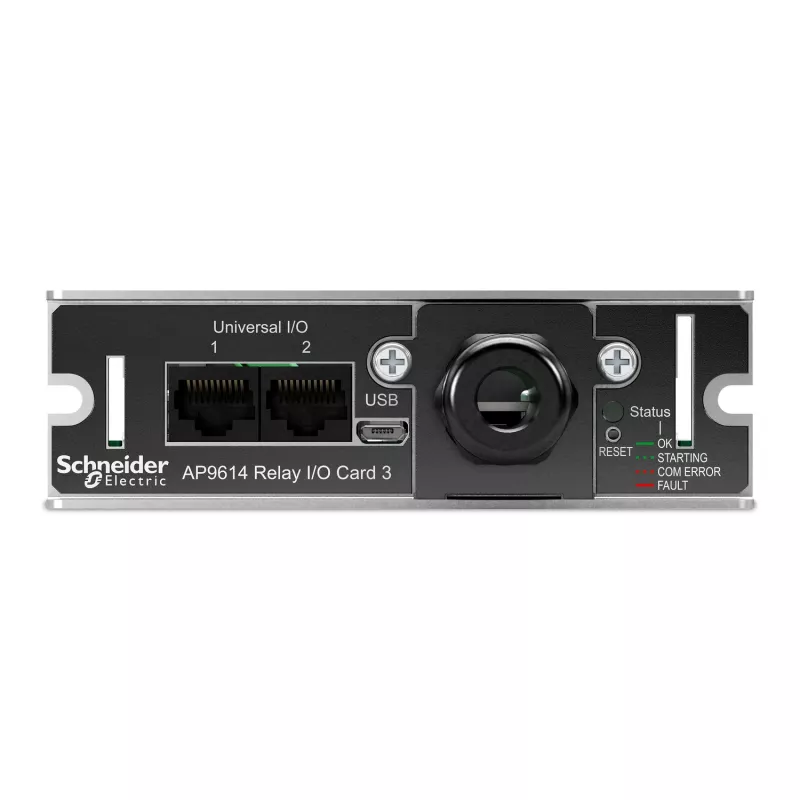

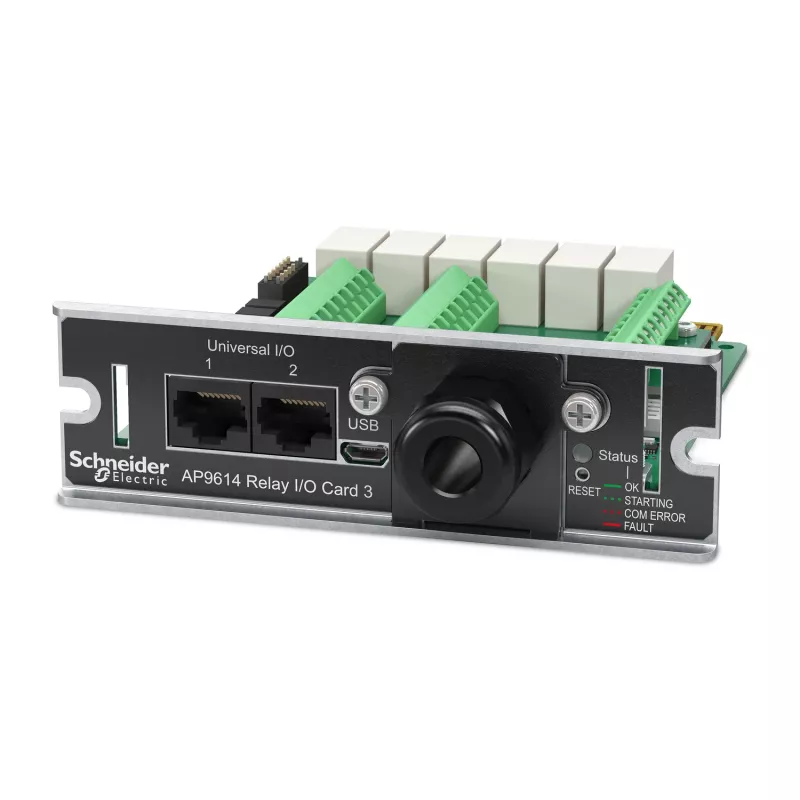

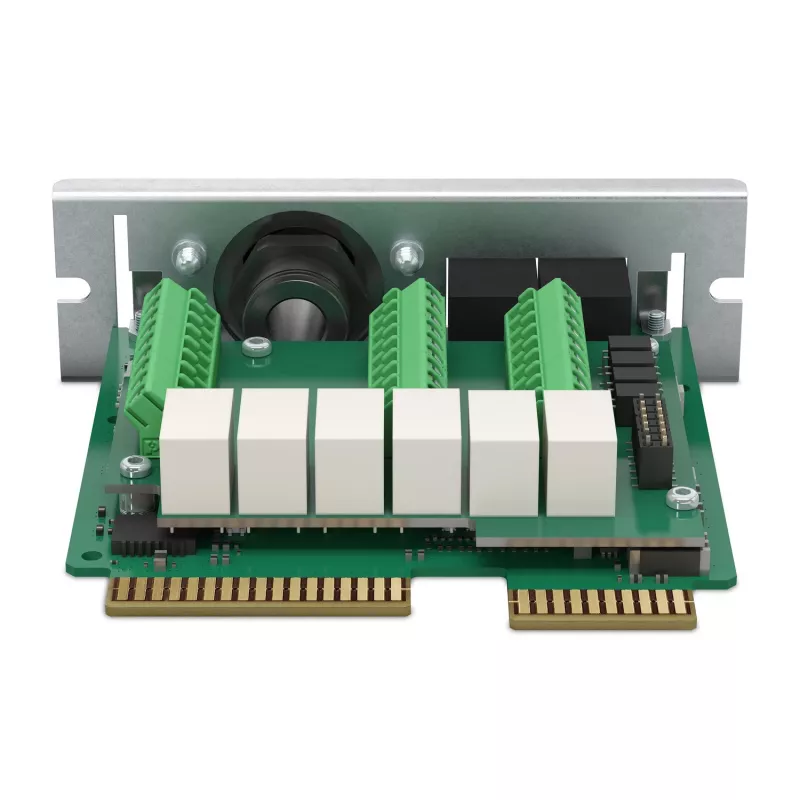

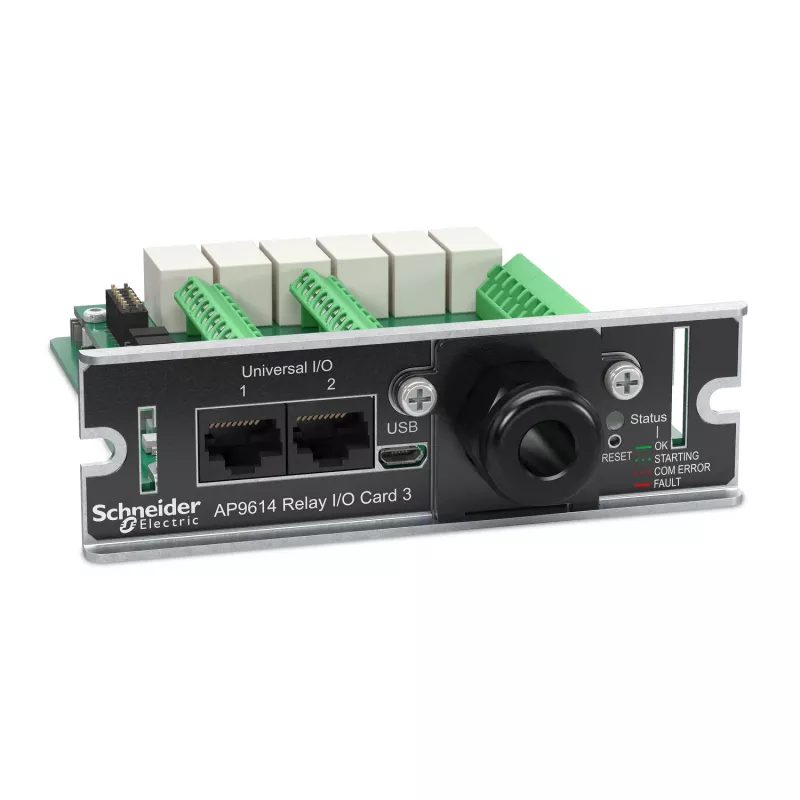

The APC AP9614 Relay Card is an accessory for APC UPS systems that adds dry contact inputs and configurable relay outputs. It provides six output relays and four input contacts for monitoring external triggers and controlling connected equipment. Two Universal I/O (UIO) ports accept optional environmental sensors or the Dry Contact I/O Accessory, which further extends the card with two extra dry contact inputs and relay outputs. The card connects to a PC using the included micro-USB cable to access a dynamic web UI for configuration and management.

Advantages

The relay card increases UPS integration options by offering multiple configurable relay outputs and inputs for automation and alerting. Support for environmental sensors and an additional Dry Contact I/O Accessory allows expansion without replacing the card. The micro-USB connection and web UI provide straightforward configuration of UPS settings, relay actions and sensor triggers.

Suitable for

• Remote management of UPS-triggered events
• Integrating UPS signals with building management or control systems
• Adding external sensor-triggered actions to UPS operations
• Expanding relay and contact I/O capacity in server rooms and network closets

Key specifications

• Model: APC AP9614
• Function: Dry contact I/O relay card
• Outputs: 6 configurable relays
• Inputs: 4 dry contact inputs
• Expandable: 2 UIO ports; supports Dry Contact I/O Accessory (adds 2 inputs and 2 relay outputs)
• Interface: micro-USB for web UI
• Dimensions: 121 x 128 x 38 mm
• Weight: 0.2 kg
• Brand: APC
• MPN: AP9614
• EAN: 0731304733065

How to use

Install the AP9614 card into the compatible APC UPS expansion slot according to the UPS hardware instructions. Connect required dry contact inputs and relay outputs to external devices or control systems using the card terminals. Use the supplied micro-USB cable to connect the card to a PC, open the web UI and configure relay mappings, input actions and environmental sensor thresholds. Define actions to be triggered by status changes or UPS events and save the configuration.

Recommendations

Verify UPS compatibility and follow APC installation guidelines. Use shielded wiring for critical signal lines and test relay actions in a controlled environment before deploying to production systems.
