Κάρτα δικτύου Gembird PCI Fast-Ethernet 100 Mbit/s

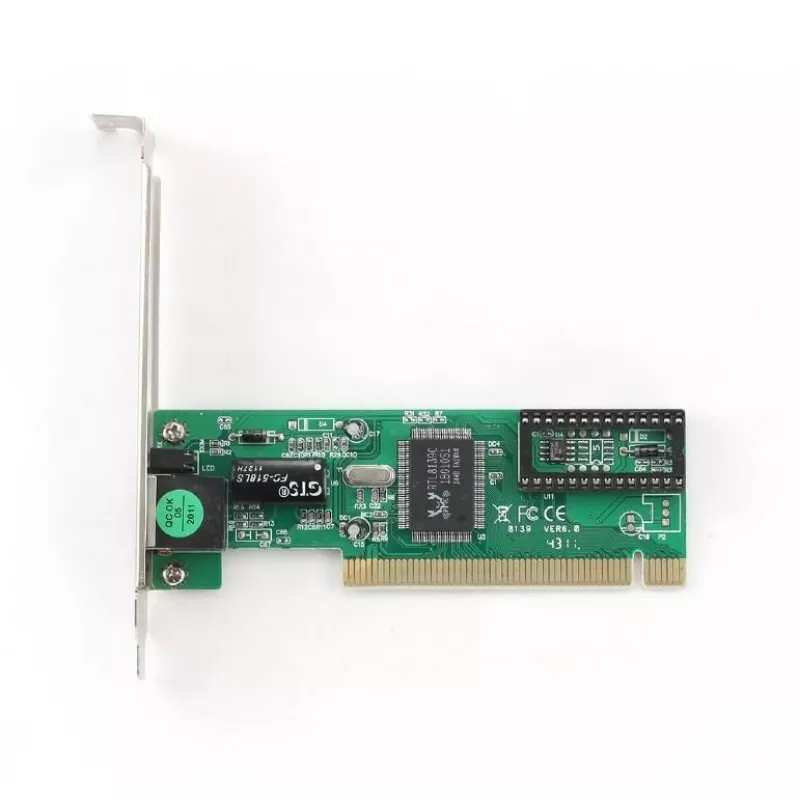

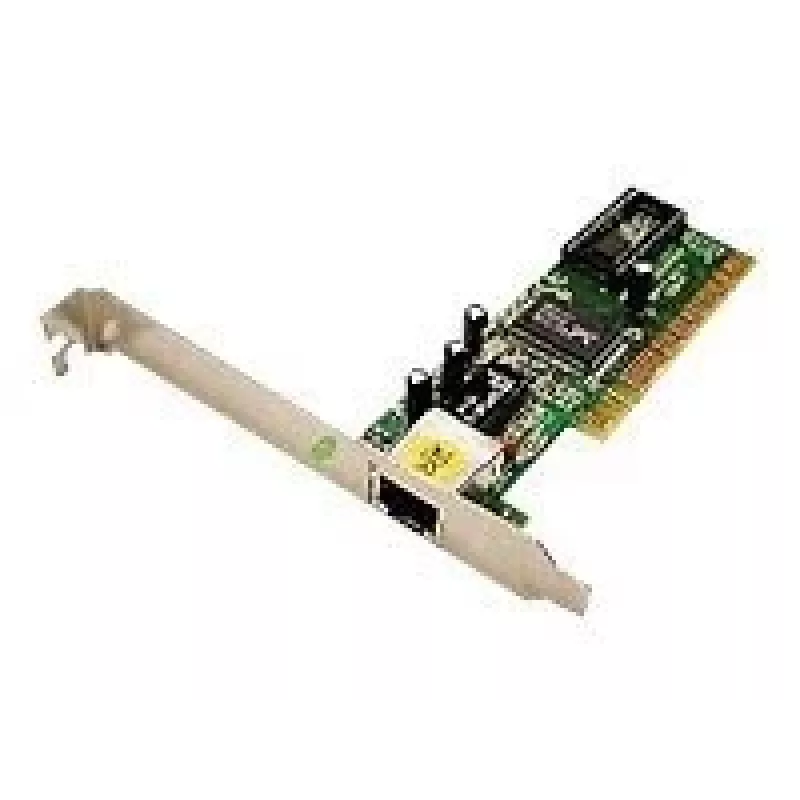

The Gembird PCI Fast Ethernet Card 100 Mbit/s is a wired network adapter based on the Realtek 8139C chipset. It connects via a PCI host interface and provides up to 100 Mbit/s data transfer, offering a stable wired connection for desktop computers. The card includes a single-chip controller compatible with PCI local bus specification 2.1 and an onboard socket for an optional remote Boot ROM.

Advantages

The adapter supports auto-negotiation for link speed and duplex settings, uses a single-chip 10/100Mbps controller for compact design and reliable performance, and is compatible with standard PCI slots. The Realtek 8139C chipset ensures broad driver support and stable operation in typical desktop network environments.

Suitable for

• Adding wired Ethernet to desktop PCs with a PCI slot
• Basic office and home internet access at up to 100 Mbit/s
• Replacing or upgrading older network cards

Key specifications

• Chipset: Realtek 8139C
• Controller: 10/100Mbps single-chip, PCI local bus specification 2.1
• Maximum data transfer rate: 100 Mbit/s
• Host interface: PCI
• Connectivity technology: Wired Ethernet
• Features: Auto-negotiation, onboard socket for optional remote Boot ROM

How to use

Power down the computer and unplug it. Open the case, insert the card into an available PCI slot, and secure it with the slot screw. Close the case and power on the system. Install the appropriate drivers for the Realtek 8139C chipset if the operating system does not install them automatically. Connect an Ethernet cable to the card’s RJ45 port and configure network settings as required by your network or ISP.

Recommendations

Use this PCI Fast Ethernet card in systems with a free PCI slot and compatible drivers. For best performance, connect to a switched Ethernet network and ensure cable and switch support 100BASE-TX. Keep drivers updated for compatibility and stability.
