Κάρτα δικτύου Edimax EW-7611ULB WLAN Bluetooth 150 Mbit/s

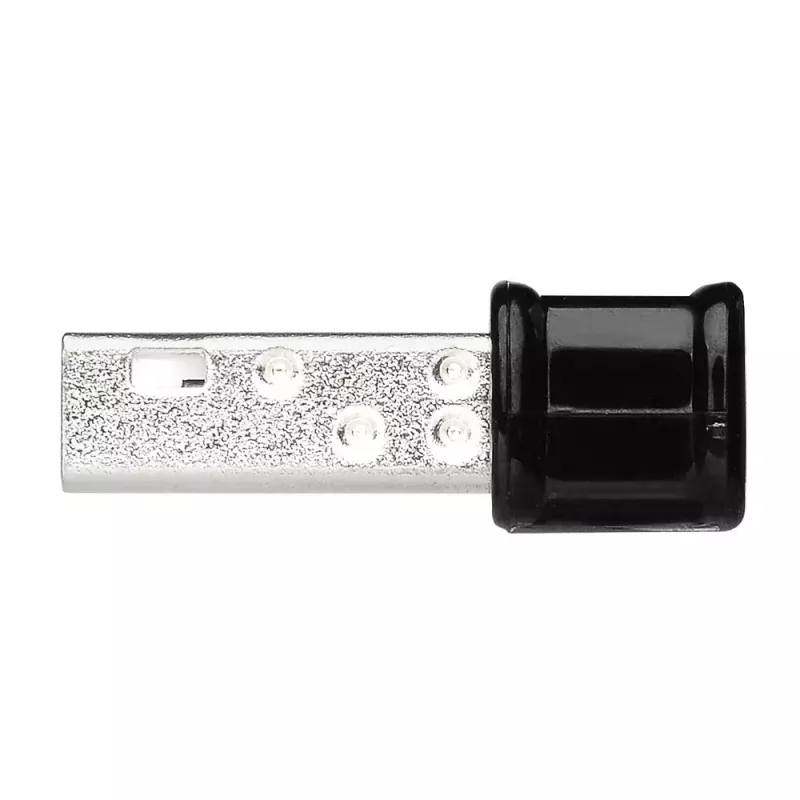

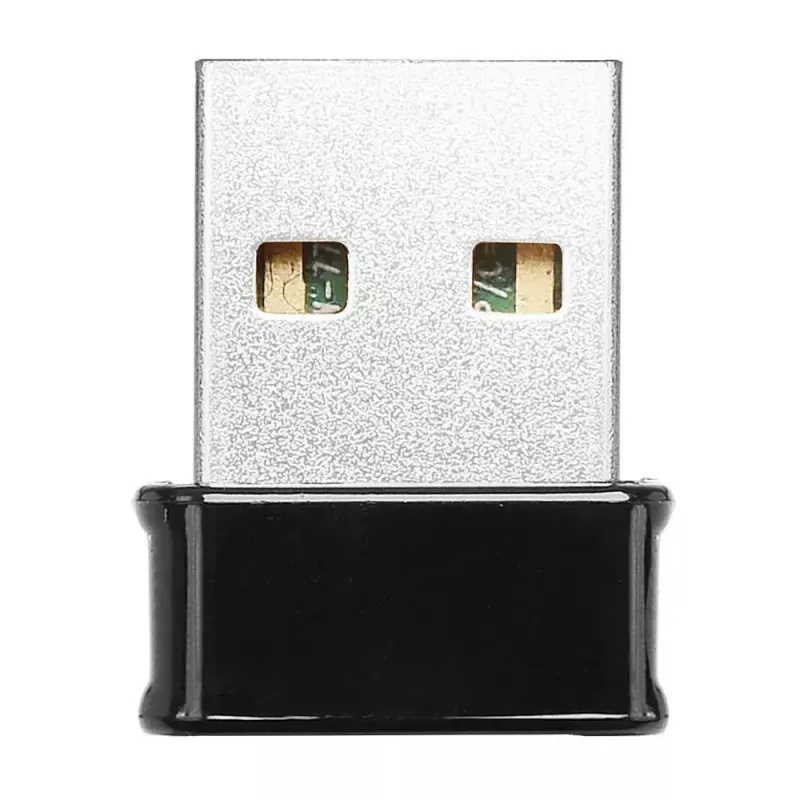

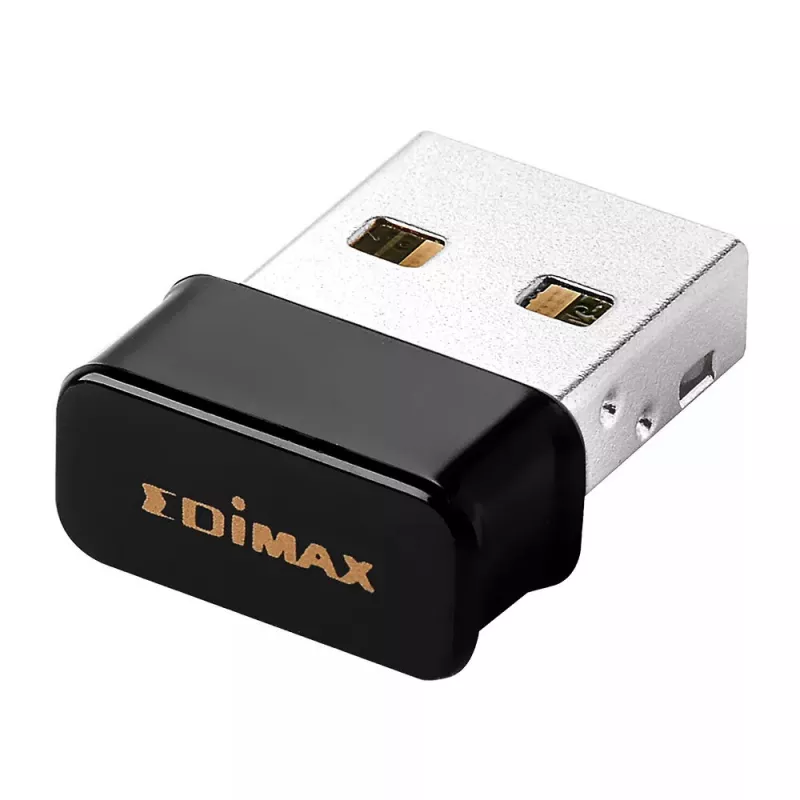

The EW-7611ULB is a nano-sized 2-in-1 combo USB Wi-Fi adapter with Bluetooth 4.0 that provides wireless connectivity for laptops and desktops. It supports 802.11b/g/n Wi‑Fi with speeds up to 150 Mbps and Bluetooth 4.0 (backwards compatible with 3.0+HS and 2.1+EDR) for connecting mobile phones, tablets, mice, keyboards, printers and other peripherals. The ultra-compact design allows the adapter to remain plugged in without blocking adjacent USB ports while offering both Wi‑Fi and Bluetooth functions simultaneously.

Advantages

The adapter combines dual wireless functions in a single nano-sized USB device, enabling simultaneous Wi‑Fi and Bluetooth connections. Bluetooth 4.0 with Bluetooth Low Energy (BLE) reduces power consumption during data transfer and idle periods. The device supports WPS for quick and secure Wi‑Fi setup and includes a multilingual setup wizard for straightforward installation. The compact form factor is convenient for mobile use and minimizes the risk of accidental damage.

Key specifications

• Wi‑Fi standard: IEEE 802.11b/g/n
• Max Wi‑Fi speed: up to 150 Mbps (11n)
• Bluetooth version: Bluetooth 4.0 (Bluetooth Smart Ready), backward compatible with Bluetooth 3.0+HS and 2.1+EDR
• Bluetooth data rate: up to 24 Mbps (with 3.0+HS support)
• Power features: Bluetooth Low Energy (BLE), smart transmission power control, CPU offload for energy saving
• Security: supports WPS (software WPS-compatible configuration)
• Form factor: nano-sized USB adapter, compact and portable

How to use

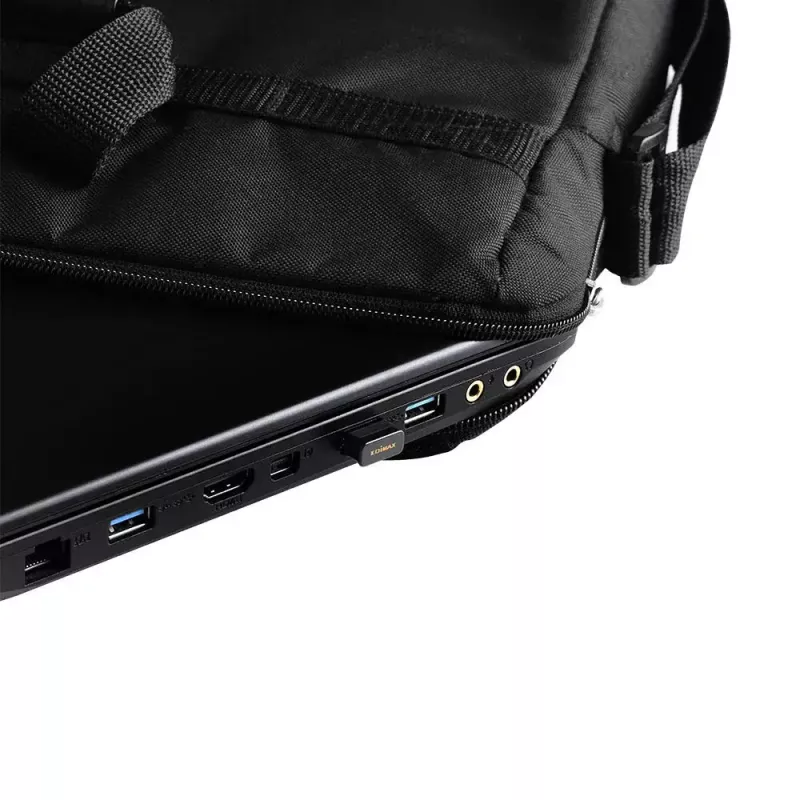

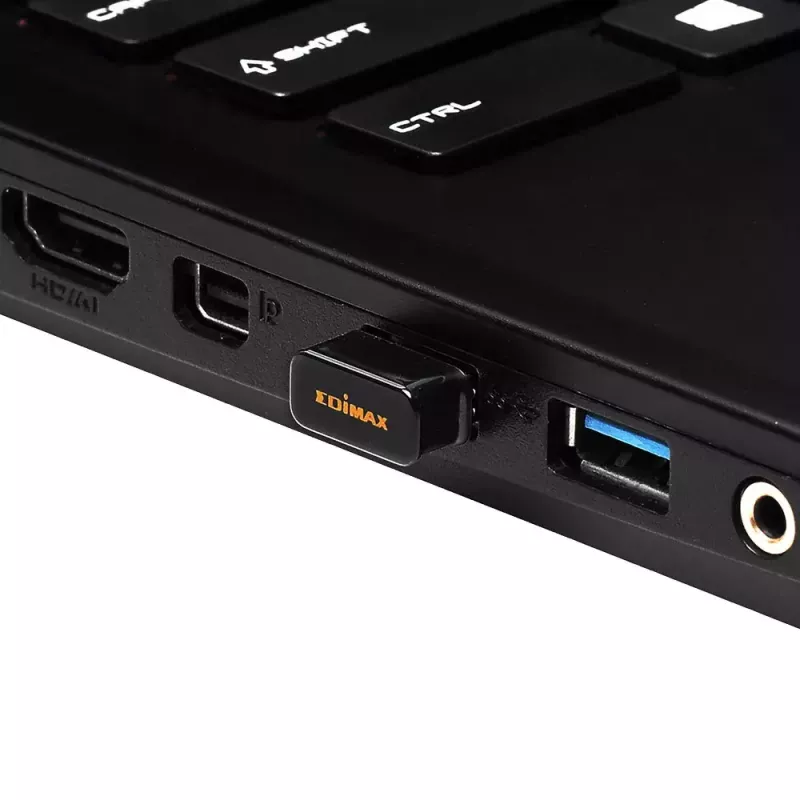

Insert the EW-7611ULB into an available USB port on your computer. Run the included multi-language setup wizard and follow the on-screen instructions to install drivers and configure Wi‑Fi and Bluetooth settings. Use the wizard or your operating system’s network settings to connect to a Wi‑Fi network; enable WPS on a compatible router and follow prompts if you prefer one-touch secure setup. Pair Bluetooth devices through your system’s Bluetooth manager to connect phones, tablets, mice, keyboards or other peripherals.

Recommendations

For best performance, use the adapter with an 802.11n-capable router and keep the device unobstructed from metal objects. When using battery-powered hosts, enable power-saving features in your operating system to complement the adapter’s BLE and green WLAN functions.
