Καλώδιο Vision 2x VGA 15-Pin D-Sub 3m

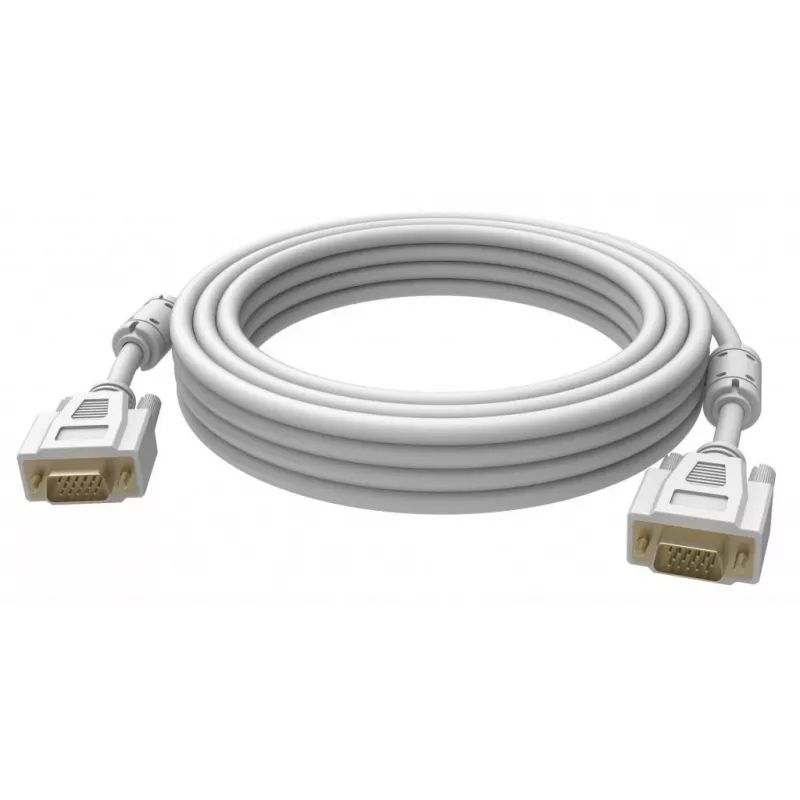

The Vision 2x VGA 15-pin D-Sub 3m cable connects a computer's VGA socket to a VGA-compatible display device. This 3 m white cable features two male VGA (15-pin D-Sub) connectors and is designed for reliable analog video transmission between computers, monitors, projectors and other VGA devices.

Advantages

The cable has gold-plated connectors and ferrite cores on both ends to reduce RF interference and improve signal integrity. Its PVC sheath (8.0 mm outer diameter), 28 AWG conductors and Al-Mg alloy braided shield with over 65% coverage provide stable transmission. The drain wire is laid between aluminum mylar and braid to enhance grounding and shielding performance.

Suitable for

• Connecting desktop or laptop computers to external monitors
• Connecting computers to projectors for presentations
• Replacing or extending existing VGA connections up to 3 m

Key specifications

• Connectors: VGA 15-pin D-Sub (male) to VGA 15-pin D-Sub (male)
• Cable length: 3 m
• Colour: White
• Sheath: PVC, outer diameter 8.0 mm
• Conductor thickness: 28 AWG
• Shielding: Al-Mg alloy braid, >65% coverage; drain wire between aluminum mylar and braid
• Ferrite cores: on both ends
• Impedance: 75 Ω at 10 MHz (coaxial reference)
• Resistance @20°C: 237.25 Ω/1000 m
• Compliance: CE, FCC

How to use

Plug one male VGA (D-Sub) connector into the computer's VGA socket and the other into the display device's VGA input. Secure the connectors using the thumbscrews to ensure a firm mechanical and electrical connection. Route the 3 m cable to avoid sharp bends and keep it away from strong sources of electromagnetic interference for best signal quality.

Recommendations

For stable image quality, use the cable within its 3 m length and avoid running it parallel to high-voltage power cables. Tighten connector screws by hand; do not overtighten. If interference is suspected, ensure ferrite cores are positioned close to the device ends and check grounding of connected equipment.
