Καλώδιο USB Kramer Electronics CA–U32/FF–15 USB 3.2 Gen 2 4,6 m USB B USB C μαύρο

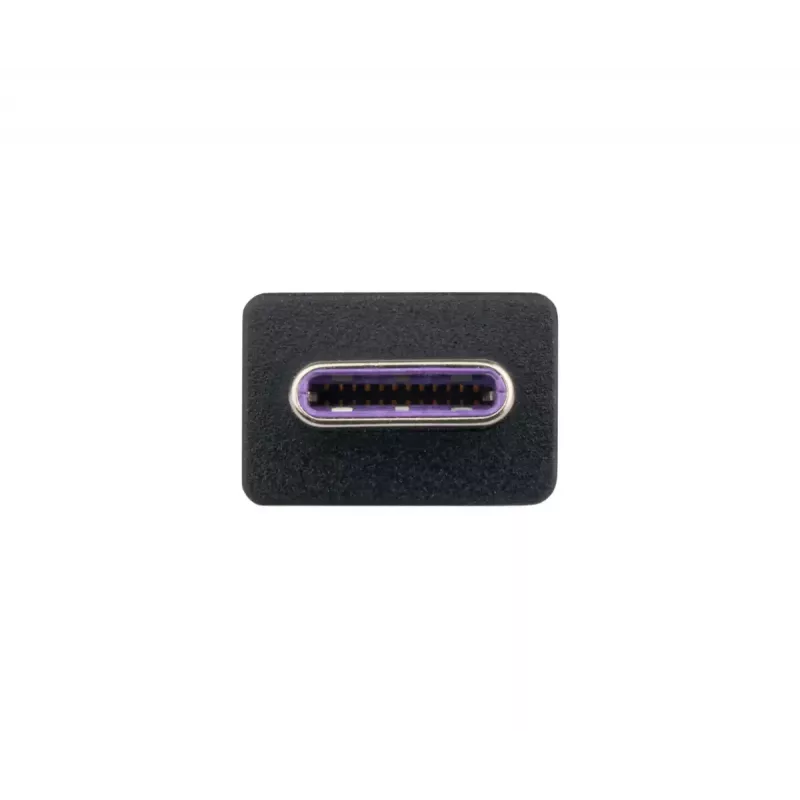

The Kramer Electronics CA–U32/FF–15 is an active USB 3.2 Gen 2 cable with USB Type‑B to USB Type‑C (male–male) connectivity and a cable length of 4.6 m. It supports SuperSpeed+ data rates up to 10 Gbps, 4K@60 video transfer when used with compatible hosts and devices, and power delivery up to 100 W. The cable features a low‑profile reversible USB‑C connector with an integrated K‑lock mechanism for secure and reliable connections.

Advantages

The CA–U32/FF combines high data throughput, 4K@60 video capability and up to 100 W charging in a single active cable. Its USB 3.2 Gen 2 SuperSpeed+ performance provides up to 10 Gbps transfer rates when both host and device support USB 3.2. The symmetrical USB‑C connector can be inserted in either orientation, and the built‑in K‑lock improves connection stability during use.

Suitable for

• Connecting external drives and high‑speed storage for large file transfers
• Transmitting 4K@60 video between compatible devices
• Powering or charging laptops and mobile devices up to 100 W
• Connecting printers, scanners or other peripherals with USB‑B to USB‑C interface

Key specifications

• Connectors: USB Type‑B (one end) to USB Type‑C (other end), male–male
• USB version: USB 3.2 Gen 2 (SuperSpeed+) — up to 10 Gbps
• Video: supports 4K@60 where supported by host and device
• Power delivery: up to 100 W
• Cable length: 4.6 m
• Colour: Black
• Brand / MPN / EAN: Kramer / 96-0219105 / 7291063099510

How to use

Connect the USB Type‑B end to the peripheral that uses a USB‑B port (for example a printer or certain external drives) and plug the USB Type‑C end into the host or device that supports USB‑C. Ensure both host and device support USB 3.2 Gen 2 to achieve up to 10 Gbps data rates and 4K@60 video transfer. The USB‑C connector can be inserted in either orientation; seat it firmly and engage the K‑lock if required to secure the connection.

Recommendations

Use with devices that explicitly support USB 3.2 Gen 2 to obtain maximum throughput and video capabilities. Verify the power delivery requirements of connected devices before using the cable to supply up to 100 W. Avoid excessive bending near the connectors and secure the connector with the K‑lock in environments subject to movement or vibration.
