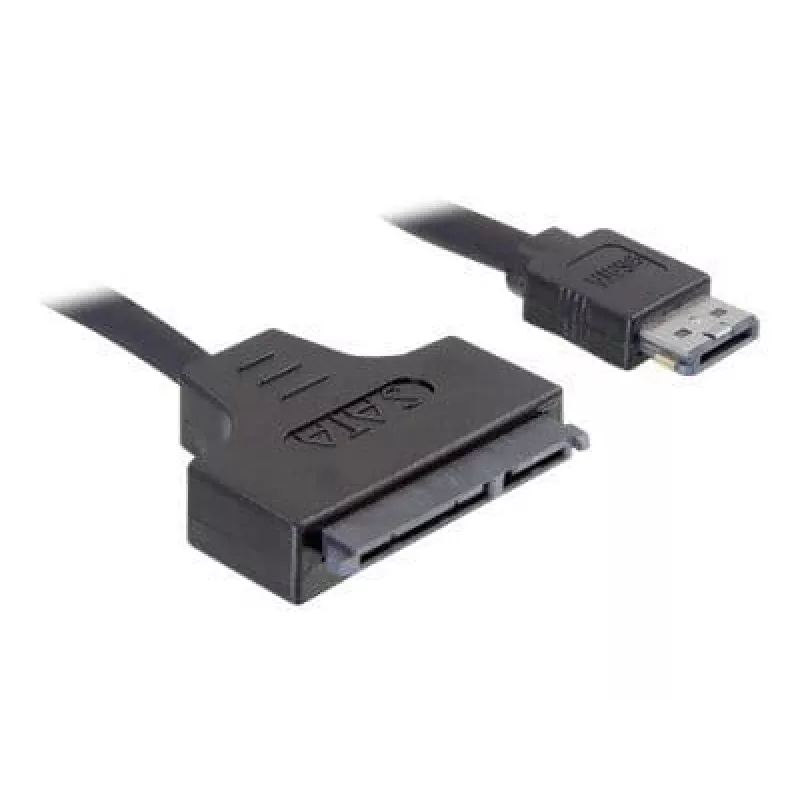

Καλώδιο SATA DeLOCK ESATAP-100 0,5m μαύρο

This Power Over eSATA to SATA 22‑pin cable (0.5 m) from DELOCK connects 2.5" or 3.5" SATA hard drives externally to any Power Over eSATA (eSATAp) port. The eSATAp connector combines eSATA and USB signal lines and provides power via two gold contacts, allowing the cable to supply 12 V to compatible ports so no separate power adapter is required for most 2.5" and 3.5" HDDs. The cable also works with 5 V eSATAp ports and will provide the appropriate 5 V for running 2.5" drives.

Advantages

The DeLOCK ESATAP-100 cable is 0.5 m long and finished in black, offering a compact and tidy external connection. It supports both data transfer and power delivery through a single eSATAp connector, eliminating the need for an additional power supply when used with a 12 V capable port. Durable contacts ensure stable connectivity for external SATA HDDs or SSDs.

Suitable for

• Connecting external 2.5" SATA HDDs and SSDs to a computer with an eSATAp port
• Connecting external 3.5" SATA HDDs to an eSATAp port that supplies 12 V
• Temporary data access, cloning or backup of internal SATA drives externally

Key specifications

• Brand: DELOCK
• Model: ESATAP-100
• Length: 0.5 m
• Connector 1: eSATAp (Power Over eSATA)
• Connector 2: SATA 22‑pin
• Colour: Black
• EAN: 4043619844029

How to use

Connect the eSATAp end of the cable to the computer or enclosure eSATAp port and the SATA 22‑pin end to the internal SATA connector of the 2.5" or 3.5" drive. If the eSATAp port provides 12 V, the drive will receive power through the cable and no separate power supply is required. If the port only supplies 5 V, the cable will provide 5 V suitable for 2.5" drives; a 3.5" drive will require an external 12 V power source.

Recommendations

Use the cable with eSATAp ports that explicitly support Power Over eSATA for powering 3.5" drives. For prolonged operation of 3.5" HDDs, verify the host port’s 12 V capability or use an external power adapter to ensure adequate power and stable performance.
