Καλώδιο Mini Displayport σε Displayport DeLOCK 83984 0,5m Μαύρο

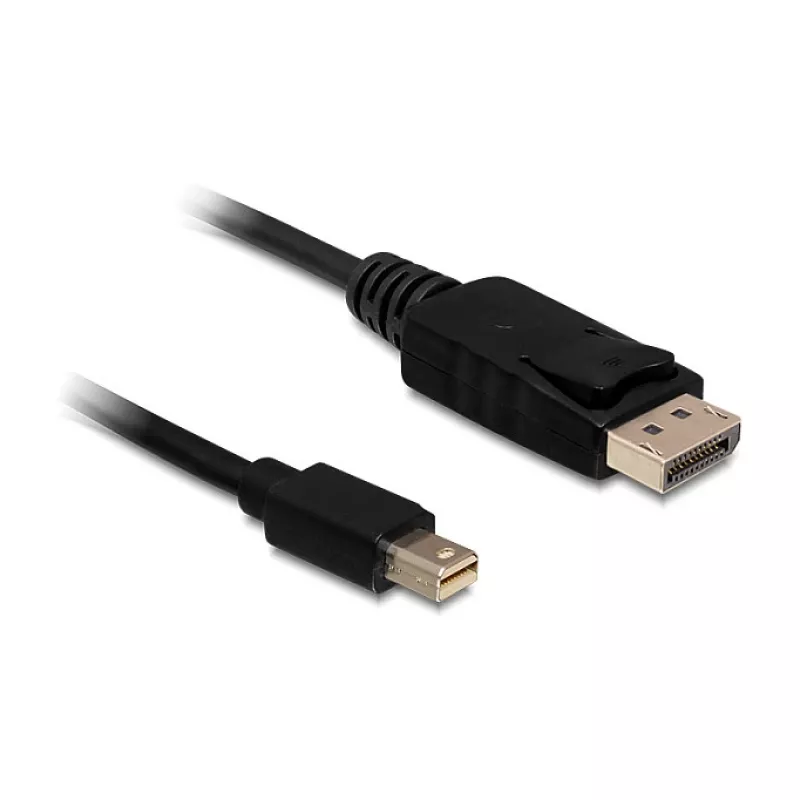

The DeLOCK Mini DisplayPort to DisplayPort cable (model 83984) is a 0.5 m video and audio cable with a Mini DisplayPort 20‑pin male connector on one end and a DisplayPort 20‑pin male connector on the other. It supports the DisplayPort 1.2 specification and is designed to transmit digital audio and video signals between compatible devices such as laptops, desktop graphics cards, monitors and projectors.

Advantages

This cable supports data transfer rates up to 21.6 Gb/s and resolutions up to 3840 x 2160 at 60 Hz (dependent on monitor and system capabilities). It features gold‑plated connectors, copper conductors and net shielding for reliable signal transmission. The compact 0.5 m length and approximately 5.5 mm cable diameter (32 AWG) make it suitable for tidy, short‑distance connections. Colour: black.

Suitable for

• Connecting a laptop with Mini DisplayPort output to a DisplayPort monitor or projector
• Connecting desktop graphics cards (DisplayPort) to displays that accept DisplayPort
• Short‑range audio/video signal routing on a desk or in AV setups

Key specifications

• Connector 1: Mini DisplayPort 20‑pin male
• Connector 2: DisplayPort 20‑pin male
• Specification: DisplayPort 1.2
• Maximum data rate: up to 21.6 Gb/s
• Maximum resolution: up to 3840 x 2160 @ 60 Hz (dependent on system and display)
• Cable length: ca. 0.5 m
• Cable gauge/diameter: 32 AWG, approx. 5.5 mm
• Conductor: copper
• Shielding: net shielding
• Connectors: gold‑plated
• Colour: black

How to use

Connect the Mini DisplayPort end to the Mini DisplayPort output on your source device and the DisplayPort end to the DisplayPort input on the target display or projector. Ensure both devices are powered on and set the display input to the correct DisplayPort source. Adjust resolution and refresh rate in the operating system or graphics driver settings as required.

Recommendations

Use this 0.5 m cable for short, direct connections. For longer distances or advanced multi‑monitor setups, select a cable or solution rated for the required length and bandwidth. Handle connectors carefully and avoid sharp bends to maintain signal integrity.
