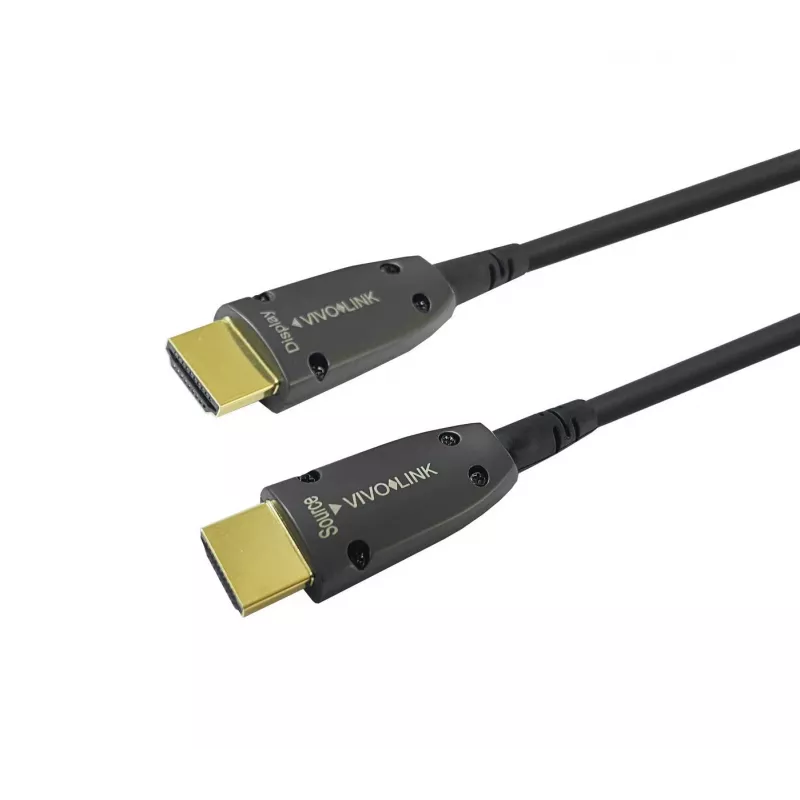

Καλώδιο HDMI Vivolink PROHDMIOP100AM 100 m HDMI Type A (Standard) μαύρο

The Vivolink PROHDMIOP100AM is a 100 m HDMI Type A cable designed for long-distance transmission of high-resolution video and audio. It supports HDMI 2.0 features including 4K@60Hz with 4:4:4 chroma, HDR 12-bit, HDCP 2.2, 3D and ARC, and provides an 18 Gbit/s bandwidth with gold-plated contacts. The cable has a slim profile with a diameter of 4.0 mm and is optimized for installations where maintaining image quality over extended runs is required.

Advantages

The cable offers full HDMI 2.0 bandwidth (18 Gbit/s) for 4K/60Hz 4:4:4 and HDR 12-bit signals, supports HDCP 2.2 copy protection and ARC, and is compatible with 3D formats. Its slim 4.0 mm construction simplifies routing in tight spaces, while gold-plated connectors improve contact reliability. Tensile strength and pressure load ratings provide durability for fixed installations over long distances.

Suitable for

• Long-distance AV links between players, receivers and displays
• Installations requiring 4K@60Hz 4:4:4 or HDR pass-through
• Concealed or cable-managed runs where a slim cable is needed
• Professional and residential AV setups with HDCP 2.2 content

Key specifications

• Length: 100 m
• Connector: HDMI Type A (male)
• HDMI version: 2.0
• Bandwidth: 18 Gbit/s
• Maximum resolution: up to 4096 x 2160 (4K) @60Hz 4:4:4
• HDR: 12-bit support
• HDCP: 2.2
• Features: 3D, ARC
• Cable diameter: 4.0 mm
• Tensile strength (pull resistance): 20 kg
• Maximum pressure load on cable: 305 kg
• Contacts: gold-plated

How to use

Connect the male HDMI Type A ends to the source device and the display or AV receiver, ensuring secure seating at both ends. For best results, route the 100 m cable avoiding sharp bends and sources of strong electromagnetic interference. Verify source and display settings to enable HDMI 2.0 features (4K@60Hz, HDR) and ensure the connected devices support HDCP 2.2 if protected content is used.

Recommendations

For reliable long runs, use fixed installation paths and avoid repeated flexing. Avoid kinking the 4.0 mm cable and maintain a minimum bend radius specified by installers. Test the full signal chain at the required resolution and HDR settings after installation to confirm performance.
