Καλώδιο HDMI Vivolink OPTIC 4K 50m

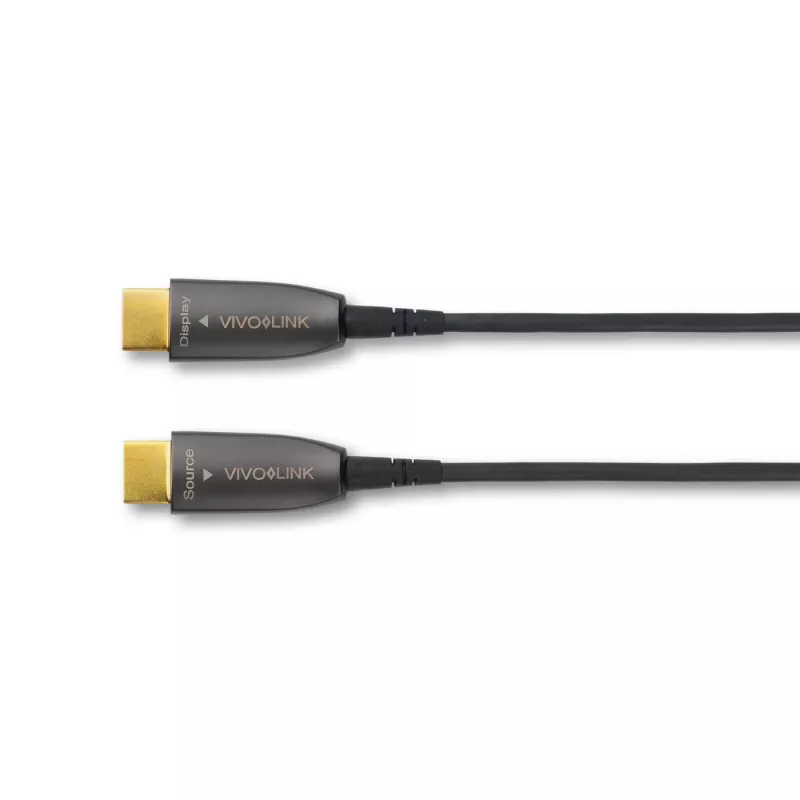

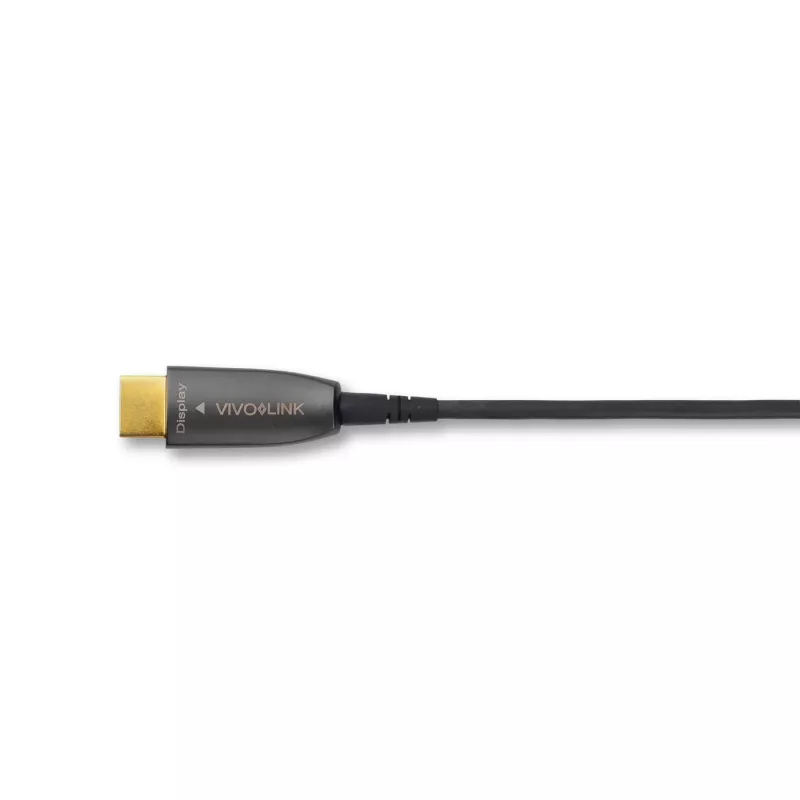

The Vivolink OPTIC HDMI 4K Cable 50m is a slim, long-reach HDMI Type A cable designed for transmitting high-resolution video and audio over extended distances. It supports HDMI 2.0 with HDR 12-bit, HDCP 2.2, 3D and ARC, delivering up to 4K@60Hz 4:4:4 at 18 Gbit/s. The cable features gold-plated HDMI Type A connectors and a compact 4.0 mm profile, suitable for installations that require high bandwidth across long runs.

Advantages

The cable provides consistent 4K@60Hz 4:4:4 performance with HDR and HDCP 2.2 compliance over 50 meters, combining high data throughput (18 Gbit/s) with a slim 4.0 mm form factor. Gold-plated HDMI Type A connectors improve contact reliability, while optical construction (fiber) makes long-distance transmission with reduced signal loss and low weight possible. The product is compatible with devices supporting HDMI 2.0, 3D and ARC.

Suitable for (tasks / use cases)

• Long-distance connection between AV sources and displays (up to 50 m)
• Professional AV installations in conference rooms, classrooms and auditoriums
• Home theater systems where 4K@60Hz and HDR are required over long runs
• Digital signage and retail display setups requiring reliable 4K transmission

Key specifications

• Cable length: 50 m
• HDMI version: 2.0
• Maximum resolution: 4096 x 2160 @60Hz 4:4:4
• Bandwidth: 18 Gbit/s
• HDR support: 12-bit
• HDCP: 2.2
• Features: 3D, ARC
• Connectors: HDMI Type A (gold plated) — both ends
• Profile (approx.): 4.0 mm
• Weight: 0.82 kg
• Colour: Black
• Brand / MPN / EAN: VivoLink / PROHDMIOP50 / 5711783938897

How to use

Connect one HDMI Type A connector to the video source (for example, a Blu-ray player, PC or AV receiver) and the other HDMI Type A connector to the display or projector. Ensure both devices support HDMI 2.0 and the required HDCP/HDR settings. Route the cable along the planned path, avoiding sharp bends; a minimum bend radius recommended by the installer should be followed to maintain optical integrity. Power on the source and display, then select the appropriate input on the display to begin transmission.

Recommendations

Use for installations where long-distance, high-bandwidth HDMI transmission is required. Avoid tight bends and excessive tensile loads — the cable's pull resistance is approximately 20 kg. Verify device compatibility with HDMI 2.0, HDCP 2.2 and HDR settings to ensure full functionality.
