Καλώδιο HDMI MicroConnect 4K HDMI A-C 3m

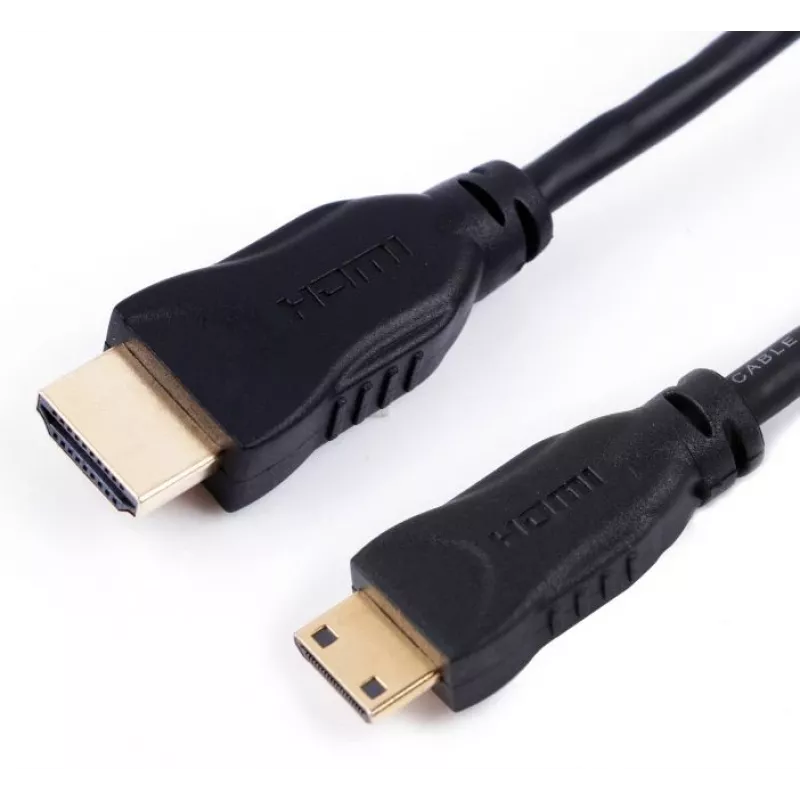

The MicroConnect 4K HDMI A-C 3m cable is a 3-metre HDMI 2.0 lead with a standard Type A connector at one end and a Mini Type C connector at the other. Designed for digital transmission of high-definition video and audio, the cable supports resolutions up to 4096 x 2160 (4K) at 60 Hz, 3D formats, HDCP 2.2, CEC and ARC. Gold-plated contacts and a black finish provide reliable signal transfer and a neutral appearance for AV setups.

Advantages

This HDMI 2.0 cable provides high-speed data transfer up to 18 Gbit/s and supports audio return channel (ARC) for simplified audio routing. The combination of Type A and Type C connectors makes it suitable for connecting standard HDMI devices to equipment with a mini HDMI port. The gold-plated contacts reduce corrosion and help maintain consistent signal quality.

Suitable for

• Connecting cameras, tablets or compact devices with Mini HDMI (Type C) to TVs or monitors with HDMI Type A
• 4K@60Hz video playback and streaming
• 3D content playback and HDCP 2.2 protected sources
• Home AV systems using ARC for audio return

Key specifications

• Brand: MicroConnect
• Model / MPN: HDM19193V2.0C
• EAN: 5704174226048
• HDMI version: 2.0
• Maximum data rate: 18 Gbit/s
• Maximum resolution: 4096 x 2160 (4K) at 60 Hz
• Connectors: HDMI Type A (Standard) to HDMI Type C (Mini)
• Features: 3D, HDCP 2.2, CEC, ARC
• Length: 3 m
• Colour: Black
• Weight: 0.14 kg

How to use

Connect the HDMI Type C (Mini) end to the device with a mini HDMI port (for example a camera or tablet) and plug the HDMI Type A (Standard) end into the TV, monitor or AV receiver. Ensure both devices are powered on and set the display input to the corresponding HDMI port. If using ARC, enable ARC on both the TV and audio device according to their menus. For protected content, confirm the source and display support HDCP 2.2.

Recommendations

For best performance, avoid tight bends and strong tension on the cable, keep connectors free of dust and ensure firmware of connected devices is up to date to support HDMI 2.0 features such as 4K@60Hz and HDCP 2.2.
