Καλώδιο HDMI F/F Vivolink Pro για πλάκα τοίχου

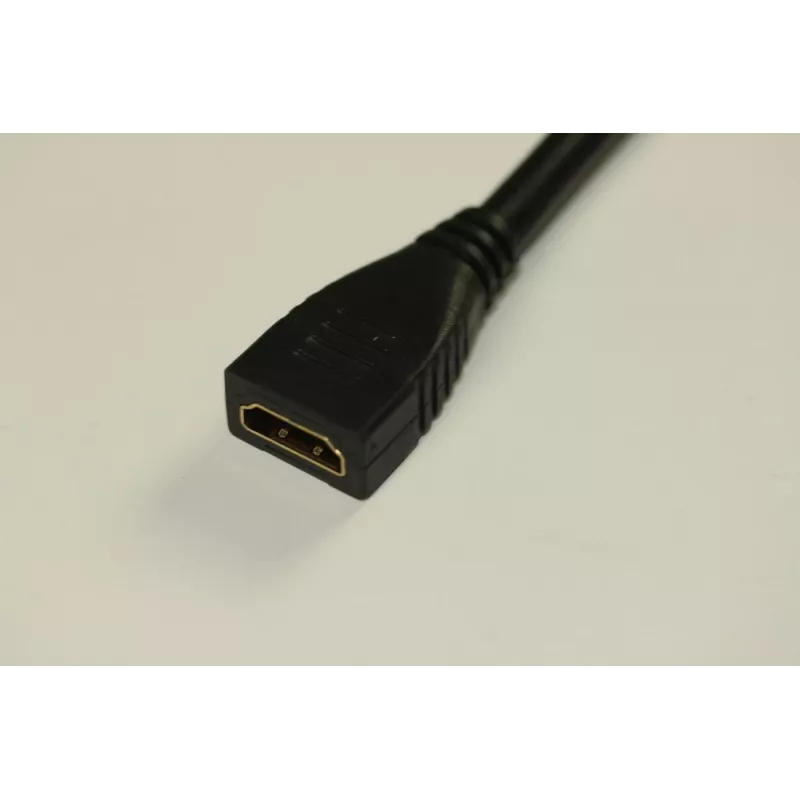

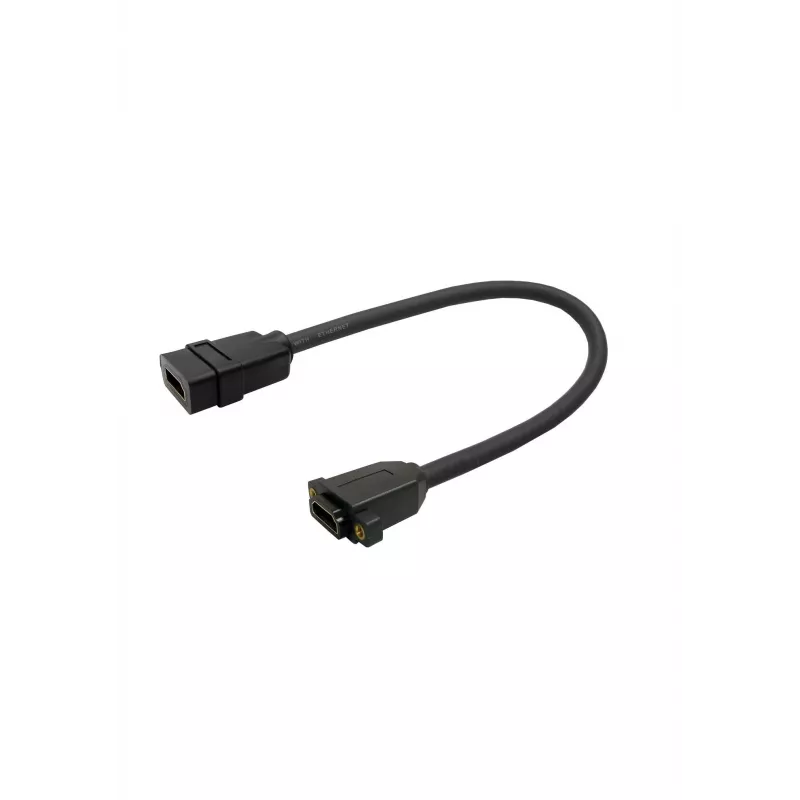

The Vivolink Pro HDMI Cable F/F for wallplate is a 0.25 m adapter cable with two female HDMI Type A connectors designed for professional AV and wallplate installations. It supports HDMI 2.0 features including 3D and 4K×2K (4096×2160) resolution at up to 18 Gbit/s, HDCP and CEC compatibility, and includes Audio Return Channel (ARC). The cable has copper contacts and a compact form factor with a 15 cm section and a mount for wall plate use; the distance between screw holes is 25 mm. Screws are not included; thread size is 3 mm.

Advantages

This Vivolink Pro HDMI F/F cable provides full HDMI 2.0 bandwidth (18 Gbit/s) for high-resolution video and multichannel audio, while the female-to-female configuration and wallplate mount simplify AV panel connections and extensions. Copper contacts improve signal reliability, and the short 0.25 m length reduces excess cable in confined wallbox or panel installations.

Suitable for

• Extending or linking HDMI connections behind wallplates and AV panels
• Professional AV installations requiring 4K@60Hz or 3D support
• Home theatre and conference-room wall-mounted setups

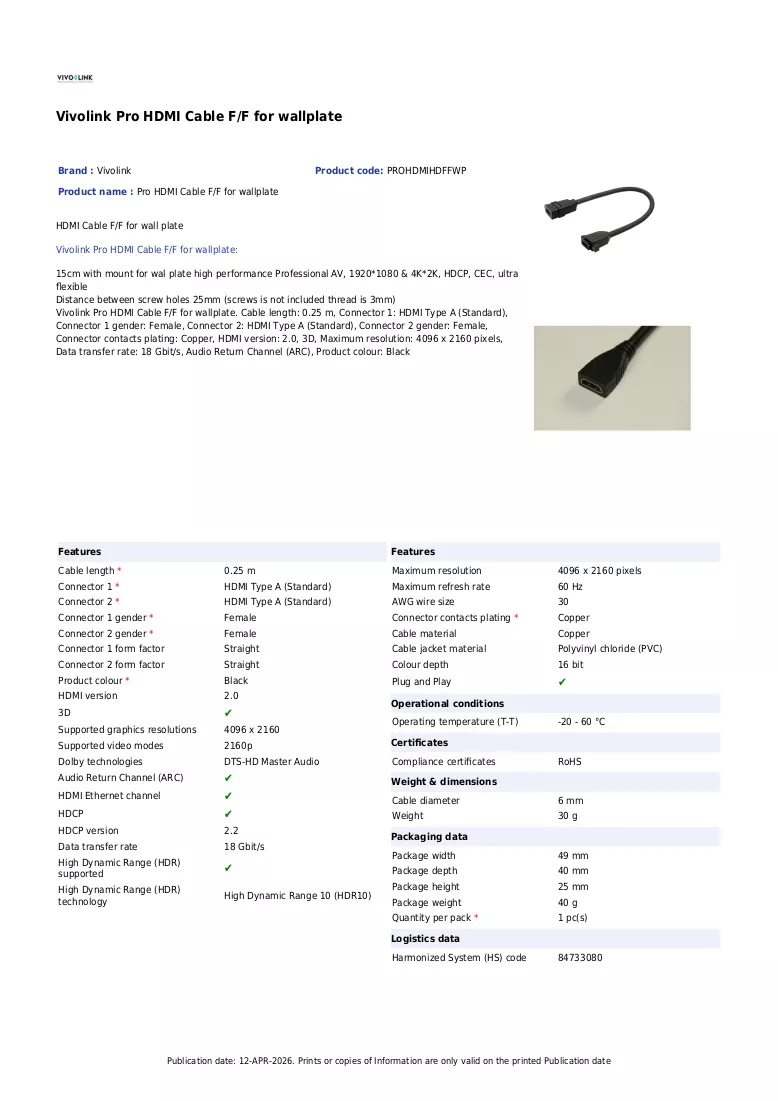

Key specifications

• Cable length: 0.25 m
• Connectors: HDMI Type A (female) — both ends
• Maximum resolution: 4096 × 2160 (4K×2K)
• Data rate: up to 18 Gbit/s (HDMI 2.0)
• Features: 3D, HDCP, CEC, ARC
• Contacts: copper
• Colour: Black

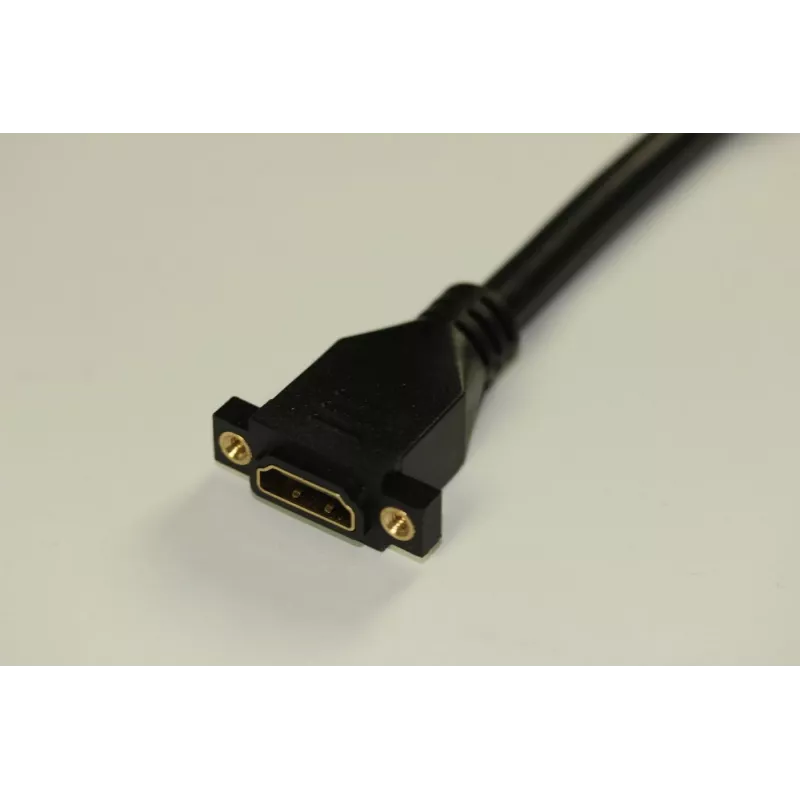

• Wallplate mount length: 15 cm; distance between screw holes: 25 mm; screw thread: 3 mm (screws not included)
• Weight: 0.03 kg

How to use

Install the cable by connecting each female HDMI end to a corresponding male HDMI plug or adapter on the wallplate or device. Use the integrated mount section to secure the cable in the wallbox or panel; align the screw holes at 25 mm apart and fasten with suitable 3 mm threaded screws (not supplied). Ensure connected devices support HDMI 2.0 features if you require 4K or 3D functionality.

Recommendations

For best results, keep cable runs short and avoid tight bends near the connectors. Verify device compatibility for HDCP and CEC features when integrating into professional AV systems.
