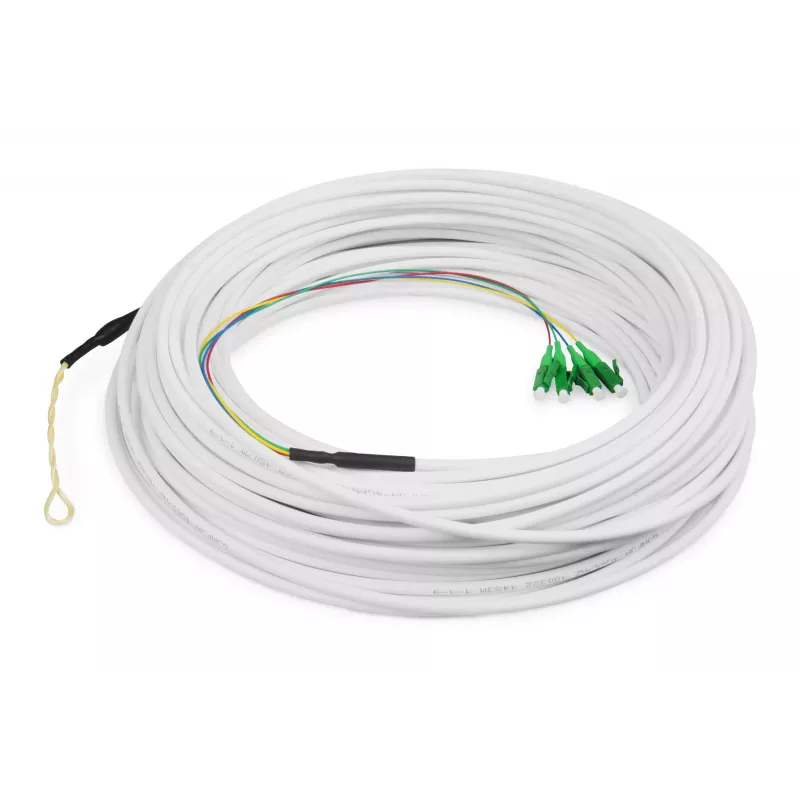

Καλώδιο FTTH Drop Digitus Singlemode 4 ίνες 30 m LC/APC

High-quality fiber cable designed for network level 4 connections, with all four fibers preassembled with LC/APC connectors on one end to simplify installation. The open opposite end is intended to be routed to the building distribution unit or subscriber termination point, and the cable features G.657A2 bend-optimised fibers and a stable pulling loop for duct installation.

Advantages

The pre-assembled LC/APC connectors on the subscriber side significantly reduce installation time and minimize termination work on site. G.657A2 bend-optimised fibers improve reliability in tight routing conditions. A stable pulling loop facilitates safe and controlled installation through ducts, and the open end allows direct routing to the house or floor distribution unit.

Key specifications

• Application: network level 4 (in-building / subscriber connections)
• Connector on one end: LC/APC for all 4 fibers (pre-assembled)
• Other end: open (loose) for routing to distribution unit
• Fiber type: G.657A2 bend-optimised
• Installation aid: stable pulling loop for duct systems

How to use

Route the open end of the cable through the duct or building entry to the distribution unit or subscriber termination point. Use the stable pulling loop to pull the cable without stressing the fibers. Terminate or secure the open end at the distributor; the pre-assembled LC/APC connectors are ready to be plugged into the subscriber equipment or patch panel.

Recommendations

Handle the pre-assembled LC/APC connectors with care to avoid contamination; use appropriate dust caps and clean connectors before mating. Follow standard fiber handling and safety procedures when pulling through ducts and when terminating the open end.
