Kaiser Elektro Πώμα στεγανοποίησης M16 1040-16 γκρι IP68 πολυαμίδιο

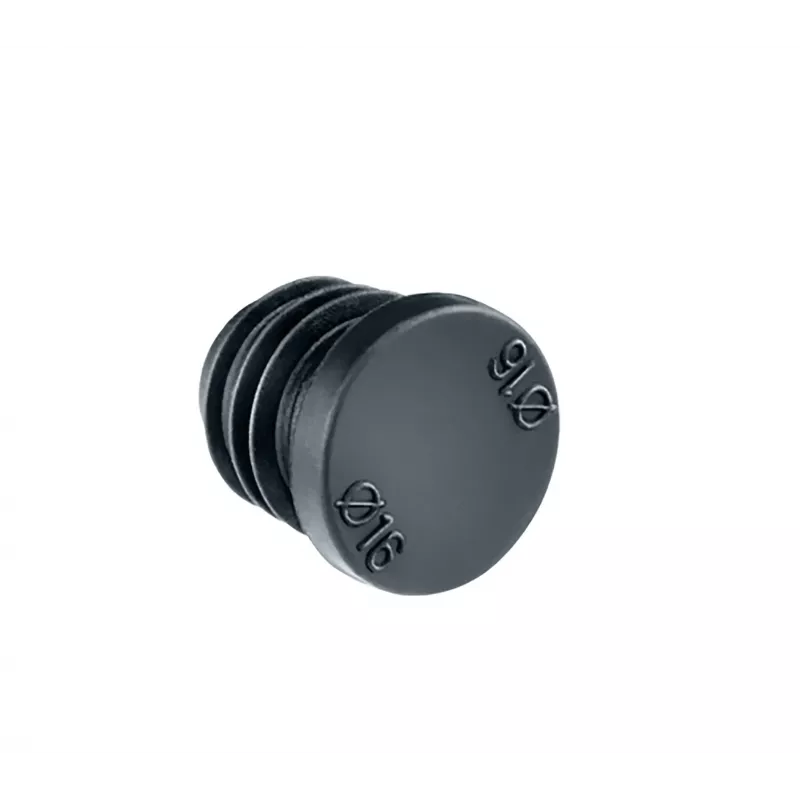

The Kaiser Elektro Dichtstopfen M16 1040-16 is a high-quality sealing plug designed for sealing unused openings in electrical enclosures and junction boxes. Manufactured by Kaiser Elektro, a trusted brand in electrical installation components, this plug ensures reliable protection against dust and water ingress.

Advantages

This sealing plug offers excellent durability and environmental resistance. Made from polyamide (PA), it is halogen-free and UV resistant, ensuring long-lasting performance in demanding conditions. With an IP68 protection rating, it provides complete protection against dust and prolonged immersion in water. The plug is pressure-resistant up to 5 bar, making it suitable for industrial applications.

Suitable for

• Sealing unused cable entries in electrical enclosures
• Junction boxes and control panels
• Indoor and outdoor installations requiring IP68 protection
• Applications where halogen-free materials are required

Key specifications

• Thread Size: M16
• Thread Type: Metric
• Material: Polyamide (PA)
• Color: Grey (RAL 7035)
• Protection Class: IP68
• Halogen-free: Yes
• UV Resistant: Yes
• Flammability Rating: UL94 V-2
• Temperature Range (Static): -40 °C to +100 °C
• Temperature Range (Dynamic): -20 °C to +80 °C
• Wrench Size: 19 mm
• Thread Length: 9 mm
• Overall Height: 15 mm
• Head Diameter: 22 mm
• Pressure Resistance: Up to 5 bar
• Mounting Type: Screw-in

Recommendations

For optimal sealing performance, ensure the thread is clean and apply appropriate torque during installation. This plug is compatible with standard M16 threaded openings.
