Kaiser Elektro κουτί συσκευής για ψευδοροφή για λεπτές επενδύσεις 9068-03

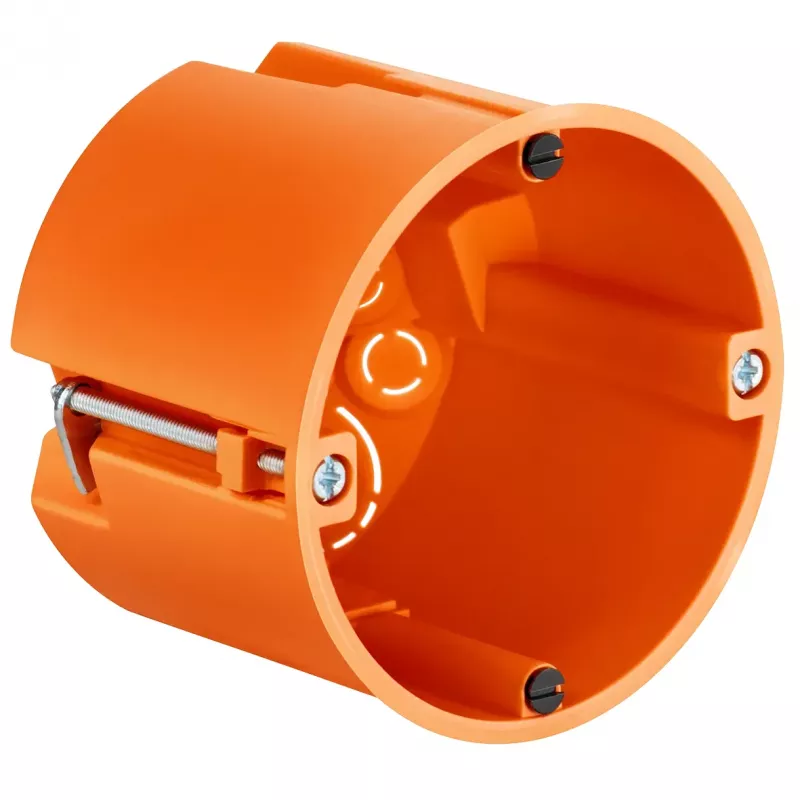

The Kaiser Elektro 9068-03 cavity wall device box is specifically designed for thin panelling and cladding applications. It provides a secure and airtight flush-mounting solution for electrical installations in hollow walls with thicknesses from 7 to 25 mm. Manufactured from high-quality polypropylene (PP), this box is halogen-free and offers excellent durability. With 8 cable entries (6 x M20, 2 x M25) and 2 pipe entries (M20/M25), it provides ample connectivity options. The box features a 60 mm device screw spacing and supports both horizontal and vertical combination. Its IP30 protection class ensures safe operation in dry indoor environments.

Advantages

This cavity wall box offers several key benefits: it is airtight (wind-tight) to prevent drafts and improve energy efficiency; halogen-free material reduces toxic smoke in case of fire; VDE certified for safety and reliability; and the orange colour makes it easily identifiable during installation. The box is also compatible with standard 68 mm installation openings.

Suitable for

• Thin panelling and cladding (wall thickness 7-25 mm)
• Hollow wall installations in residential and commercial buildings
• Mounting switches, sockets, and other electrical devices
• Combination with multiple boxes for multi-gang configurations

Key specifications

• Product Type: Cavity Wall Device Box
• Mounting Type: Flush-mounted for hollow walls
• Wall Thickness Range: 7 - 25 mm
• Installation Opening Diameter: 68 mm
• Internal Depth: 49 mm
• Material: Polypropylene (PP)
• Halogen-free: Yes
• Air-tight: Yes (Wind-tight)
• Cable Entries: 8 (6 x M20, 2 x M25)
• Pipe Entries: 2 (M20/M25)
• Device Screw Spacing: 60 mm
• Number of Device Screws: 2
• Combination Options: Horizontal and vertical
• Protection Class: IP30
• Colour: Orange
• Standard Compliance: VDE

Recommendations

For optimal installation, ensure the wall opening is precisely 68 mm in diameter. Use appropriate cable glands for M20 and M25 entries to maintain airtightness. This box is ideal for use with Kaiser's range of device supports and covers.
