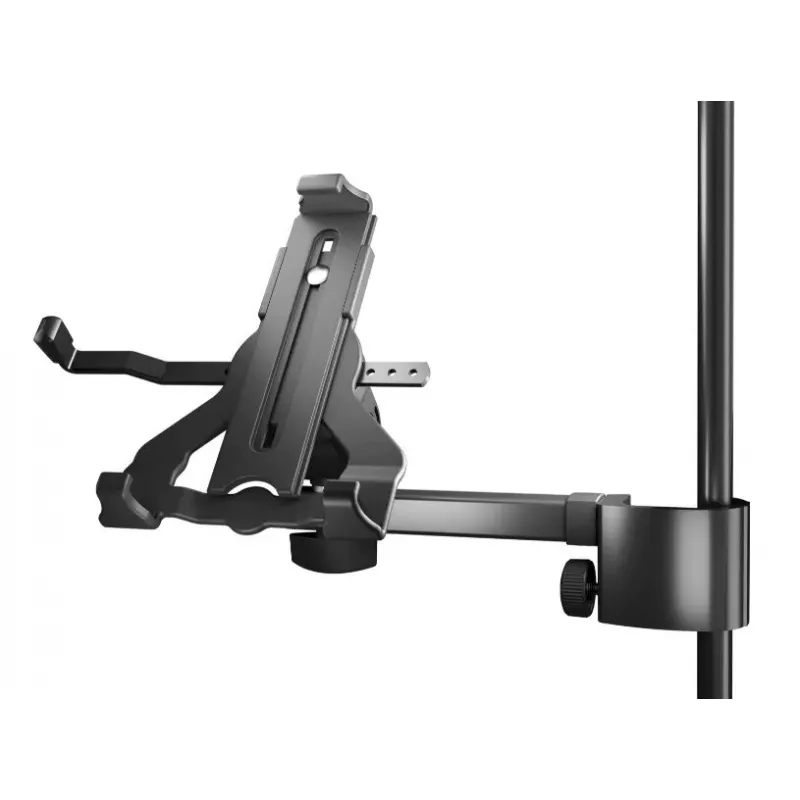

Παθητική βάση König & Meyer 19743-000-55

Universal tablet holder for tablets and UMPCs with an approximate screen size of 10" to 16". The holder is made from bio-based plastic that contains over 50% renewable plant-based raw materials, reducing fossil resource use and CO2 emissions. It has a clamping range of 158–280 mm and accepts tablets with protective covers or cases up to 20 mm thick. The overlapping clamping jaws include rubber pads to secure the device and prevent vibration noise while leaving the device's operating elements accessible. An adjustable mounting bracket with felt padding increases safety in vertical orientation and prevents the tablet from falling out under heavy use. The holder can be swiveled and tilted for individual positioning; swivel tension is adjustable via a clamping screw. Rotation between portrait and landscape is possible while preventing unintended turning. The holding arm with clamping element fits tubes up to 30 mm in diameter. Colour: black. Intended for indoor use. Model: Passive holder König & Meyer 19743-000-55.

Advantages

The König & Meyer 19743-000-55 offers a wide clamping range and compatibility with tablets in protective cases, construction from bio-based plastic for reduced environmental impact, rubber-padded overlapping jaws for vibration-damped secure grip, an adjustable felt-padded bracket for extra safety in vertical use, and flexible swivel/tilt and portrait-landscape rotation with adjustable tension. Its clip-style mount attaches to tubes up to 30 mm diameter and the passive design requires no power.

Suitable for

• Tablets and UMPCs with 10"–16" screens (158–280 mm clamping range)
• Use with protective covers or cases up to 20 mm thickness
• Indoor mounting on stands, music equipment, desks or rigs using tubes up to 30 mm diameter
• Situations requiring portrait or landscape orientation and adjustable viewing angle

Key specifications

• Model: König & Meyer 19743-000-55
• Device type: Tablet / UMPC
• Clamping range: 158–280 mm
• Compatible case thickness: up to 20 mm
• Mount type: Clip mount for tubes up to 30 mm diameter
• Material: Bio-based plastic (≥50% renewable plant-based raw materials)
• Colour: Black
• Weight: 0.774 kg
• Proper use: Indoor

How to use

Attach the holding arm's clamp to a tube or bar with a diameter of up to 30 mm and tighten the clip securely. Insert the tablet into the clamping jaws, ensuring the rubber pads contact the device and that any protective cover does not exceed 20 mm thickness. Adjust tilt and swivel to the desired viewing angle and set the swivel tension with the clamping screw as required. Rotate the holder to switch between portrait and landscape orientations; rotation is designed to prevent unintended turning.

Recommendations

Use the holder indoors on stable tubes or bars and check the clamping screw and clip tightness regularly. Avoid exposure to excessive moisture or outdoor conditions to preserve the bio-based plastic and felt padding. Ensure the tablet's operating elements remain accessible when clamped.
