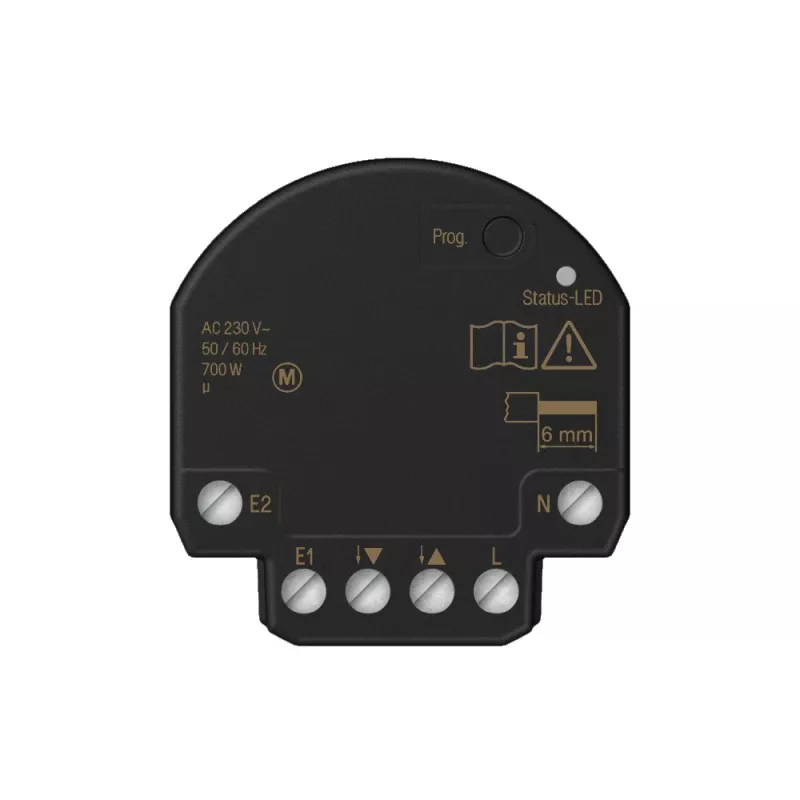

JUNG HOME Ενεργοποιητής ρολού 1 καναλιού Mini με 2 δυαδικές εισόδους, Bluetooth Mesh BTJ1B2U

Managing a single shutter or blind motor often requires a dedicated actuator, but many installations lack space for bulky modules. The JUNG HOME Shutter Actuator 1-Channel Mini solves this by combining a compact flush-mounted design with two binary inputs for local control, all connected via Bluetooth Mesh for seamless integration into your JUNG HOME system.

Who is it for

Electricians and smart home installers looking for a space-saving solution to automate a single AC shutter or blind motor, while also providing manual switching options through the binary inputs. Ideal for retrofits in standard device boxes where room is limited.

Main features

• 1-channel shutter/blind actuator for AC motors up to 3 A (cos φ = 0.6)
• 2 binary inputs for connecting conventional switches or push-buttons
• Bluetooth Mesh communication for reliable, low-power networking
• Flush-mounted in standard device box (mini form factor)
• Supports up/down, stop, slat adjustment, scene control, time programs, and astro function
• Manual operation via JUNG HOME app or local switches
• Overload and short-circuit protection
• Low standby power consumption (< 0.5 W)

Specifications

• Supply voltage: 230 V AC, 50/60 Hz
• Maximum switching current: 3 A (cos φ = 0.6)
• Connection type: screw terminals
• Operating temperature: -5 to +45 °C
• Protection class: IP20
• Standby power consumption: < 0.5 W
• Mounting type: flush-mounted
• Communication protocol: Bluetooth Mesh
• System compatibility: JUNG HOME

Tips

For optimal performance, ensure the actuator is installed in a deep enough device box to accommodate wiring. Use the binary inputs to connect existing wall switches for manual override without needing additional smart controls.
